Rear Seat Belt Buckle Replacement (Seat Belts)

Make

Vauxhall

Model

Astra J

Section

Seat Belts › Repair Instructions › Rear Seat Belt Buckle Replacement

Safety and SecurityRear Seat Belt Buckle Replacement

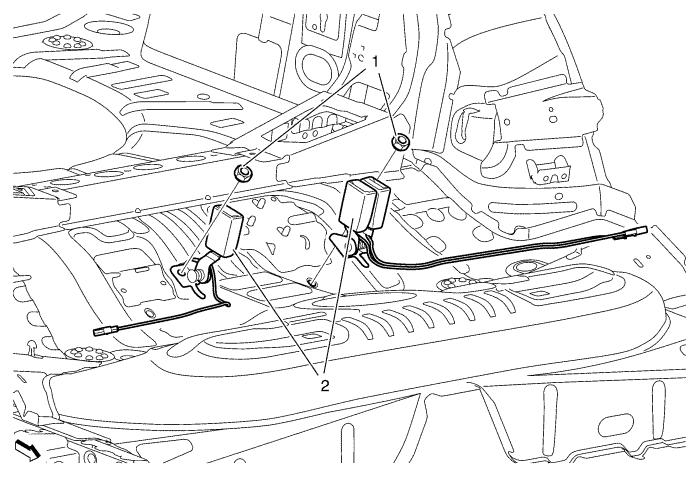

Rear Seat Belt Buckle Replacement Callout Component Name Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . 1 Rear Seat Belt Buckle Bracket Fastener Caution: Refer to Fastener Caution . Tighten 45 N·m (33 lb ft) 2 Rear Seat Belt Buckle Procedure Disconnect the electrical connector.
