Preliminary Procedures

1. Remove the steering wheel. Refer to Steering Wheel Replacement .
2. Remove the upper trim cover and the lower trim cover from the steering column. Refer to Steering Column Lower Trim Cover Replacement .

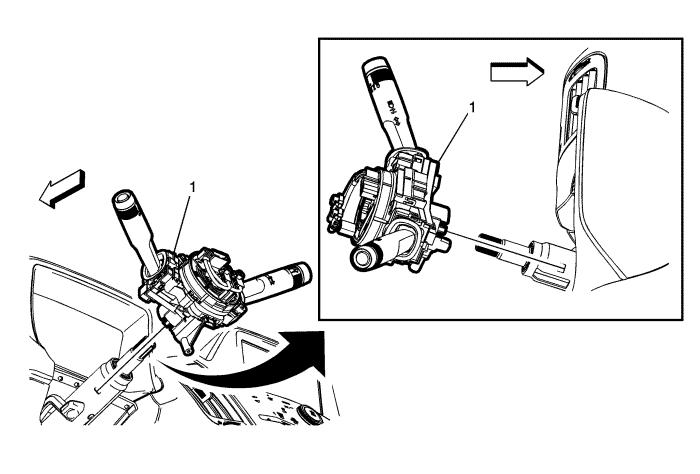

1

Turn Signal Switch Bracket

Procedure

1. Disconnect any electrical connectors as necessary.
2. Release the 2 tabs in order to release the direction indicator switch bracket from the steering column.
3. Transfer any parts as necessary. Refer to the following procedures:

•	Indicator Switch Replacement

•	Windscreen Wiper and Washer Switch Replacement

•	Steering Wheel Airbag Coil Replacement

•	Steering Angle Sensor Replacement
