Astra J

Electronic Suspension Control Module Bracket Replacement

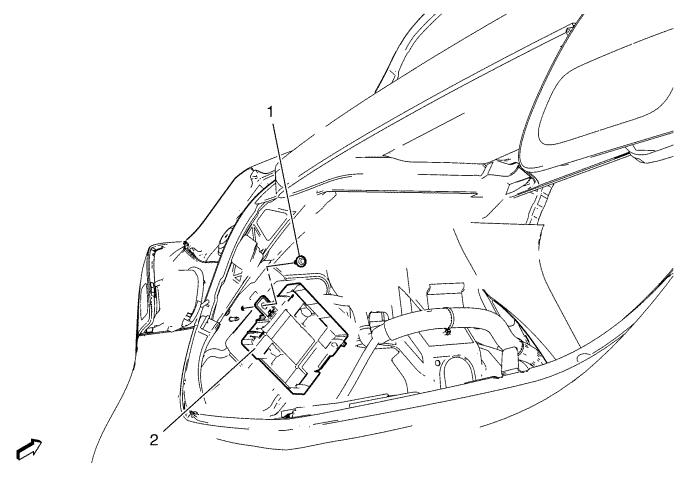

2190409




Callout
Component Name

Preliminary Procedures

Remove electronic suspension control module. Refer to Electronic Suspension Control Module Replacement .

1
Electronic Suspension Control Module Bracket Bolt

Caution: Refer to Fastener Caution .

Tighten:
9 N·m (80 lb in)

2
Electronic Suspension Control Module Bracket

Procedure

Remove wiring harness from hooks on bracket rear side.
