Vehicle Identification Plate, Replace (Adhesive Foiles)

Vehicle Identification Plate, Replace

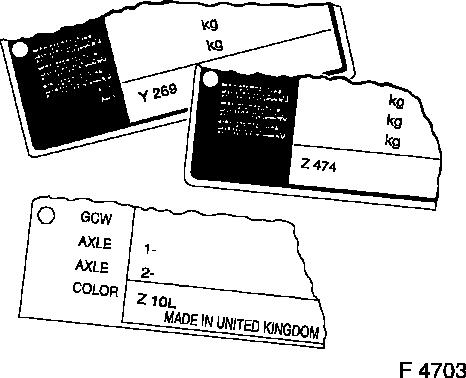

Notice:  The vehicle exterior colour is indicated by a 3-digit colour number or a 2-digit colour code with the extension "L" (internal code), depending on the production site.   With 3-digit codes:   Letter "Y"   = One-coat painting   Letter "Z"   = Two-coat painting   3-digit No.   = Colour number     Example: 474 = synthetic resin coat, colour: Casablanca white   2-digit codes:   General synthetic resin coat   2-digit No. = colour code   Example: 10L = colour: Casablanca white   Vehicles shall be painted as usual in conformity with the known paint systems found in the current "Paint Repair Systems Brochure" KTA-1934-GB, 2/97 version.

Vehicle Identification Plate, Replace (Continued)

  Remove, Disconnect

For cemented version:

Heat identification plate with hot air dryer and remove. Remove adhesive residue (washing benzene or silicon remover).

For riveted version:

Drill off rivets.

  Install, Connect

For cemented version:

Surface must be dry and free from dust and grease.

Position identification plate and affix so that it is bubble-free.

Vehicle Identification Plate, Replace (Continued)

  Important!

Only process adhesive foil at temperatures exceeding 18 ° C.

  Install, Connect

For riveted version:

Position identification plate and rivet.
