Body EquipmentSlider, Replace

Slider, Replace

Remove, Disconnect

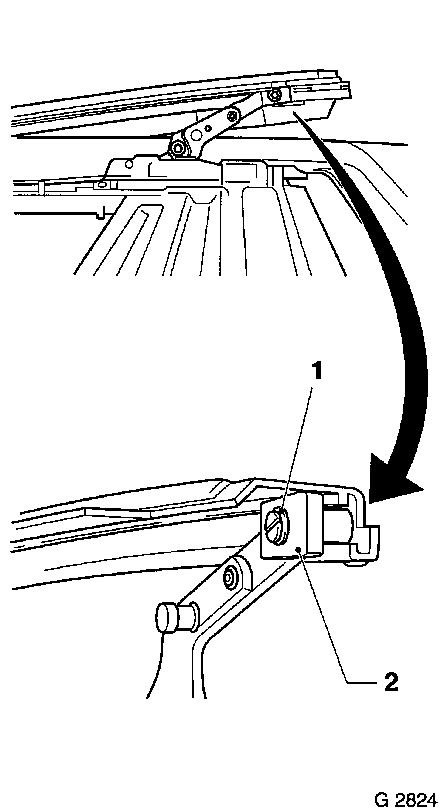

Remove shell - see operation "Shell, Replace". Remove retaining washer (1) for slider (2) using a small screwdriver. Remove slider from fastening pin.

Install, Connect

Push slider onto pin and fasten with locking washer. Install shell - see operation "Shell, Replace".
