Special Service Tools (Steering Linkage)

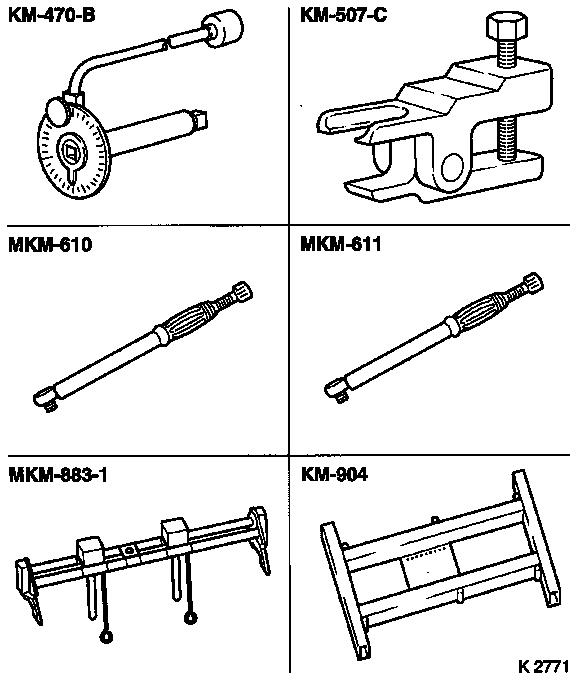

KM-470-B

Angular Torque Wrench

Tightening of bolted connections with additional angle

KM-507-C

Remover

Pressing tie rod end from steering knuckle

MKM-610

Torque Wrench – 1/2" drive, range: 30 - 130 Nm

Tightening of bolted connections to torque

MKM-611

Torque Wrench – 3/8" drive, range: 10 - 60 Nm

Tightening of bolted connections to torque

MKM-883-1

Engine Bridge

Holding/lowering/lifting engine for removal/installation of front axle body

KM-904

Base Frame

To remove and install front axle body in conjunction with KM-6168 and KM-6169

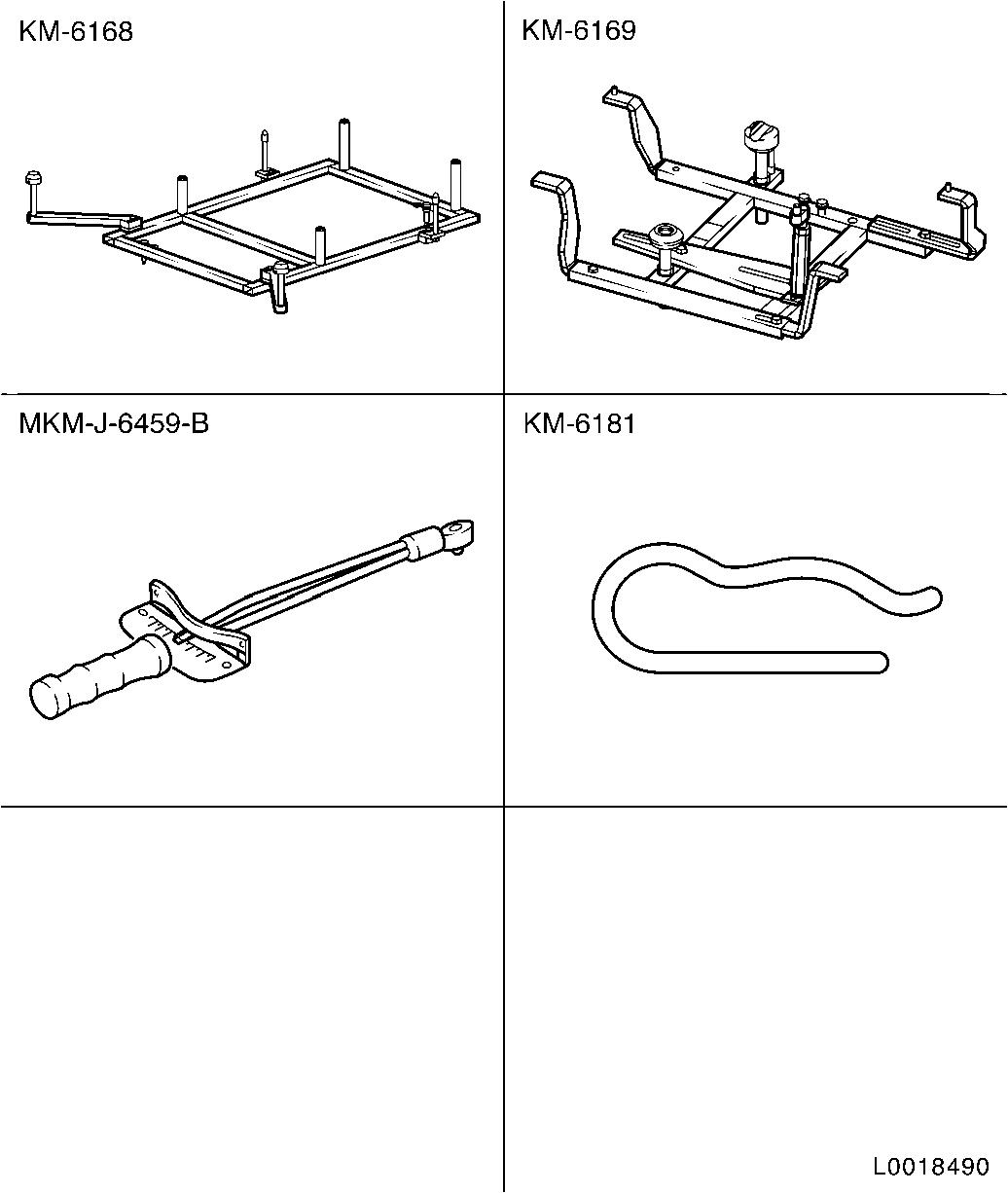

KM-6168

Centring Equipment

To remove, install and centre front axle body in conjunction with KM-904

KM-6169

Engine/Transmission Mount

Positioning of the engine/transmission unit for removal and installation of the front axle body in conjunction with KM-904 and KM-6168

KM-6181

Spring Pin

Fastening of steering intermediate shaft length for removal and installation of steering intermediate shaft or front axle body

MKM-J-6459-B

Torque Wrench – 3/8" drive, range: 0 - 11 Nm

Tightening of bolted connections to torque

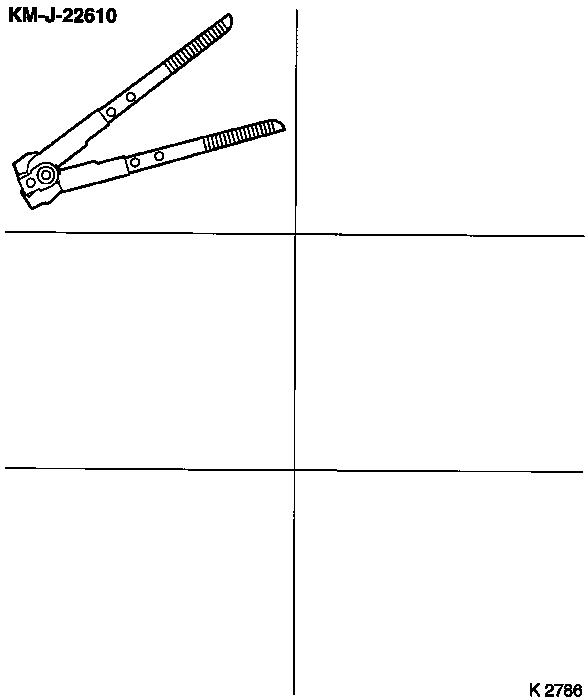

KM-J-22610

Clamp Pliers

To clamp boot retaining straps on steering gear side

KM-6247

Tie rod remover/installer

Removal and installation of the tie rod from/to steering gear rack

To detach fastening nuts of tie rod ends
