Water Gutter, Remove and Install (Sliding Roof)

Make

Vauxhall

Model

Omega B

Section

Sliding Roof › Repair Instructions › Water Gutter, Remove and Install

Body EquipmentWater Gutter, Remove and Install

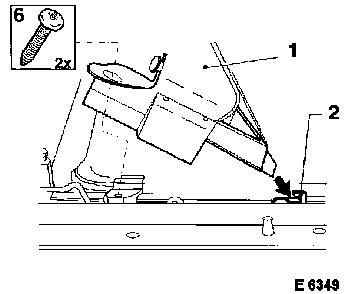

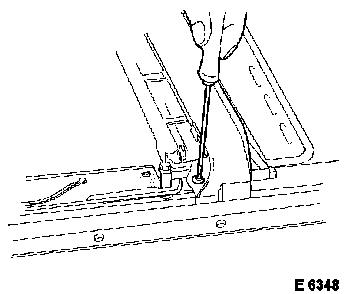

Water Gutter, Remove and Install   Remove Glass cover – see operation "Glass Cover, Remove and Install". Push back sun protection half way. Water gutter from water gutter guide Water gutter from roof aperture   Install Place water gutter (1) at a slant in water gutter guide, hold at stop (2) and fasten. Glass cover   Adjust Glass cover

Related Literature Units - - -

04 Body & interior
