General (Illustration): Repair Instructions

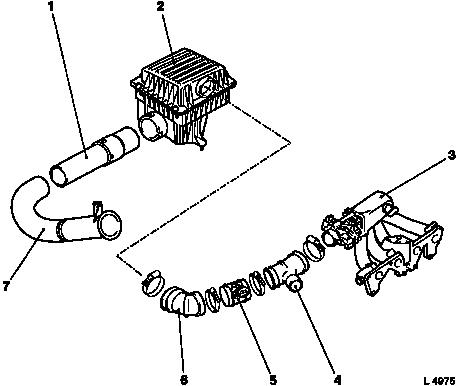

Illustration

1. Air guide hose 2. Air cleaner housing 3. Intake manifold 4. Air intake hose 5. Hot film mass air flowmeter 6. Air intake hose 7. Air intake manifold

Note:   Any possible contamination (grease, oil, etc.) must be cleaned from hoses and connections prior to assembly.

Strict observance of a torque of 3.5 Nm / 2.6 lbf. ft. must be ensured when tightening the hose clamps.

Caution

Sealing of the intake system and thereby operational safety can only be ensured if the hose clamps are correctly tightened to the specified tightening torque.
