Vauxhall Omega B12 · Steering
12 · Steering & suspension

Steering Linkage (Illustration, Steering): Repair Instructions

Make
Vauxhall
Model
Omega B
Section
Steering Linkage › Repair Instructions › Illustration, Steering
SteeringIllustration, Steering

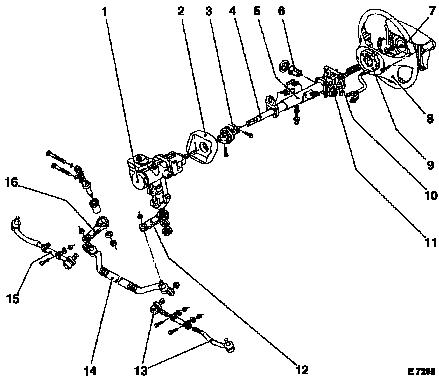

Illustration, Steering

1. Steering gear
2. Rubber collar
3. Disc joint
4. Steering shaft
5. Steering column
6. Steering and ignition lock
7. Airbag unit
8. Steering gear
9. Contact unit
10. Switch housing
11. Contact part
12. Steering arm
13. Tie rod ends
14. Centre tie rod
15. Outer tie rod
16. Idler

Object Number: 2389027 Size: DEFAULT
