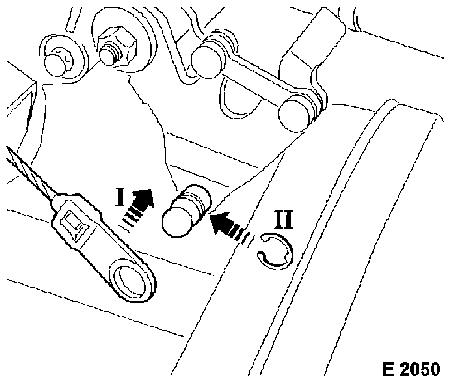

Remove, Disconnect Remove retaining cotter pin (1). Lever off accelerator Bowden cable from ball journal (2). Illustration 3:
I Lever off retaining ring
II Remove actuator cable from ball journal pin.
|
|

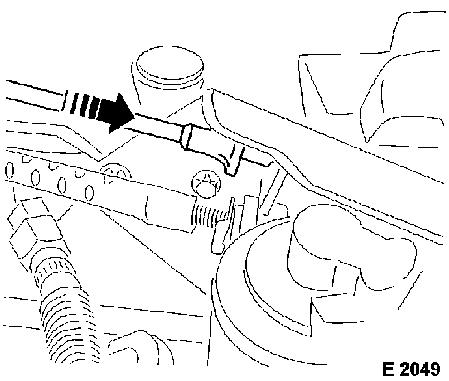

Remove, Disconnect Remove guide tube from bracket by pressing back lugs. |
|

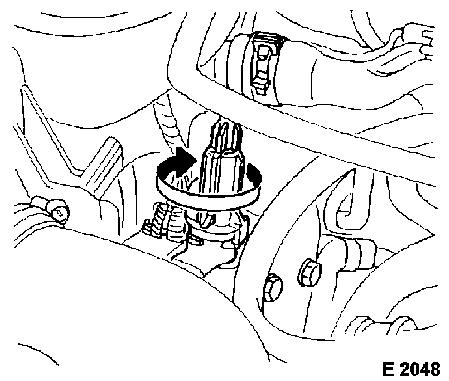

Detach guide tube from actuator with 1/4 turn. |
|
Remove, Disconnect Detach Bowden cable nipple from actuator. |
|

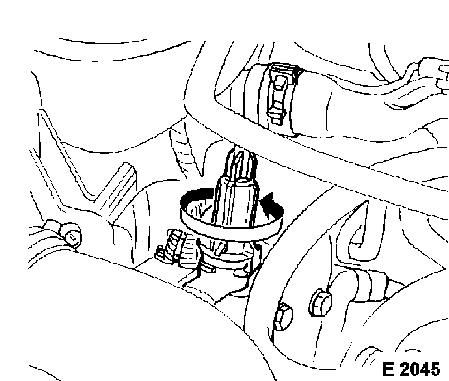

Install, Connect Attach Bowden cable nipple to actuator. Attach guide tube to actuator with a 1/4 turn to the right. |
|
Install, Connect Engage guide tube in bracket. |
|
Attach actuator cable to ball journal pin (I) and secure with retaining ring (II). Press accelerator Bowden cable onto ball journal and secure with retaining cotter pin. |
|
|
