Body EquipmentSurvey of Most Frequently Used Fastening Elements
Survey of Most Frequently Used Fastening Elements
|
1 |
Inner torx oval head bolt |
|
2 |
Inner torx flat bolt |
|
3 |
Cheese-head screw with inner hex (screwed-on washer) |
|
4 |
Hex bolt |
|
5 |
Countersunk screw with inner torx |
|
6 |
Oval-head screw with crossed recess |
|
7 |
Oval-head screw with crossed recess |
|
8 |
Flat-head screw with inner torx |
|
9 |
Hex nut (metal) |
|
10 |
Special nut (plastic) |
|
11 |
Blind rivet |
|
12 |
Plug (herringbone profile) |
|
|
|
13 |
Clips |
|
14 |
Plugs (conical, round, coloured) |
|
15 |
Clips (square, light) |
|
16 |
Snap button (black) |
|
17 |
Cover cap (round, coloured) |
|
18 |
Spring clip (light) |
|
19 |
Spring clip (dark) |
|
20 |
Spring clamp |
|
21 |
Stop nut |
|
22 |
Hex nut with screwed-on washer |
|
23 |
Flat-head screw with cross recess |
|
24 |
Torx bolt with collar |
|
|
|
25 |
Cheese head bolt with inner torx (with rolled-in washer) |
|
26 |
Hex bolt with screwed-on washer |
|
27 |
Hex bolt with screwed-on washer |
|
28 |
Hex bolt with screwed-on washer |
|
29 |
Oval-head screw with crossed recess |
|
30 |
Hex nut with washer |
|
31 |
Special plastic nut without thread |
|
32 |
Clips with screw-in fastening |
|
33 |
Clips |
|
34 |
Body-bound rivet, thick |
|
35 |
Body-bound rivet, thin |
|
36 |
Fastening clip |
|
|
|
37 |
Fastening clip |
|
38 |
Body-bound rivet, long |
|
39 |
Door pin |
|
40 |
Hollow pin |
|
41 |
Collar bolt (hex) |
|
42 |
Snap button nut with inner torx |
|
43 |
Rivet nut |
|
44 |
Fastening plugs |
|
45 |
Hex bolt |
|
46 |
Cap nut (plastic) |
|
47 |
Plastic screw hook |
|
48 |
Plastic nut |
|
|
|
49 |
Fastening ring (seat cushions) |
|
50 |
Hex bolt with screwed-on washer |
|
51 |
Torx bolt with screwed-on washer |
|
52 |
Torx bolt with screwed-on washer |
|
53 |
Torx bolt with screwed-on washer |
|
54 |
Inner torx oval head bolt |
|
55 |
Clip (round, light) |
|
56 |
Clip (extended) |
|
57 |
Cheese-head screw, torx |
|
58 |
Oval-head screw, torx |
|
59 |
Cheese-head screw, torx (steering crossmember) |
|
60 |
Washer (steering crossmember) |
|
|
|
61 |
Tolerance screw (steering crossmember) |
|
62 |
Spring clamp |
|
63 |
Weld stud |
|
64 |
Cotter pin |
|
65 |
Square expanding rivet |
|
66 |
Round expanding rivet |
|
67 |
Fastening plugs |
|
68 |
Fastening plugs (insertion screw) |
|
69 |
Fastening plugs |
|
70 |
Nut |
|
71 |
Fastening plugs |
|
72 |
Spring nut |
|
|
|
73 |
Pan head screw (cross recess) |
|
74 |
Bolt |
|
75 |
Self-tapping screw (with washer) |
|
76 |
Clips |
|
77 |
Clips |
|
78 |
Sheet-metal clamp (lead routing) |
|
79 |
Sheet-metal clamp (lead routing) |
|
80 |
Sheet-metal clamp (lead routing) |
|

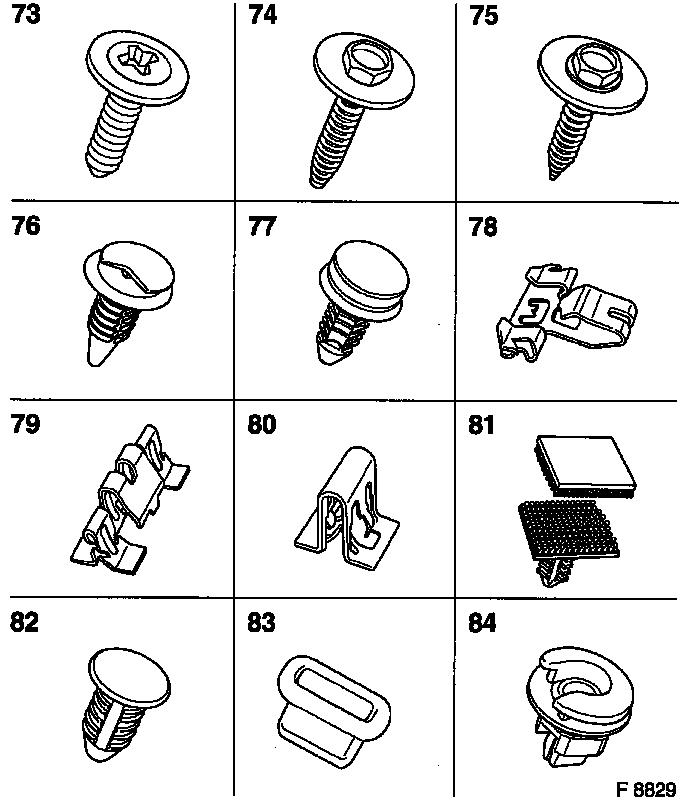

81 |
Velcro fastening |
|
82 |
Plugs (plastic) |
|
83 |
Plugs (drainage) |
|
84 |
Bracket (plastic) |
|
|
|
85 |
Pan head screw (cross recess) |
|
86 |
Hex-headed bolt (with washer) |
|
87 |
Pan head screw (cross recess) |
|
88 |
Fillister head screw (cross recess, washer) |
|
89 |
Hex-headed bolt (long) |
|
90 |
Cheese-head screw (long, inner torx) |
|
91 |
Cheese head screw (short, inner torx) |
|
92 |
Collar nut |
|
93 |
Clips (panelling, inner) |
|
94 |
Clips (cable) |
|
95 |
Fastening plugs (narrow) |
|
96 |
Fastening plugs (wide) |
|
|
|
97 |
Collar bolt (washer) |
|
98 |
Hex-headed bolt (washer) |
|
99 |
Nut (plastic) - rear quarter window fastening |
|
100 |
Body-bound rivet |
|
101 |
Torx bolt with hex |
|
102 |
Philips screw (fillister head) |
|
103 |
Hex-headed bolt (cross recess) |
|
104 |
Round expanding rivet |
|
105 |
Torx bolt |
|
106 |
Spring clamp |
|
107 |
Rivet nut (Opel Fix) |
|
108 |
Blind rivet nut |
|
|
|
109 |
Metal clamp |
|
110 |
Plastic clip |
|
111 |
Torx bolt |
|
112 |
Clip |
|
113 |
Plastic spring nut |
|
114 |
Washer |
|
115 |
Fastening bolt |
|
|
|
|
