Body EquipmentLateral Guide, Replace



Lateral Guide, Replace

Object Number: 616191 Size: DEFAULT  Remove, Disconnect

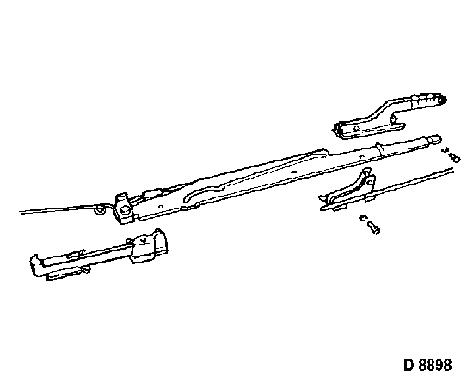

Control unit - see operation "Control Unit, Remove and Install". Water deflector panel, drive, side guide with actuation cable, detach catch lever guide (water deflector panel) (1), guide with lock lever (3) and actuation cable guide (2).

Object Number: 616192 Size: DEFAULT  Install, Connect

Object Number: 2384929 Size: DEFAULT

Catch lever guide (water deflector panel), attach guide with lock lever and actuation cable guide to side guide. Slide side guide with actuation cable into guide rail.

Object Number: 616198 Size: DEFAULT  Adjust

Basic adjustment of both actuation cables - see operation "Both Actuation Cables, Basic Adjustment". Adjust drive.

Object Number: 616192 Size: DEFAULT  Install, Connect

Water deflector panel, drive, control unit.

Object Number: 2384930 Size: DEFAULT
