SteeringSteering - Steering wheel squeaking
Field Remedy: 1227
| Subject: |
Steering - Steering wheel squeaking |
| Models: |
Engines: |
Option: |
| Vectra-B 96...98,Zafira 99,Astra-G
98...99 |
All,All,All |
|
| Complaint: |
Loud squeaking noise, when turning steering
wheel. |
| Cause: |
Airbag contact locking latch is chafing the
box of the airbag contact unit. |
| Production: |
As of following VIN No. the problem has been
rectified in production: Vectra: W7152000 and W1285447, Astra und
Zafira: X2 25 8000 - X2 26 9000, X5 25 9615 - X5 27 4000. |
Remedy:

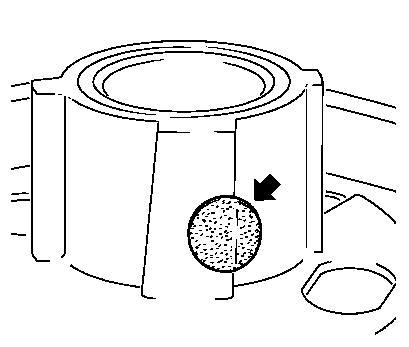

In case of complaint, attach a felt-dot(arrow) on the ramp of the
steering hub.
Remove the steering wherel-see Service instruction "Remove and refit
the steering wheel(vehicle with airbag till MY`98).
Attach the felt-dot(arrow).
Thickness: 0,5-1mm
Diameter: 8-16mm
Install the steering wheel.
Labour Time: TC: Hours:
T 8122 70 Install felt-dot on the 90
ramp of the steering hub.
Vectra 0,5hrs
Astra 0,4hrs
Zafira 0,4hrs
| FunctionalGroup: |
M - Steering |
| Complaint Group: |
14 - Noises or Vibrations |
| Trouble Code: |
Non |
|
|
12 Steering & suspension
