Note:

For headlight checking and adjustment specifications

=> Maintenance.

Right headlight (adjustment screws for left headlight are a mirror image):

•      1 -     Lateral adjustment
•      2 -     Height adjustment

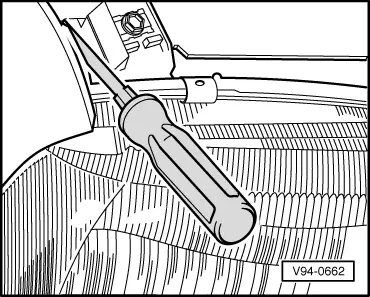

→ To adjust the lateral and height setting turn the respective adjusting wheel with a screwdriver through the slot above the headlight.
