Assembly overview: Headlight

Make
Volkswagen
Model
Golf Mk3
Section
Lights, lamps, switches outside › Headlight › Assembly overview: Headlight
Vehicle electricsAssembly overview: Headlight
Headlight
Assembly overview: Headlight
Warning!
Always disconnect the battery earth strap before working on the electrical system.

Note:

After any measures which could affect the headlight setting, the headlight must be adjusted.

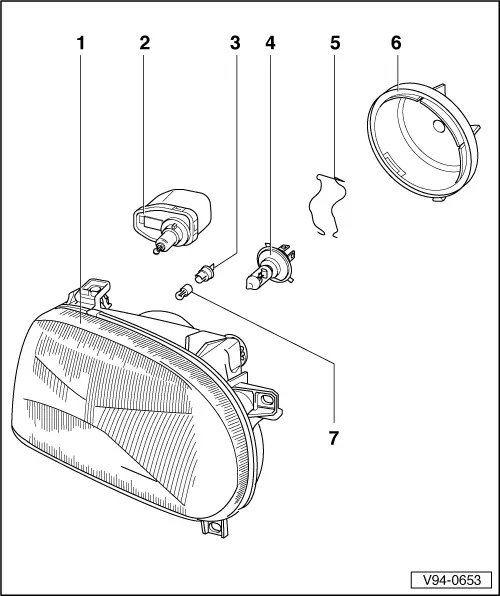

  • Headlight
    • ● Adjusting headlight =>Page 94-3
    • ● Removing and installing=>Page 94-4

V94-0653
  • Headlight beam range control positioning motor
    • ● Removing and installing     =>Page 94-6
  • Side light bulb holder
  • Twin filament bulb for main and dipped beams
    • Bulb H4 12 V, 60 W/55 W
    • ● Removing and installing =>Page 94-4
  • Spring clip
  • Cap
  • Side light bulb
    • Bulb 12 V, 5 W
