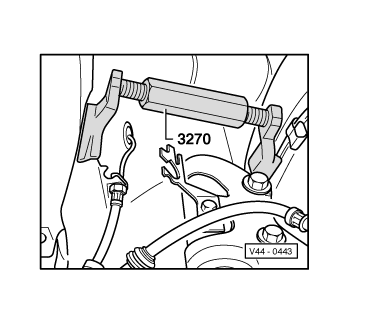

| Tensioning device -3270- install as shown in illustration and pre-tension slightly. |
| –
| Loosen suspension strut/wheel bearing housing connection. |
| –
| Adjust camber by turning spindle to specified settings. |
| –
| Tighten suspension strut/wheel bearing housing connection. |
| –
| Check camber and repeat adjustment if necessary. |
Note | t
| Slight cant of tool is permitted. |
| t
| Do not move steering with tool in place! |
| t
| Always check running gear for damage before adjusting camber (visual check). Renew damaged parts. |
| t
| The standard installation of bolts with a shaft diameter of 11 mm Ø means that the bolts need not be changed before adjusting camber. |
|
|
|
