Control Assembly: Description and Operation
NOTE: The A/C button must be depressed (i.e. "A/C off" will be lit). If auto is selected, the A/C button must be released (on). In this position, the
compressor is switched in and out automatically.

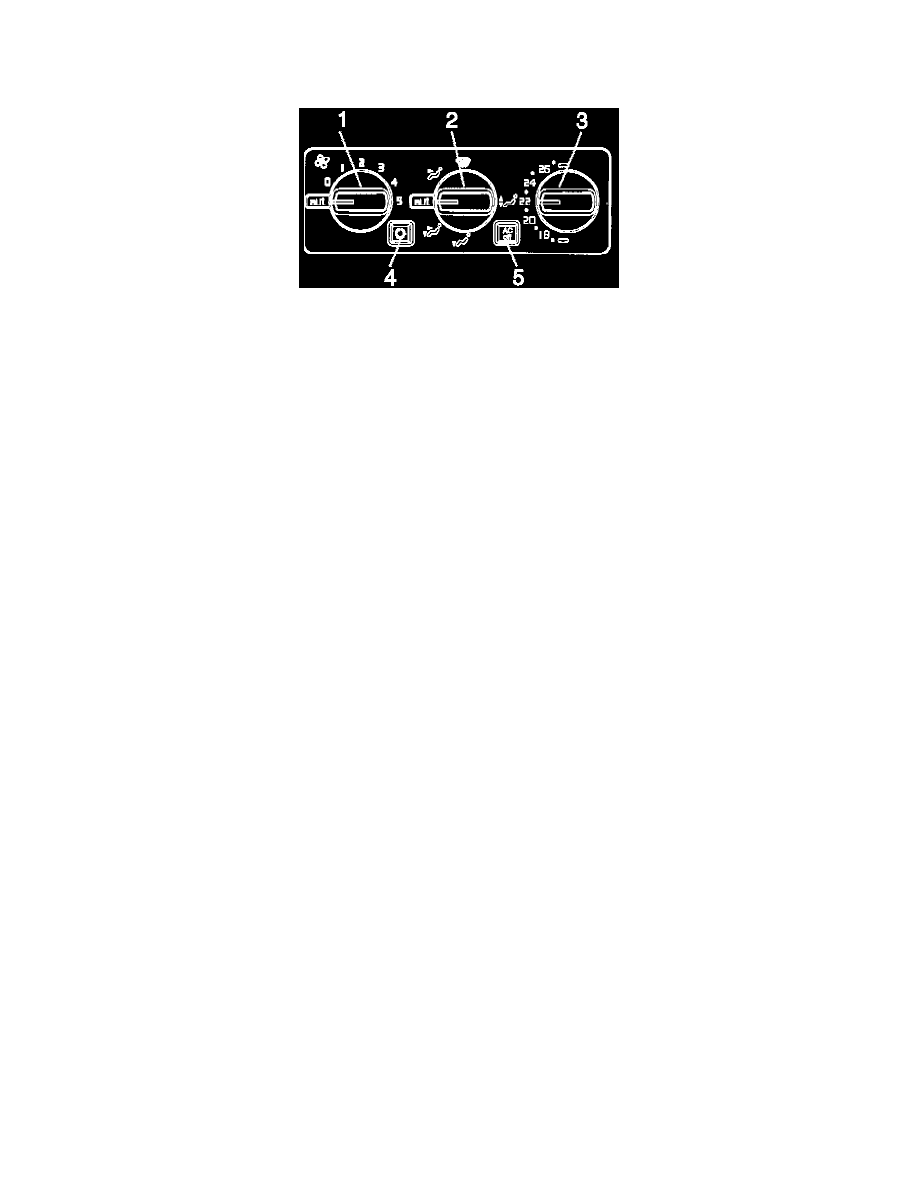

The ECC Control Panel:
Consists of the following components:
1. Blower, automatic or manual
2. Air distribution, automatic or manual 3. Temperature control
3. Recirculation in all positions except defroster
4. A/C on/off + fault indication + 23 DTCs (diagnostic trouble codes)
-
Afford wide latitude for individual adjustment of the interior climate. In addition to fully automatic operation, all controls can be operated
manually.
-
The A/C unit can be switched off with the A/C button. (5).
-
Recirculation can be selected in all positions except defroster. During recirculation, 90% of the air is drawn from the interior and 10% from
outside.
-
Features in built fault indication which is displayed by flashing of the A/C button light. Using a three-digit code, 23 different types of DTC
(diagnostic trouble codes) can be displayed.
