V50 L5-2.4L VIN 39 B5244S7 (2005)
See the illustration.
At the same time pull the cable carefully backwards.
Assembling primary lock
Check that the cable terminal is undamaged.
Press the cable terminal into the housing.
Check that the seal is correctly positioned and that the cable terminal is properly locked by pulling carefully on the cable.
Assembling secondary lock
Press the secondary lock into place.
Connector Type 1
Connector type 1
951 2636 Terminal removal tool See: Tools and Equipment/951 2636 Terminal Removal Tool
951 2637 Terminal removal tool See: Tools and Equipment/951 2637 Terminal Removal Tool
Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the
essential information in the illustrations is always correct.
Disassembling secondary lock

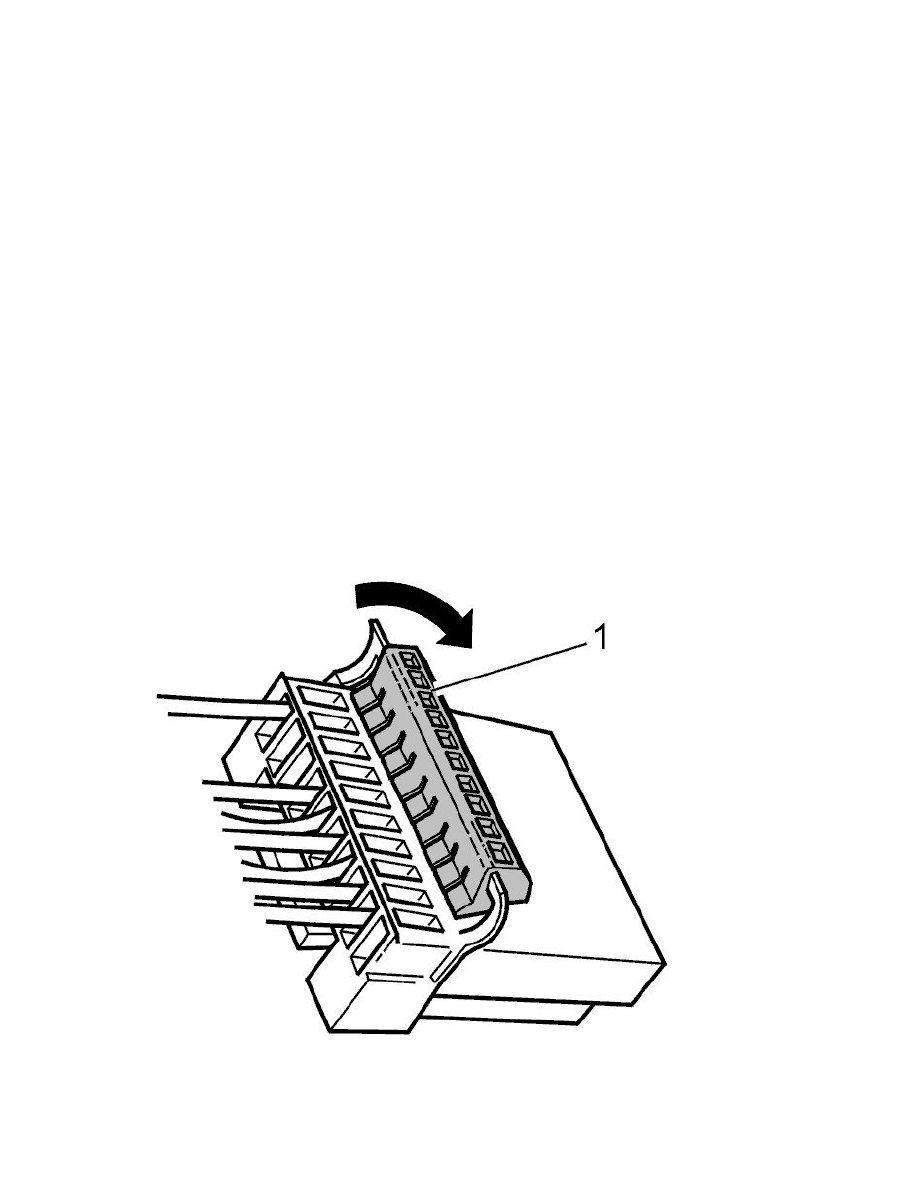

Fold up the secondary lock (1), as illustrated. Use a radio screwdriver.
Disassembling primary lock
