V50 L5-2.4L VIN 39 B5244S7 (2005)

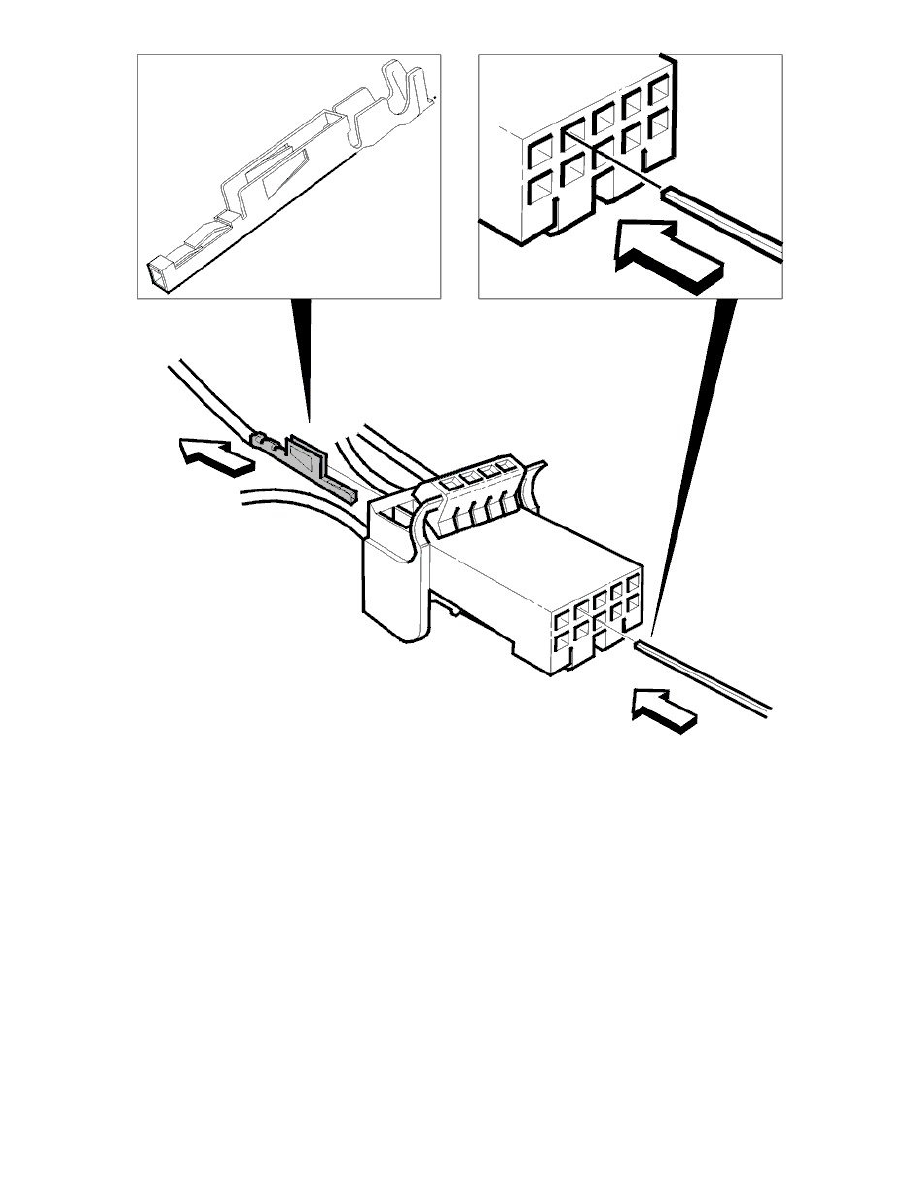

Use tool: 951 2636 Terminal removal tool See: Tools and Equipment/951 2636 Terminal Removal Tool and 951 2637 Terminal removal tool See:
Tools and Equipment/951 2637 Terminal Removal Tool to remove the primary lock, see graphic.
At the same time pull the cable carefully backwards.
Assembling primary lock
Check that the catches for the cable terminal are undamaged.
Press the cable terminal into the housing.
Check that the cable terminal is properly locked by pulling carefully on the cable.
Assembling secondary lock
Press the secondary lock into place.
Connector Type 2
Connector type 2
