volvo Workshop Repair Guides


V50 L5-2.4L VIN 39 B5244S7 (2005)

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1070

Page 71
background image

Note! There is one fiber for the input and one for the output signal. If they are mixed up the system will not work.

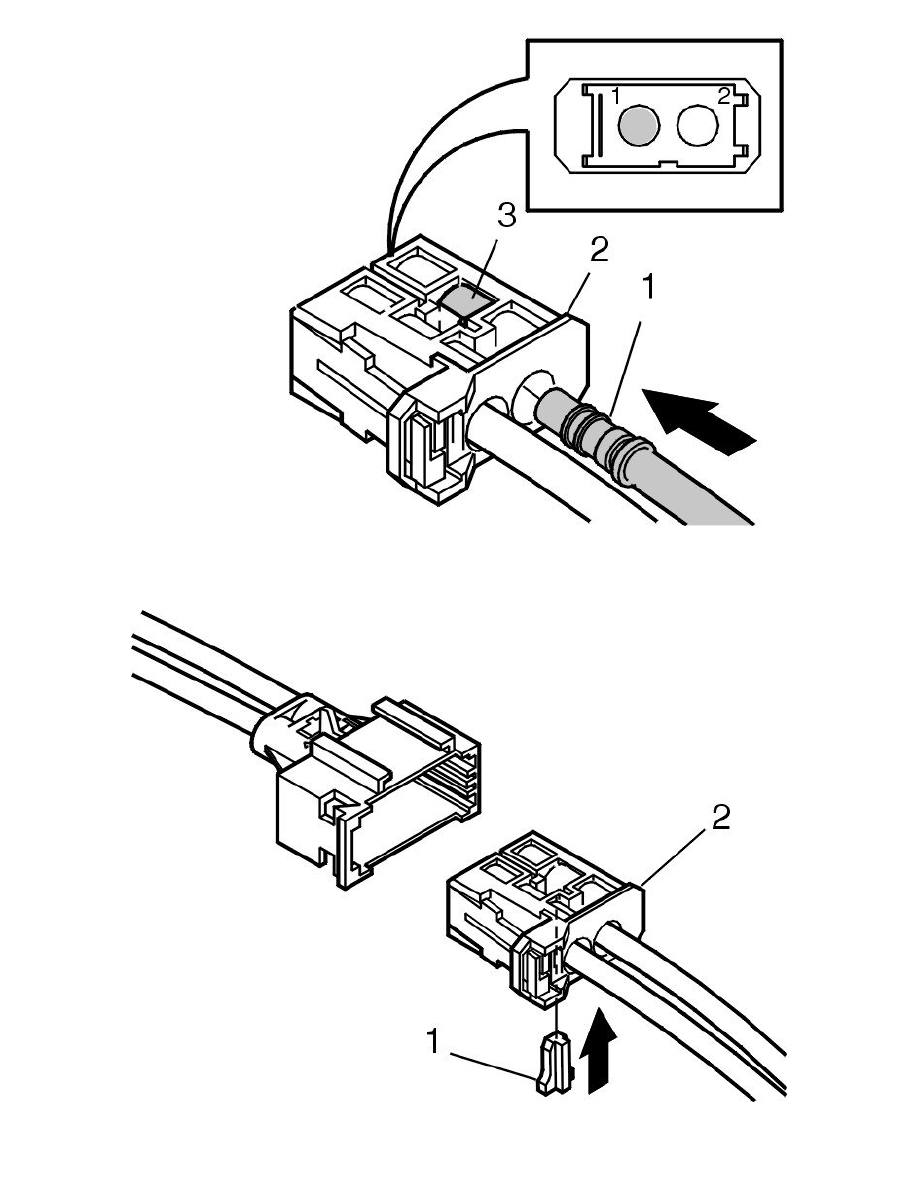

Press the ferrule (1) into place in the connector (2).

Install the catch (1).

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1070
