V50 L5-2.4L VIN 39 B5244S7 (2005)

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1071

Page 72
background image

Assembling the combined connector (2 optic and 4 electrical conductors)

Install the ferrule. See  Assembling the connector.

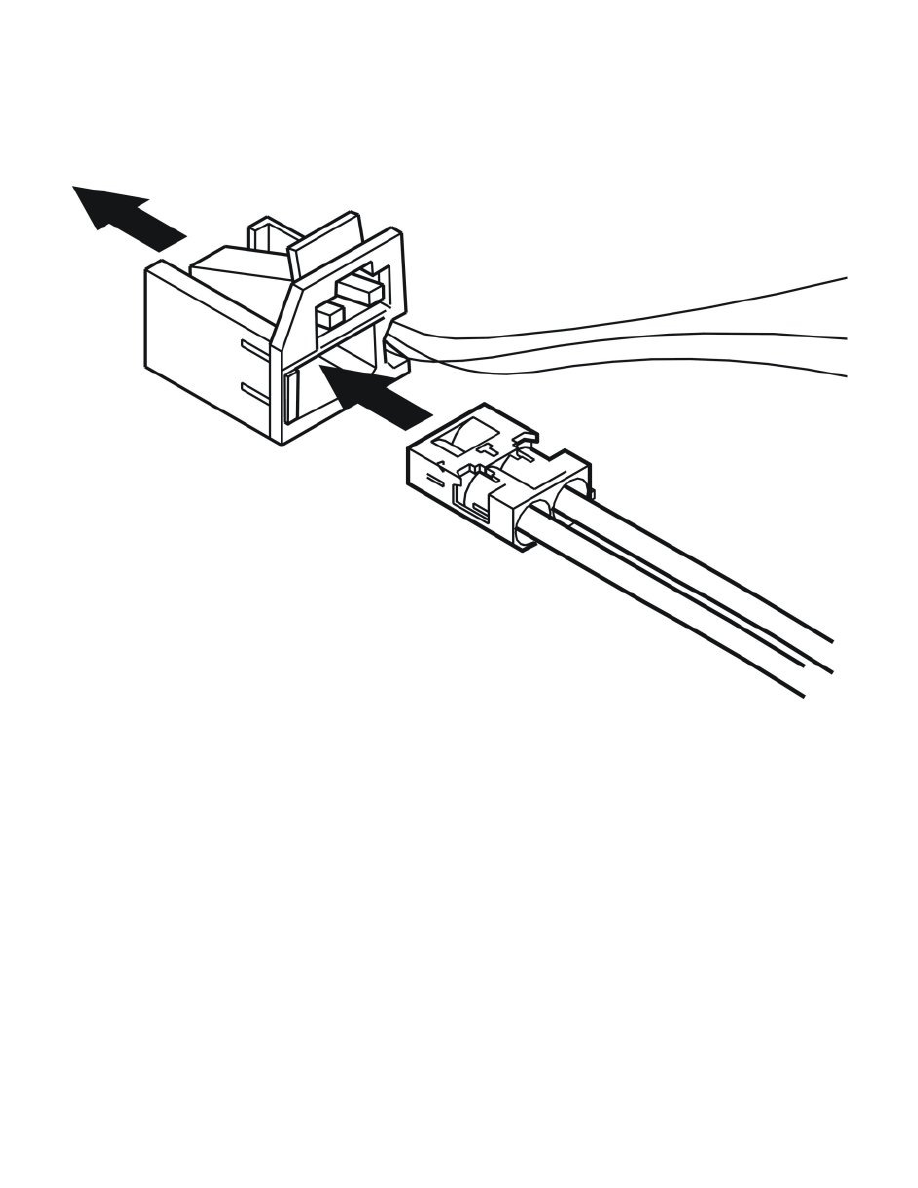

Press the inner section into place in the combined connector.

Finishing work

Check the repair. See  Diagnostic Instructions - Fibre Optic Cable See: Cables/Diagnostic Instructions - Fibre Optic Cable.

Connector, Replacing

Connector, replacing

Special tools:

951 2632 Terminal removal tool  See: Tools and Equipment/951 2632 Terminal Removal Tool
951 2633 Terminal removal tool  See: Tools and Equipment/951 2633 Terminal Removal Tool
951 2639 Terminal removal tool  See: Tools and Equipment/951 2639 Terminal Removal Tool
951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool
951 2811 Terminal removal tool See: Tools and Equipment/951 2811 Terminal Removal Tool

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the
essential information in the illustrations is always correct.

Disassembly

Disassembling secondary lock
