V50 L5-2.4L VIN 39 B5244S7 (2005)

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1073

Page 74
background image

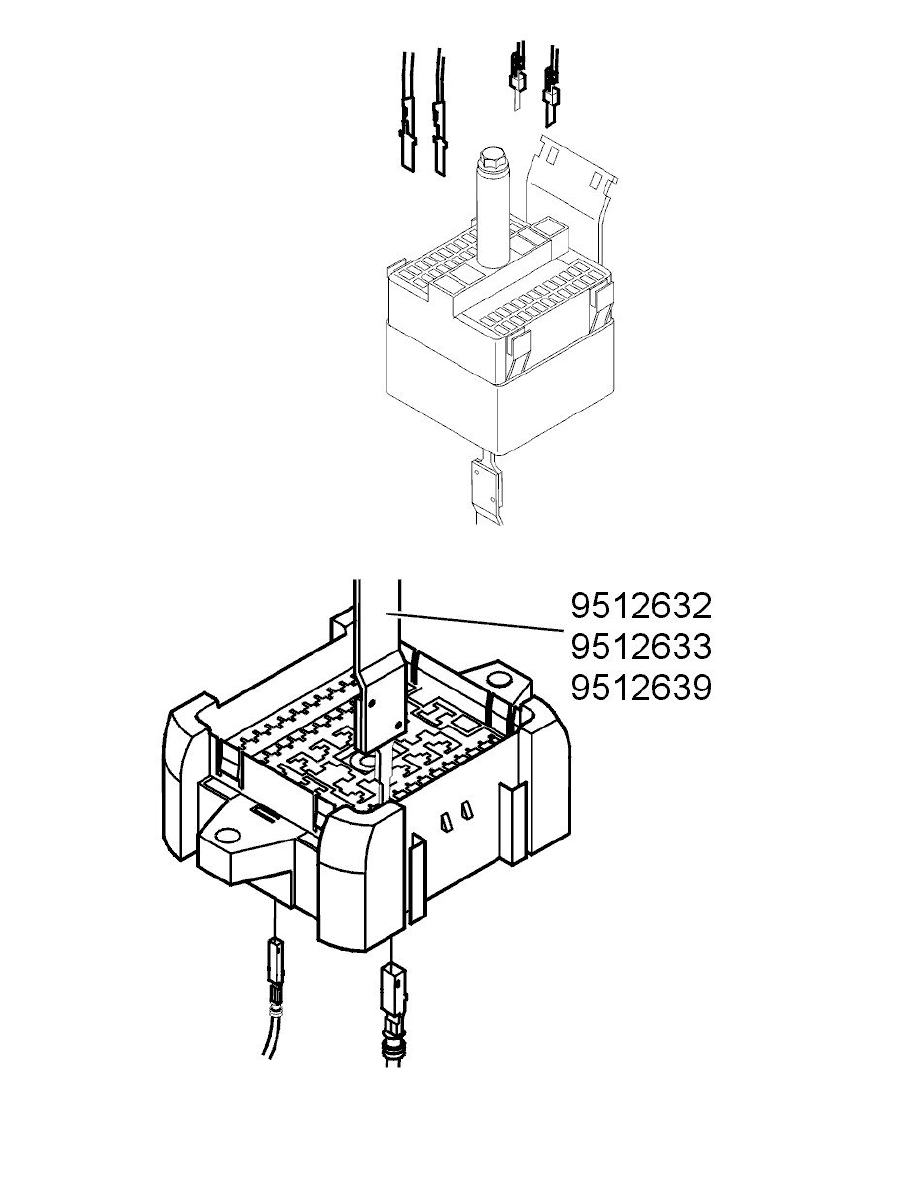

Disassembling primary lock

Use tool: 951 2632 Terminal removal tool  See: Tools and Equipment/951 2632 Terminal Removal Tool , 951 2633 Terminal removal tool  See: Tools
and Equipment/951 2633 Terminal Removal Tool  and 951 2639 Terminal removal tool  See: Tools and Equipment/951 2639 Terminal Removal Tool
to remove the primary lock, as illustrated.
