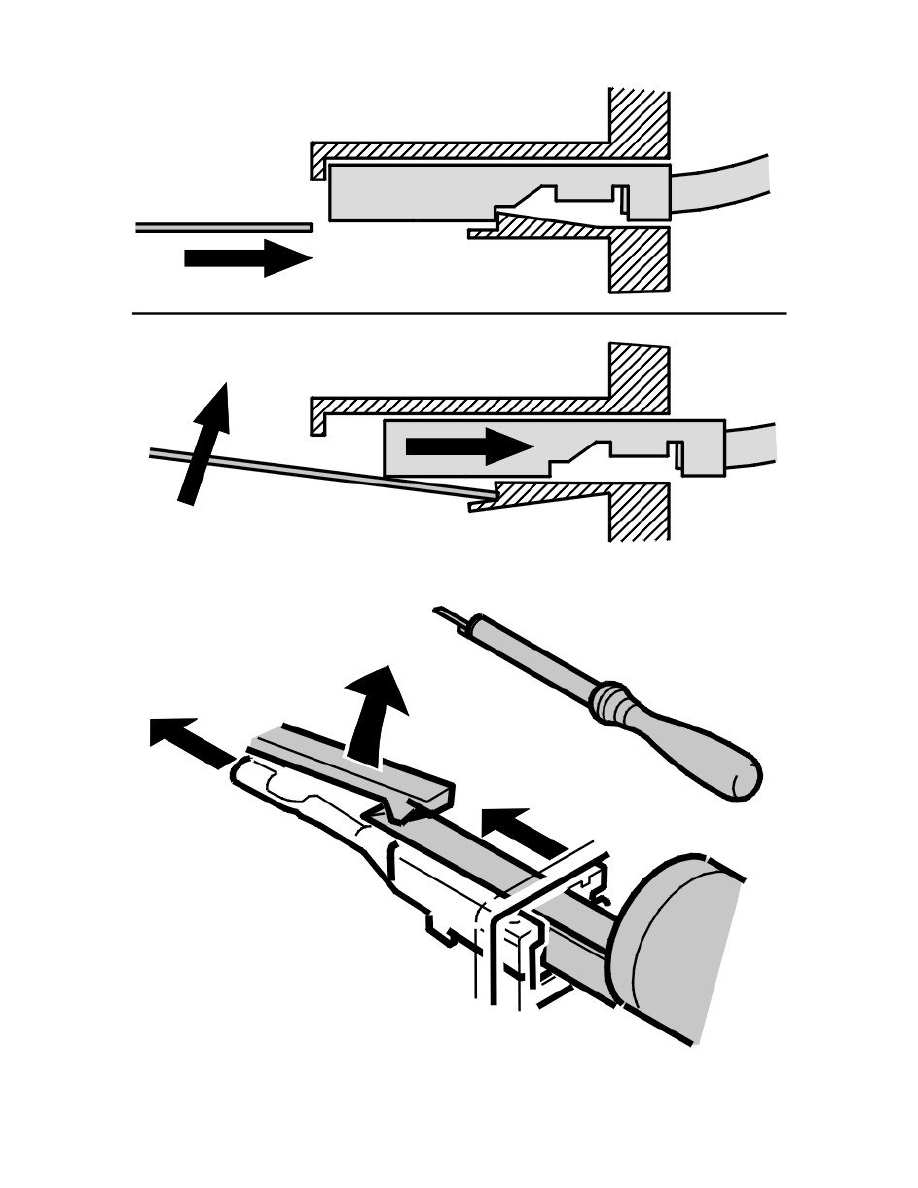

At the same time pull the cable carefully backwards.

Alternatively use tool: 951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool  as illustrated

Note! Tools: 951 2852 Terminal removal tool See: Tools and Equipment/951 2852 Terminal Removal Tool  can only be used for socket housing.

Relays and Modules > Relays and Modules - HVAC > Control Module HVAC > Component Information > Diagrams > Diagram Information and Instructions > Page 1074
