BRAKES
REPAIRS
70-9
Cylinder - master - tandem - RHD
$% 70.30.08
Remove

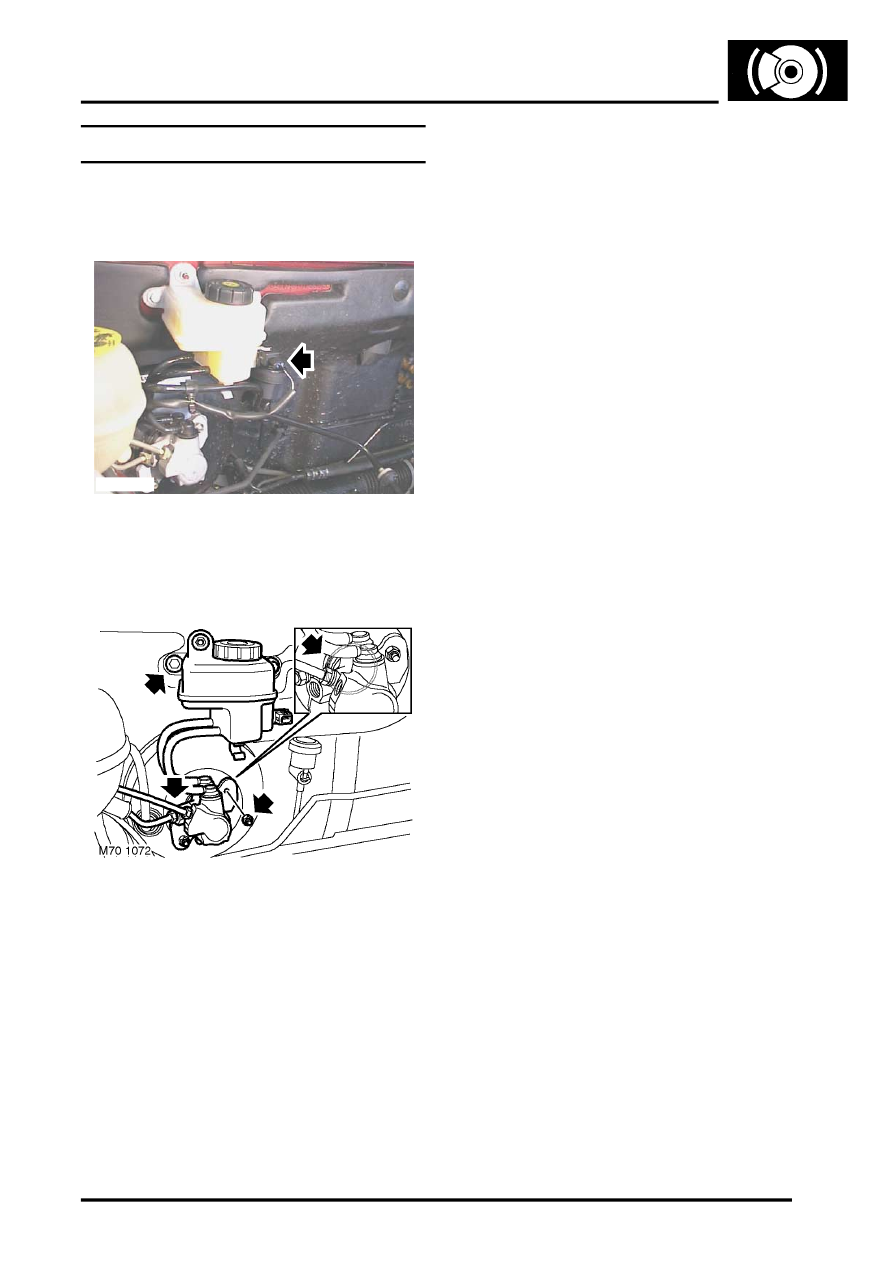

1. Disconnect brake fluid level multiplug.
2. Disconnect servo vacuum pipe from inlet
manifold and release vacuum pipe from master
cylinder reservoir.
3. Position cloth under master cylinder to absorb
spilled fluid.
CAUTION: Brake fluid will damage paint
finished surfaces. If spilled, immediately
remove fluid and clean area with water.
4. Disconnect secondary system pipe union from
master cylinder.
5. Disconnect primary system pipe union from
master cylinder.
CAUTION: Always fit plugs to open
connections to prevent contamination.
6. Remove nut and 2 bolts securing master
cylinder reservoir.
7. Remove and discard 2 nuts securing master
cylinder to servo, remove master cylinder.
8. Remove and discard sealing ring.
Refit
1. Clean master cylinder and servo mating
surfaces.
2. Fit new sealing ring to master cylinder.
3. Align push rod and position master cylinder to
servo.
4. Fit new nuts and tighten 25 Nm (18 lbf.ft).
5. Align reservoir, fit nut and bolts and tighten to 6
Nm (4.5 lbf.ft).
6. Clean brake pipe unions.
7. Connect primary and secondary brake pipes
and tighten unions 17 Nm (12 lbf.ft).
8. Connect servo vacuum pipe to inlet manifold
and secure to master cylinder reservoir.
9. Connect fluid level switch multiplug.
10. Bleed brakes.
M70 1071
