9. Remove 2 bolts securing TXV to evaporator
pipes and remove TXV.
10. Remove and discard ’O’ rings from evaporator
pipes.
CAUTION: Immediately cap all air
conditioning pipes to prevent ingress of
dirt and moisture into the system.
Refit
11. Ensure mating faces of TXV and pipes are
clean.
12. Lubricate new ’O’ rings with compressor oil and
fit rings to pipes.
13. Fit TXV to evaporator pipes, ensuring that TXV
is fully engaged to pipes.
14. Fit and tighten bolts securing TXV to evaporator
pipes.
15. Fit A/C pipes to TXV, position pipe clamp and
secure with bolt.
16. Secure A/C pipes to bulkhead with clamp.
17. Fit engine harness to bracket on bulkhead and
secure with nut.
18. Align engine harness mounting bracket to
manifold chamber and secure with bolt.
19. Fit throttle and cruise control cables to clips.
20. Fit IAC valve.
See FUEL SYSTEM, Repair.
21. Recharge A/C system.
See Adjustment.
SOLAR SENSOR
Service repair no - 82.20.92
Remove

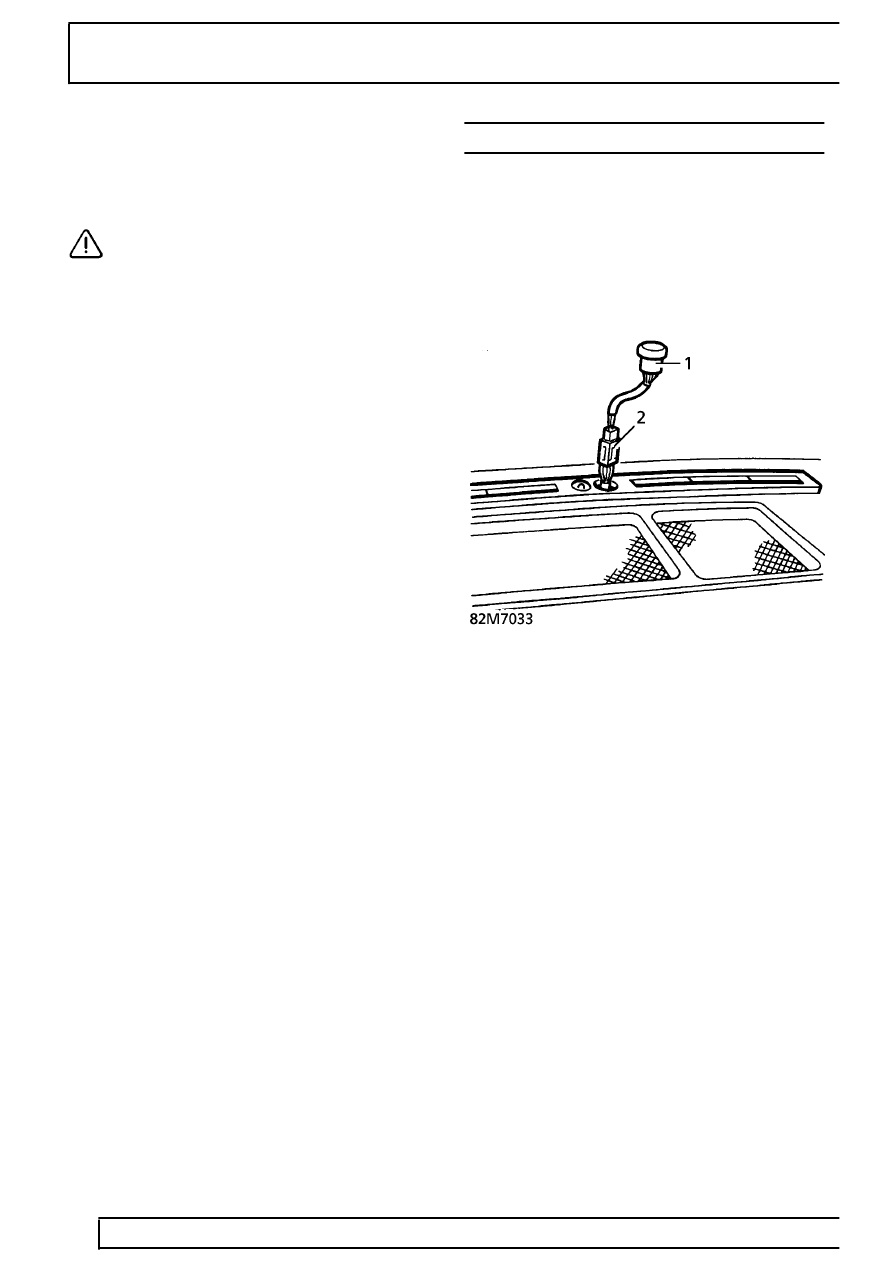

1. Prise solar sensor from central screen demist
vent.
2. Disconnect sensor from multiplug. Remove
sensor.
Refit
3. Reverse removal procedure.
