Components and Connectors

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Check Panel › Components and Connectors

145 electrical system diagnosisComponents and Connectors

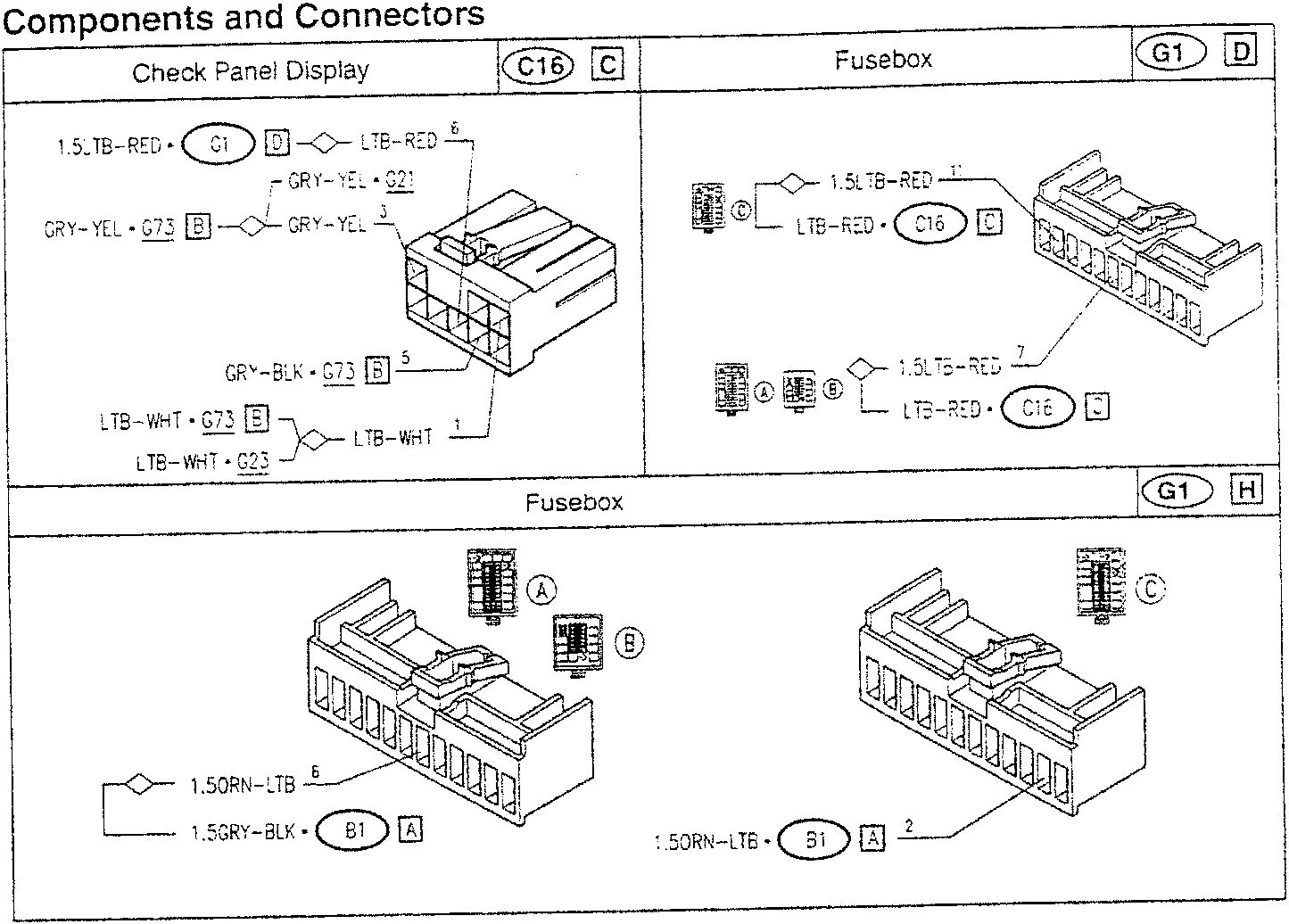

Components and Connectors

Check Panel Display	C16 C	Fusebox	G1 D
1.5LTB-RED • G1 D — LTB-RED 6 GRY-YEL • G73 B — GRY-YEL 3 GRY-BLK • G73 B 5 LTB-WHT • G73 B — LTB-WHT 1 LTB-WHT • G23	C16 C	Fusebox	G1 D
				1.5LTB-RED 1 LTB-RED • C16 C 1.5LTB-RED 7 LTB-RED • C16 C

Fusebox	G1 H
1.5ORN-LTB 6 1.5GRY-BLK • B1 A 1.5ORN-LTB • B1 A 2	G1 H
