145 electrical system diagnosisFunctional Description
Functional Description
The clock, located in the display C16, is supplied by direct voltage (battery) through fuse F16 of fusebox G1 which is connected to pin 2 of connector A of the actual display.
N.B.: disconnecting the battery, the clock stops and must be reset using the 2 pushbuttons - hours and minutes - when the supply is re-connected.
Pin 4 receives the "key-operated" supply through fuse F15 of fusebox G1, while pin 1 is connected to earth; the key- operated supply lights up the numbers of the actual clock display (which stay off when the key is not engaged); lastly, a sidelights on signal reaches pin 3 which dims the light of the numbers.

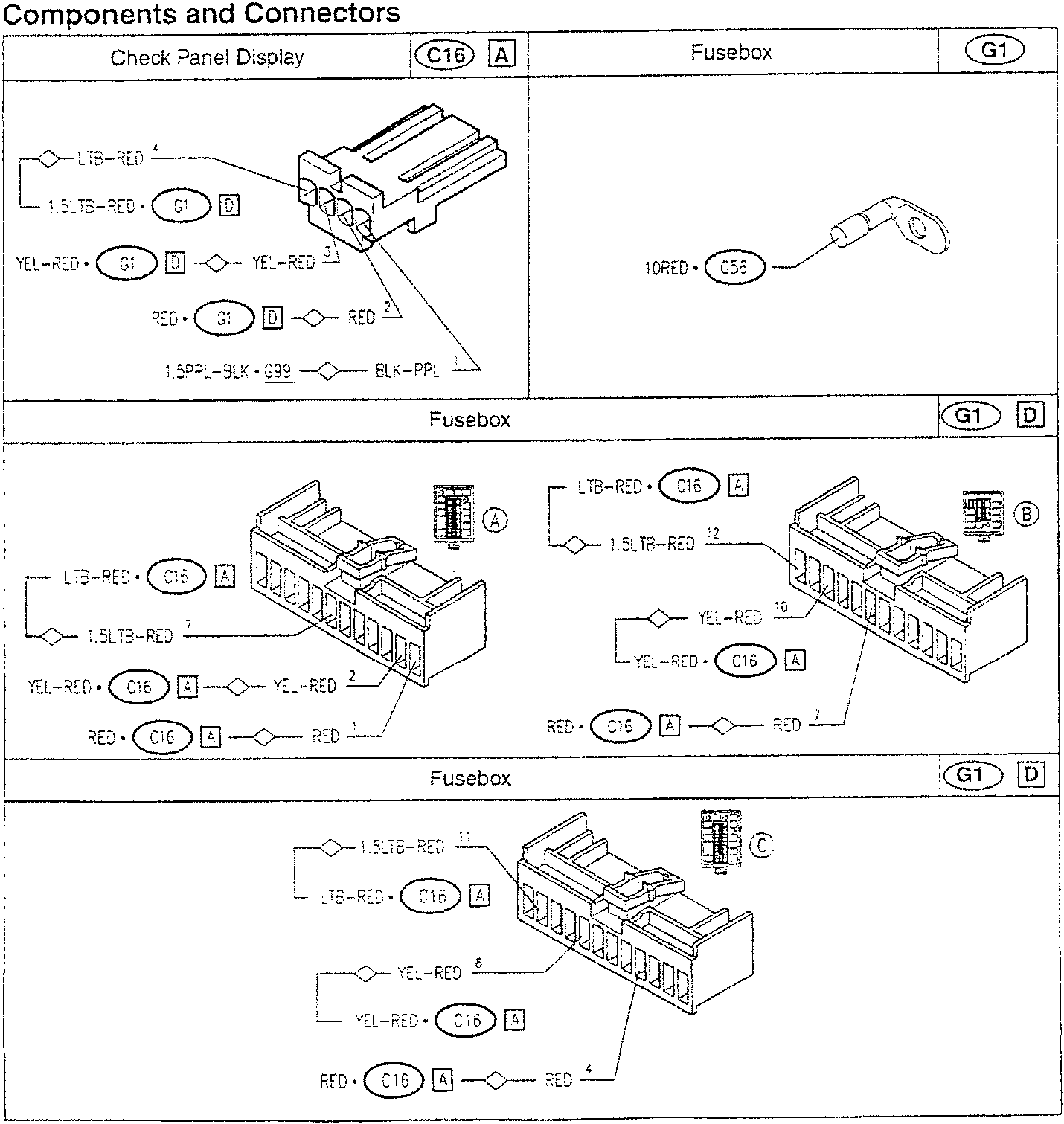

Components and Connectors
| Check Panel Display | C16 A | Fusebox | G1 | |
|---|---|---|---|---|
| LTB-RED 4 | 1.5LTB-RED • G1 D | YEL-RED • G1 D YEL-RED 3 | RED • G1 D RED 2 | 1.5PPL-9LK • G99 BLK-PPL |
| 10RED • G56 | ||||
