Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

Doors open indicator

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Check Panel › Doors open indicator
145 electrical system diagnosisDoors open indicator · page 1 of 2

DOORS OPEN INDICATOR

Wiring Diagram

Fusebox G1 with connections to F1 and F2, labeled with wire colors and components like 'CLUSTER, WIND-REARSCR. WASHER REVERS. LIGHT, AIRBAG, MIRROR ADJUST., CLOCK, CHECK PANEL, ALFA ROWED CODE'

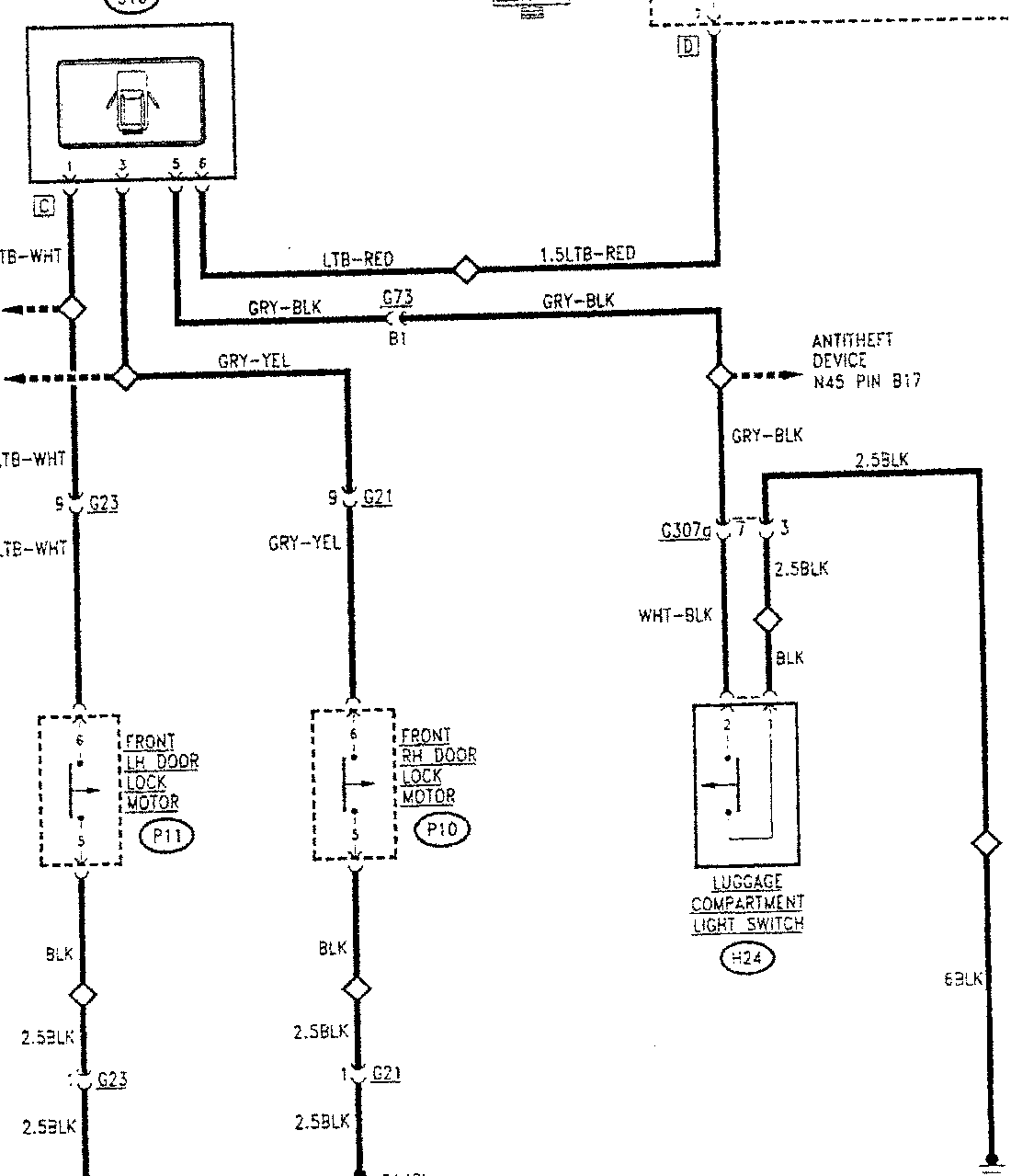

Check Panel Display C16 with connections to various components including 'ANTITHEFT DEVICE G73 PIN B6', 'ANTITHEFT DEVICE G73 PIN B5', 'FRONT LH DOOR LOCK MOTOR P11', 'FRONT RH DOOR LOCK MOTOR P10', and 'LUGGAGE COMPARTMENT LIGHT SWITCH H24'

FUSEBOX G1

  • CLUSTER, WIND-REARSCR. WASHER REVERS. LIGHT, AIRBAG, MIRROR ADJUST., CLOCK, CHECK PANEL, ALFA ROWED CODE

CHECK PANEL DISPLAY C16

  • ANTITHEFT DEVICE G73 PIN B6
  • ANTITHEFT DEVICE G73 PIN B5
  • FRONT LH DOOR LOCK MOTOR P11
  • FRONT RH DOOR LOCK MOTOR P10
  • LUGGAGE COMPARTMENT LIGHT SWITCH H24

WIRE COLORS:

  • 1.5GRY-BLK
  • 1.5ORN-LTB
  • LTB-WHT
  • LTB-RED
  • GRY-BLK
  • GRY-YEL
  • WHT-BLK
  • BLK
  • 2.5BLK
  • 6BLK

CONNECTORS:

  • G73 PIN B1
  • G23
  • G21
  • G307g
  • G148b
  • G148c
  • G63a
