Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

Components and Connectors (cont.d)

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Check Panel › Components and Connectors (cont.d)
145 electrical system diagnosisComponents and Connectors (cont.d)

Components and Connectors (cont.d)

RH front door wiring connector G21

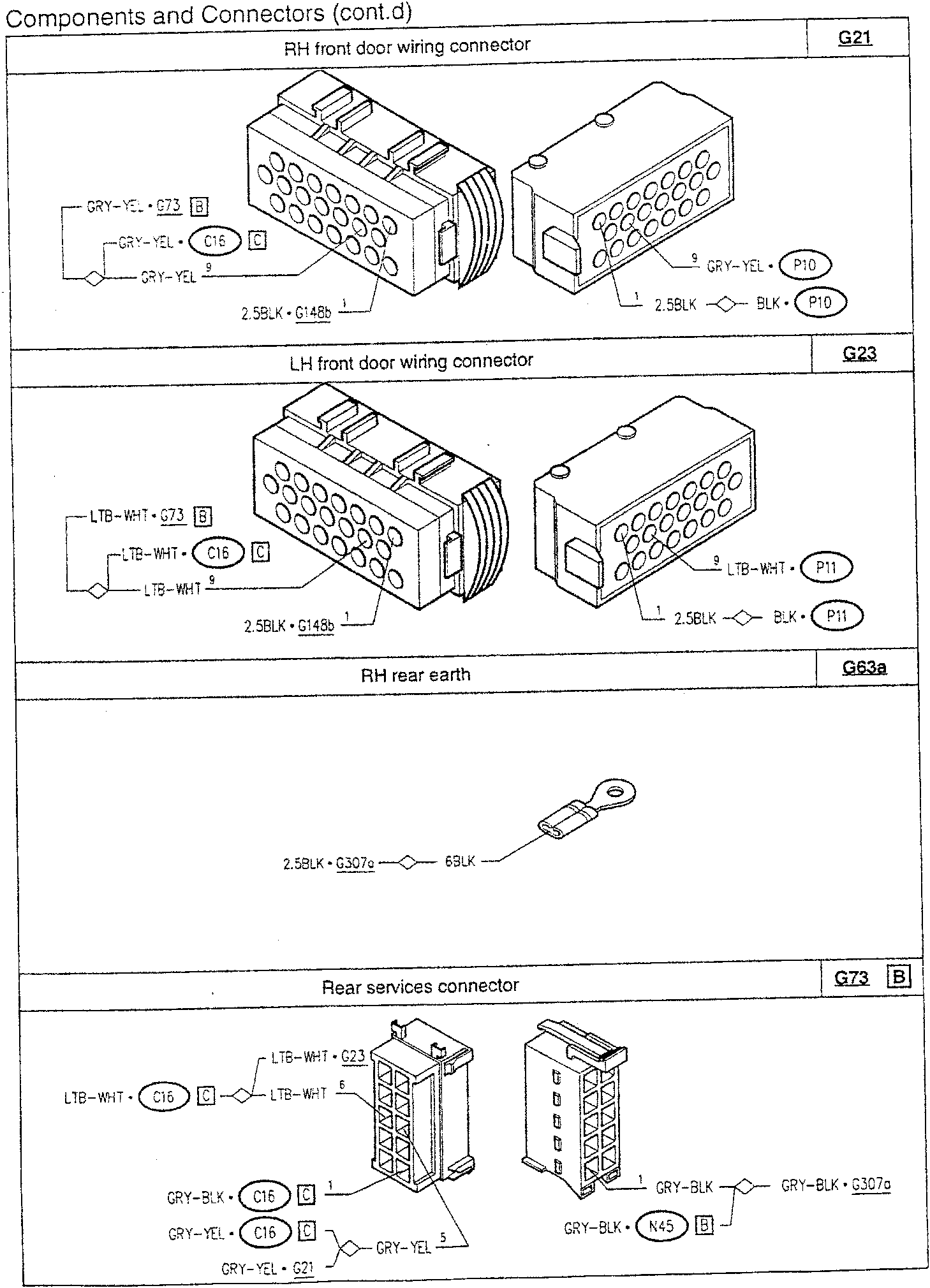

RH front door wiring connector diagram showing G21, C16, G73, P10, G148b, and wire colors
G21
LH front door wiring connector G23
LH front door wiring connector diagram showing G23, C16, G73, P11, G148b, and wire colors
G23
RH rear earth G63a
RH rear earth diagram showing G307a, 6BLK, and wire connections
G63a
Rear services connector G73 B
Rear services connector diagram showing G73, C16, N45, G307a, and wire colors
G73 B
