Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

General description

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Check Panel › General description
145 electrical system diagnosisGeneral description

GENERAL DESCRIPTION

The Check Panel display located in the centre of the dashboard integrates the indications of the instrument cluster with certain indicators and operating switches:

  • doors open indicator
  • luggage compartment opening switch
  • hazard warning light switch (blinker)
  • foglamp switch
  • digital clock

This section describes the following functions

  • DOORS OPEN INDICATOR,
  • CLOCK,

while for the switches, reference should be made to the sections to which they belong, i.e.:

  • luggage compartment opening switch: see section "Luggage compartment opening control"
  • hazard warning light switch: see section "Direction indicators and hazard warning lights"
  • Foglamp switch: see section "Foglamps and rear fog guards".

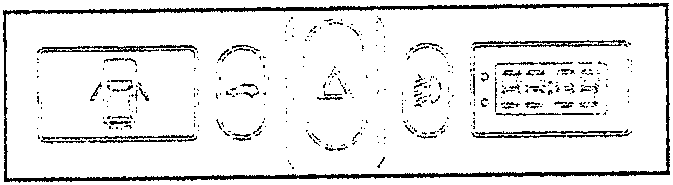

Check Panel display with icons for doors open, luggage compartment, hazard warning, foglamp, and digital clock

N.B.: Not all versions possess all these functions.
