Wiring diagrams (page 2 of 5)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Location of earths
145 electrical system diagnosisWiring diagrams · page 2 of 5

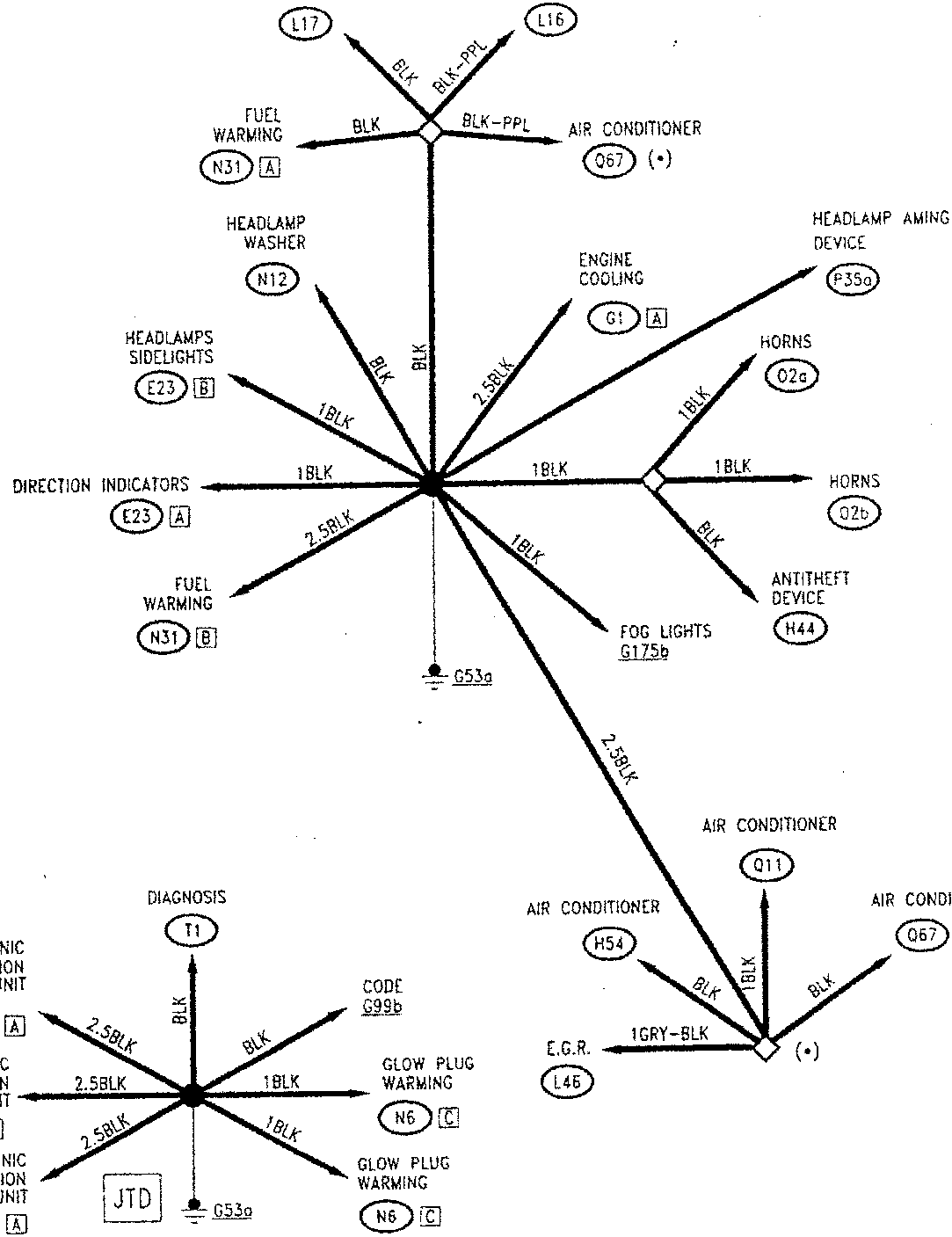

Wiring diagrams (page 2 of 5) – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
(•) Variant form chassis no....
