Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

Wiring diagrams (page 5 of 5)

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Location of earths
145 electrical system diagnosisWiring diagrams · page 5 of 5

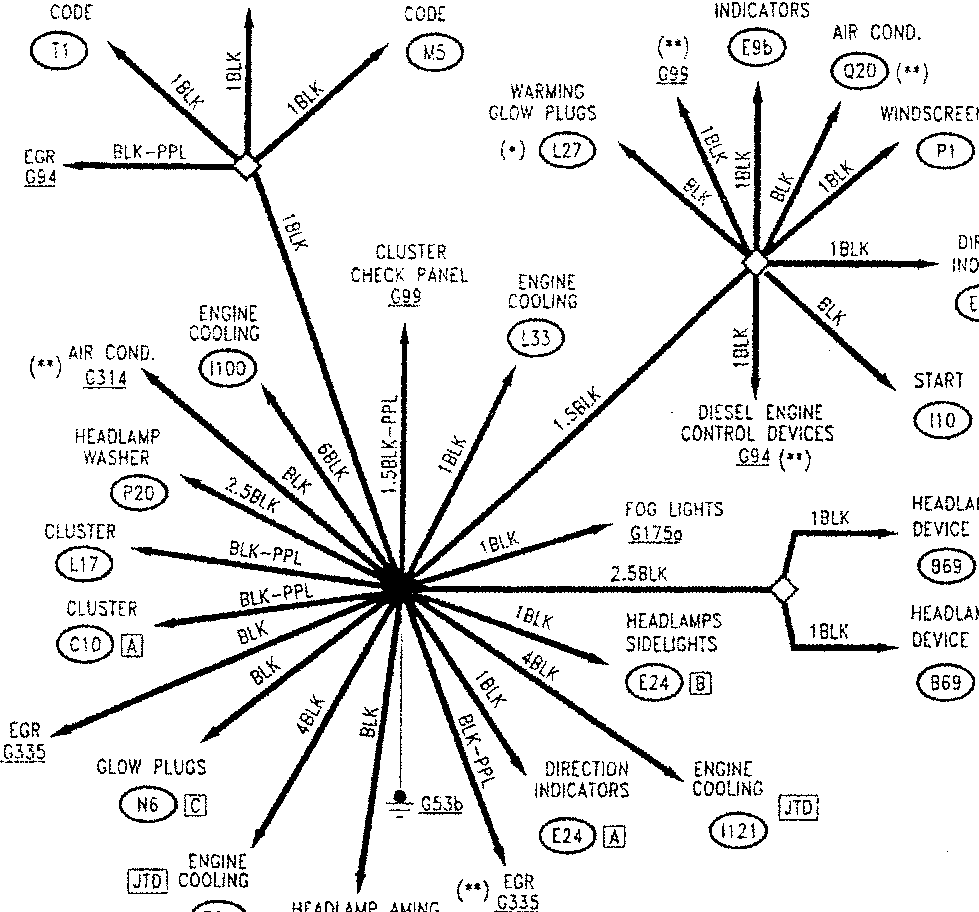

Diagram showing electrical earth connections for various components including ALFA ROMEO CODE, AIR COND., WINDSCREEN WIPER, START, HEADLAMP AMING DEVICE, ENGINE COOLING, CLUSTER CHECK PANEL, DIRECTION INDICATORS, FOG LIGHTS, HEADLAMPS SIDELIGHTS, GLOW PLUGS, EGR, and others with wire color codes like 1BLK, 2.5BLK, 4BLK, etc., all connected to G53b earth point.

(*) Only versions without ALFA ROMEO CODE

(*) Variant from chassis no....

(•) Variant from chassis no....

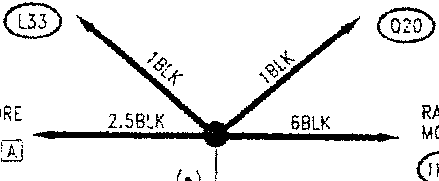

Diagram showing electrical connections for RAFFR. MOTORE and AIR COND. with wire color codes 1BLK, 2.5BLK, 6BLK, and G53b earth point.

POWER SUPPLY — 35BLK — G53b — 35BLK — POWER SUPPLY G318

ABS — 1BLK — (2.5BLK-RED) — 2.5BLK — ABS

T8 — G53b — N51

(•) — 10BLK — POWER SUPPLY — A1 — G53b
