G55a (Boxer versions) (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Location of earths
146 electrical system diagnosisG55a (Boxer versions) · page 2 of 2

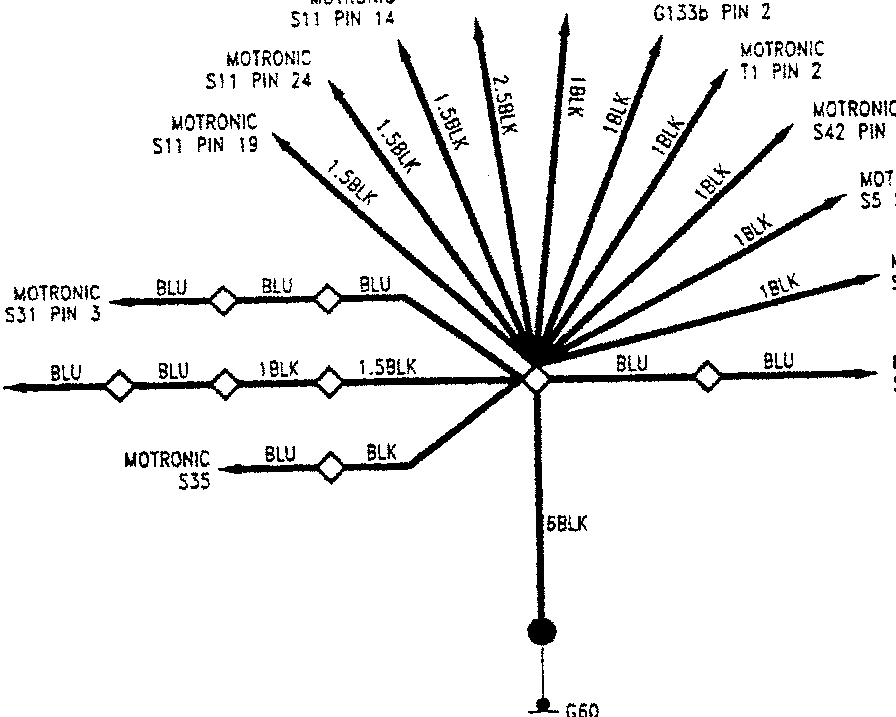

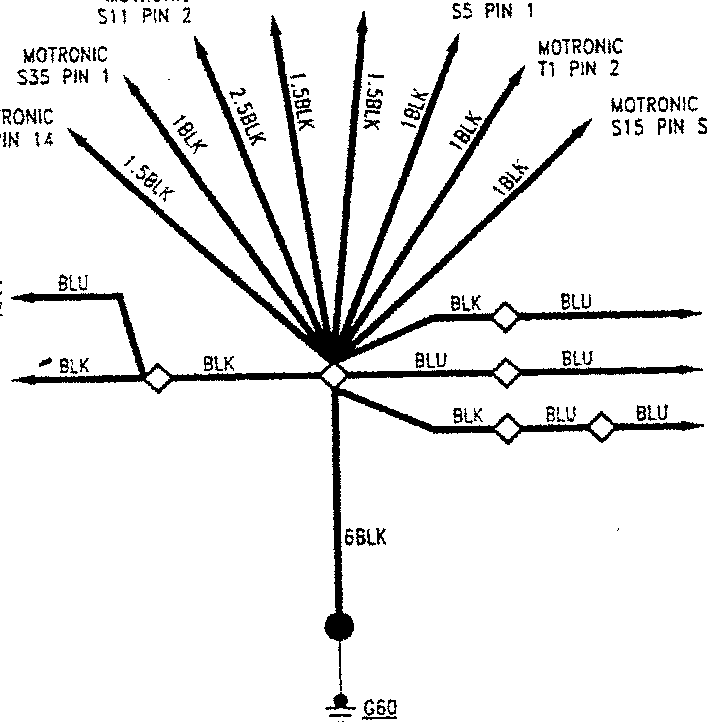

G55a (Boxer versions) (page 2 of 2) – diagram from the 146 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
