146 bodyworkTailgate lock

TAILGATE LOCK

REMOVAL/REFITTING

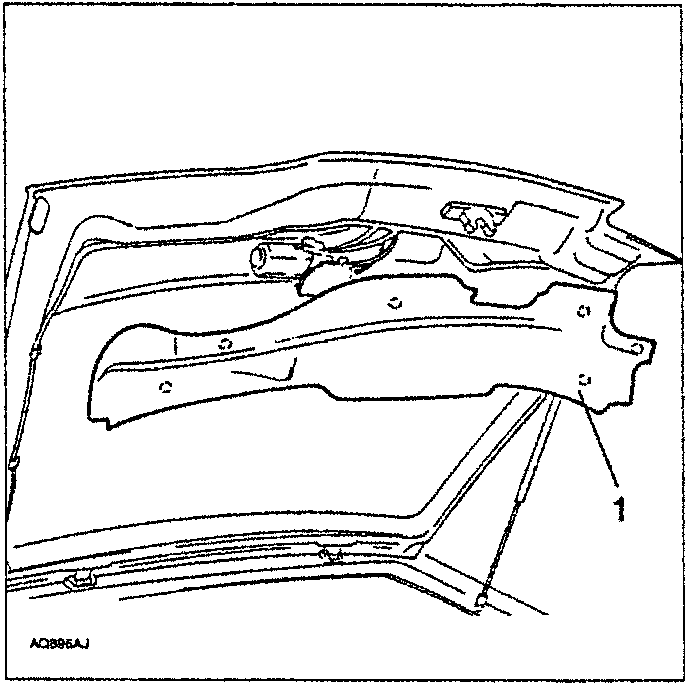

  1. Using tool no. 1.823.015.000, release the tailgate lower trim from the plastic nails and remove it.
Diagram showing tailgate lower trim with plastic nails

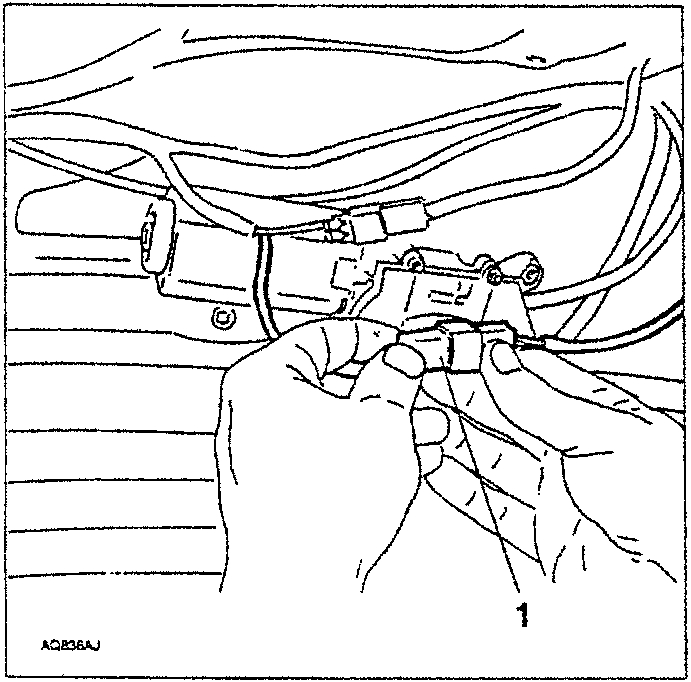

  1. Disconnect the electrical connection from the boot open warning sensor (if fitted).
Diagram showing hands disconnecting electrical connection

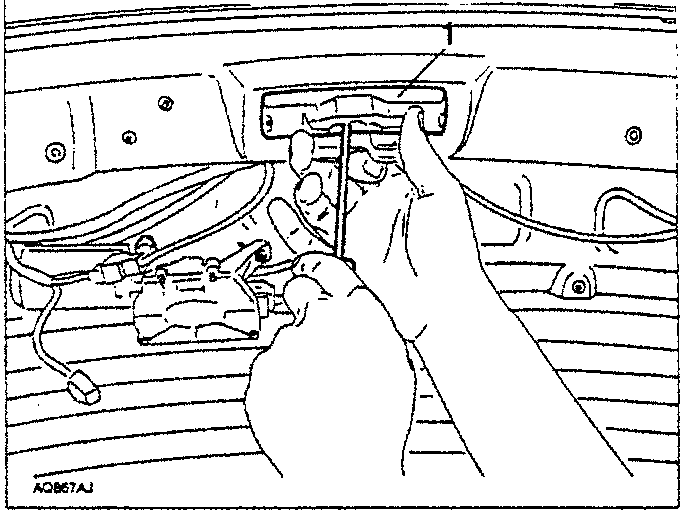

  1. Remove the lock trim.
Diagram showing hands slackening screws on tailgate lock

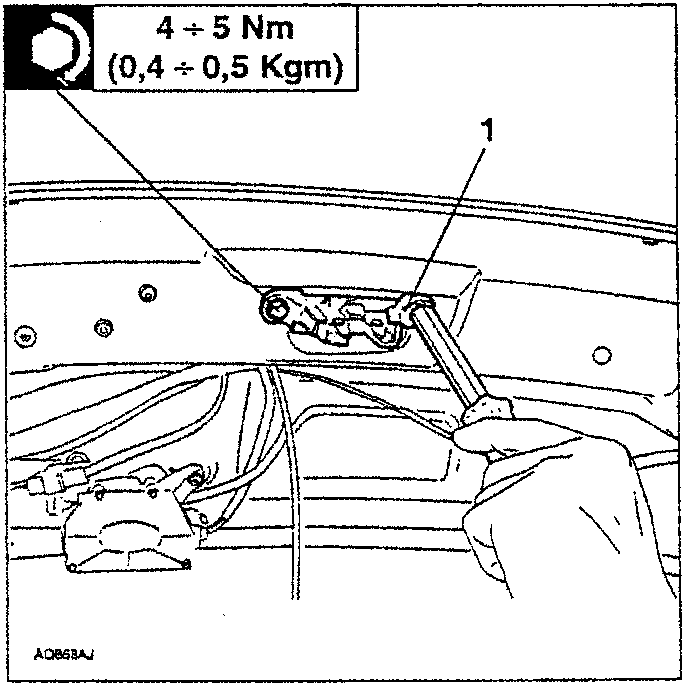

  1. Slacken the two screws fastening the tailgate lock.
Diagram showing hand removing lock with torque specification

4 ÷ 5 Nm
(0,4 ÷ 0,5 Kgm)

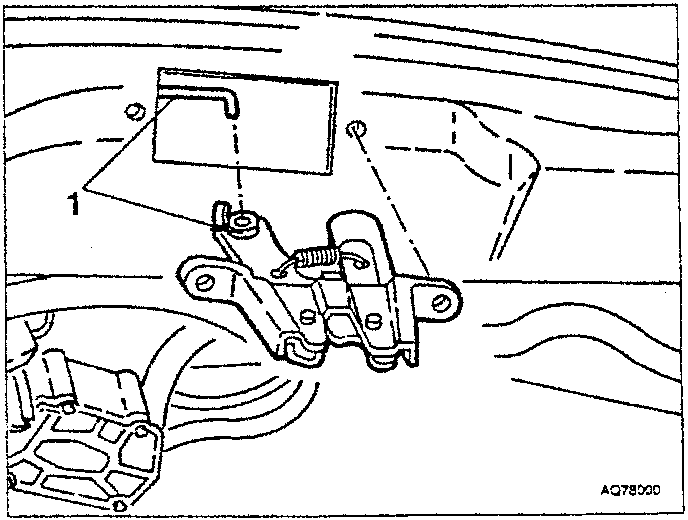

  1. Remove the lock taking care to release the opening control rod from the actuator (electrically-operated locks).
Diagram showing lock trim and control rod
