146 bodyworkTailgate · page 1 of 2

TAILGATE

REMOVAL/REFITTING

  • Disconnect the battery negative terminal (-).
  • Open the boot and release the parcel shelf support cables.

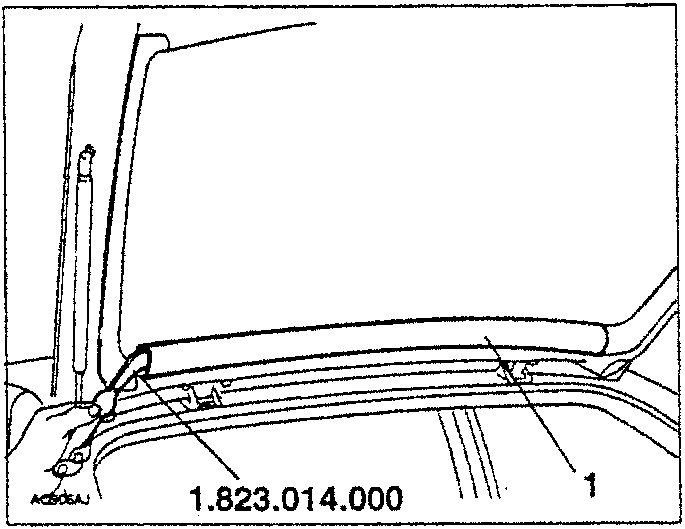

  1. Using tool 1.823.014.000, remove the upper tailgate trim from the plastic nails (five) and remove it.
Diagram showing removal of upper tailgate trim using tool 1.823.014.000

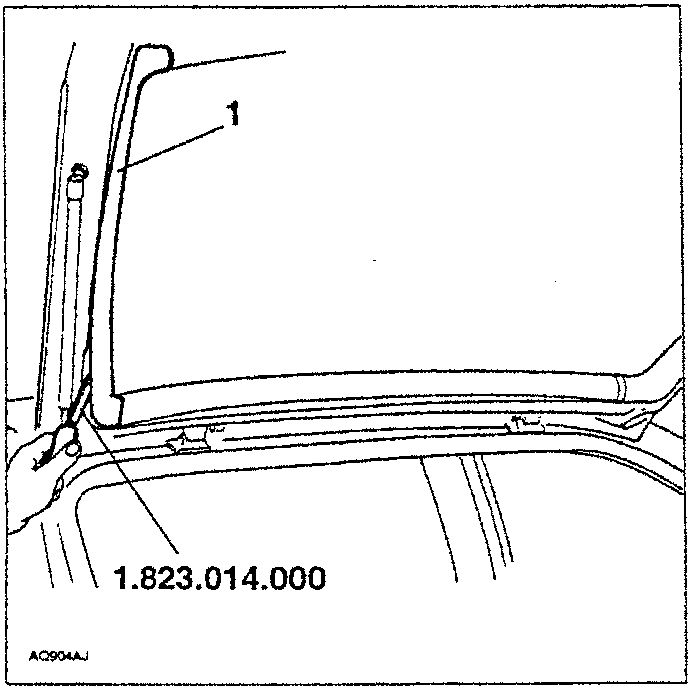

  1. Using tool 1.823.014.000, remove the left side trim.
Diagram showing removal of left side trim using tool 1.823.014.000

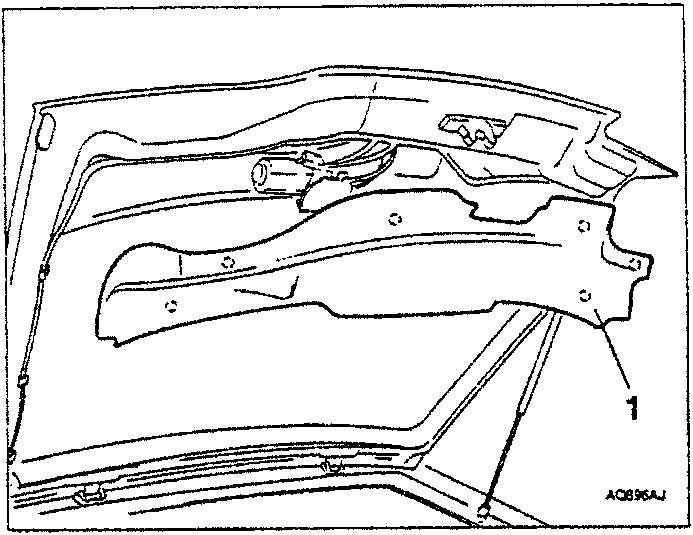

  1. Using tool 1.823.014.000, remove the lower tailgate trim from the plastic nails (eight) and remove it.
Diagram showing removal of lower tailgate trim using tool 1.823.014.000
Diagram showing the tailgate area with part 1 indicated

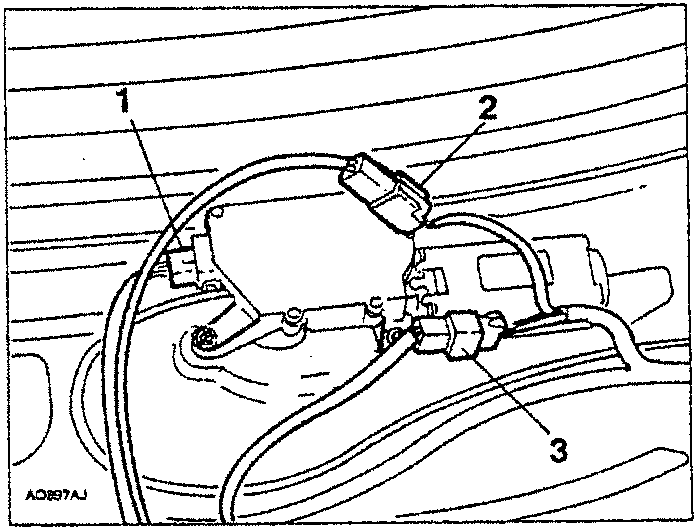

  • Disconnect the electrical connections of:
  1. Rear screen motor
  2. Tailgate open warning light
  3. Tailgate control opening actuator.
Diagram showing electrical connections for rearscreen motor, tailgate open warning light, and tailgate control opening actuator

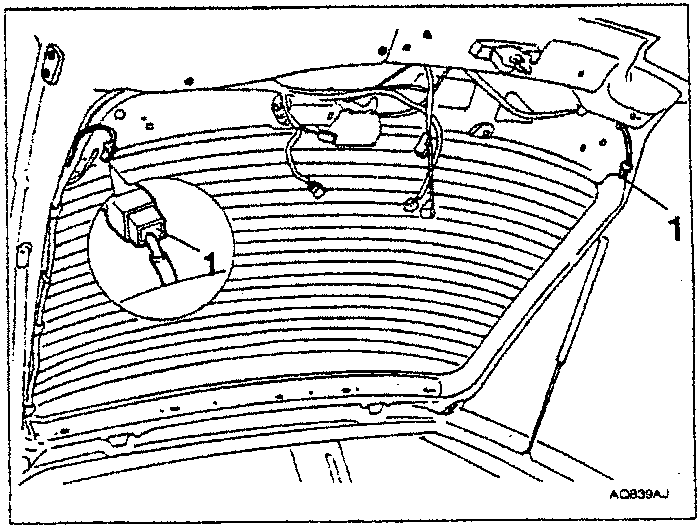

  1. Disconnect the two, right and left rearscreen heating connectors.
