146 bodyworkTailgate · page 2 of 2

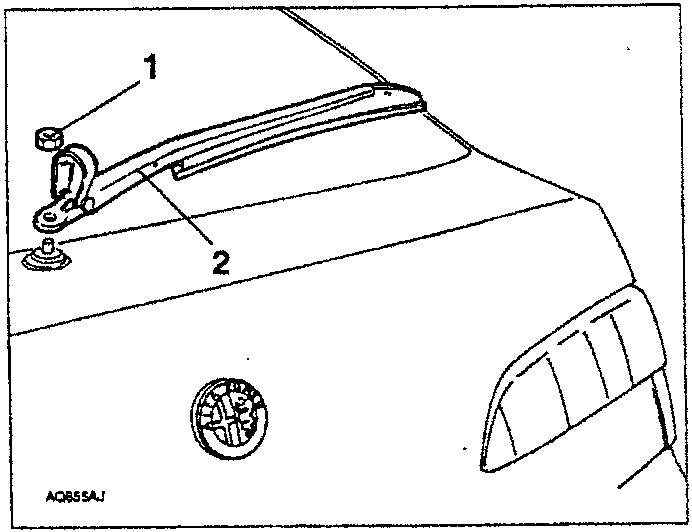

  1. Lower the tailgate, raise the protection cap and slacken the nut fastening the rearscreen wiper arm.
  2. Remove the wiper arm.
Diagram showing rear screen wiper arm with parts 1 and 2 labeled

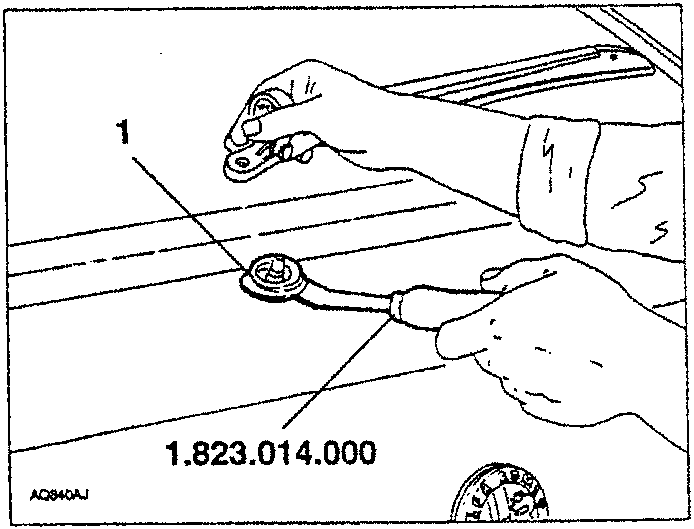

  1. Using tool no. 1.823.014.000, remove the rearscreen wiper rubber cap.
Diagram showing hands using tool 1.823.014.000 to remove a rubber cap

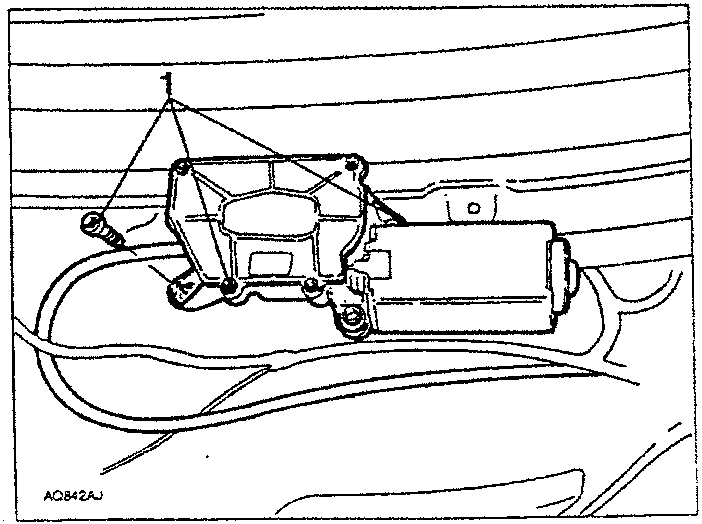

  1. Raise the tailgate and slacken the three screws fastening the rearscreen wiper motor.
Diagram showing rearscreen wiper motor with part 1 labeled

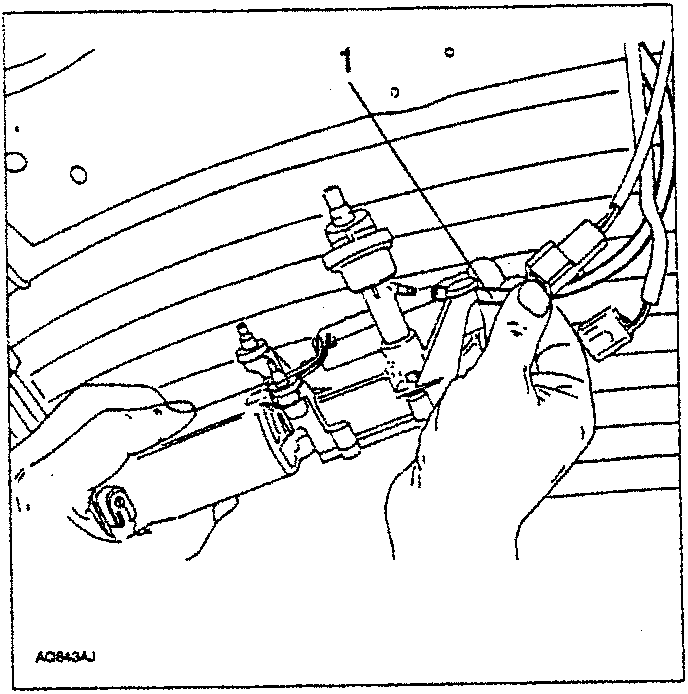

  1. Pull the wiper motor off the tailgate just enough to disconnect the detergent fluid tube and then remove the motor.
Diagram showing hands pulling a wiper motor from the tailgate
  • Release the wiring from the fastening clamps.

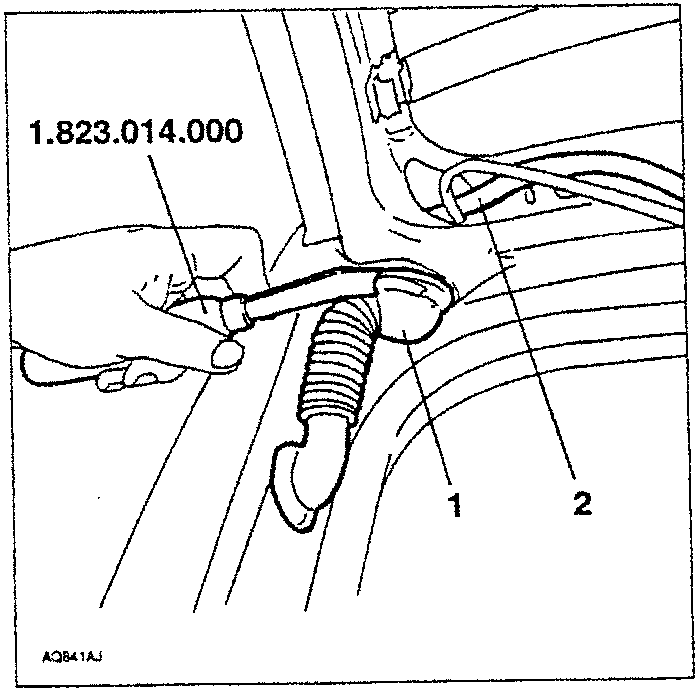

  1. Using tool no. 1.823.014.000, remove the cable sleeve from the tailgate.
  2. Withdraw the cables.
Diagram showing hands using tool 1.823.014.000 to remove a cable sleeve
  1. Suitably prop the tailgate, then disconnect the two telescopic shock absorbers.
