146 bodyworkTailgate opening control actuator · page 1 of 2

TAILGATE OPENING CONTROL ACTUATOR

REMOVAL/REFITTING

  • Remove the tailgate lock (see specific paragraph)

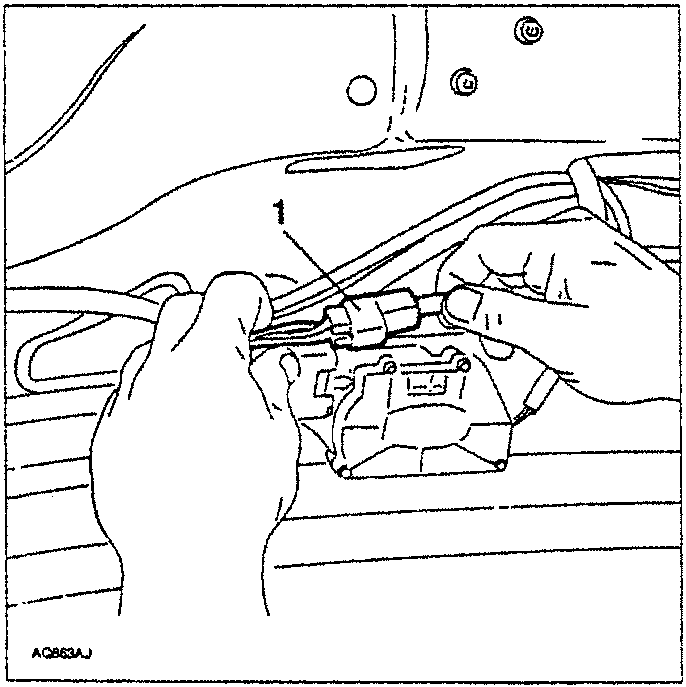

  1. Disconnect the electrical connector of the tailgate opening control actuator.
Hands disconnecting an electrical connector from a tailgate actuator.

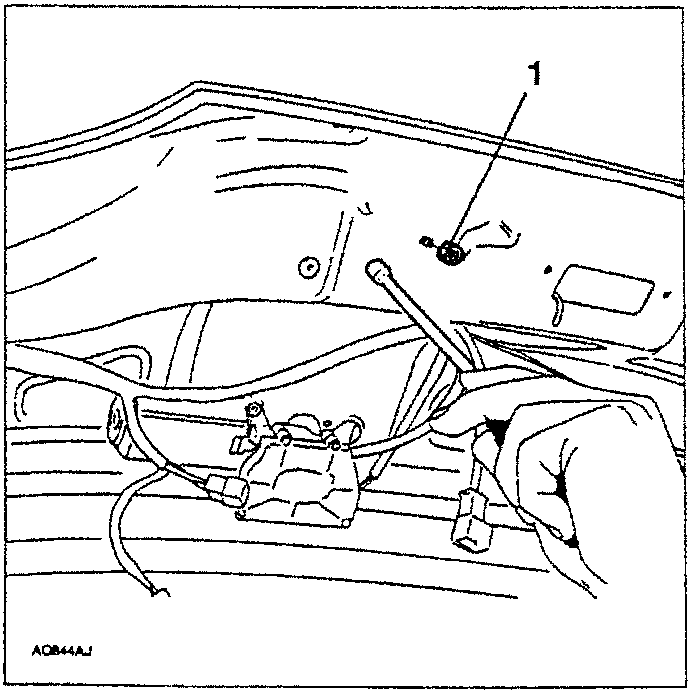

  1. Slacken the two actuator fastening nuts.
Hand using a tool to slacken a nut on the tailgate actuator.

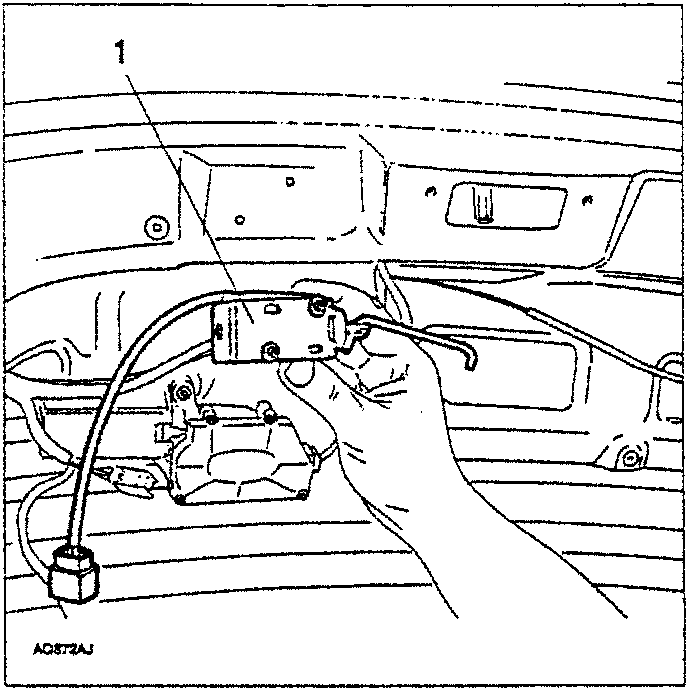

  1. Remove the tailgate opening control actuator withdrawing it from inside the tailgate
Hands removing the tailgate opening control actuator from inside the tailgate.

TAILGATE LOCK UNIT

REMOVAL/REFITTING

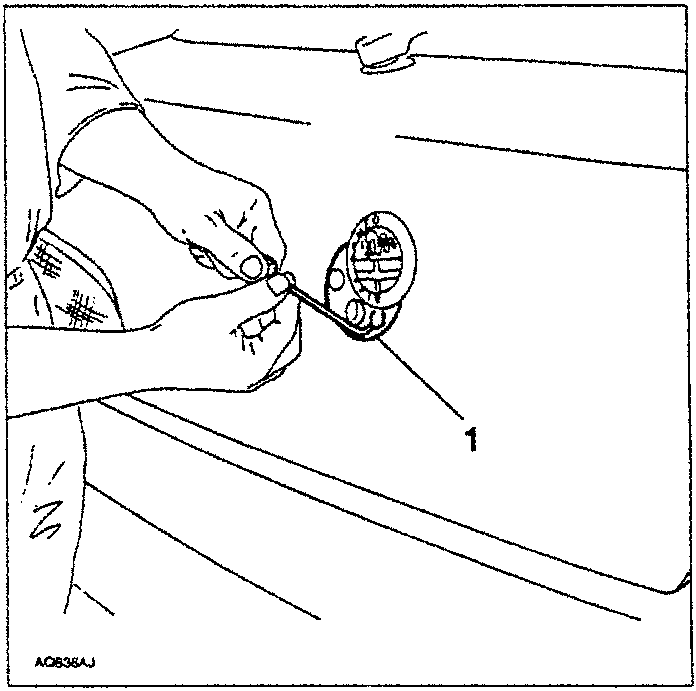

  1. Lower the tailgate, turn the badge and remove the two caps protecting the fastening screws
Hand using a punch to slacken a screw on the tailgate lock unit.
  1. Using a punch, slacken the two screws fastening the lock unit and remove it.
