146 bodyworkRear door trim moulding

REAR DOOR TRIM MOULDING

REMOVAL/REFITTING

  • Remove the door window (see specific paragraph).
  1. Using knife 1.823.014.000, remove the door trim mouldings starting from the rear part.
Diagram showing removal of rear door trim moulding with tool 1.823.014.000
  1. 1.823.014.000

REAR DOOR LOWER STRIP

REMOVAL/REFITTING

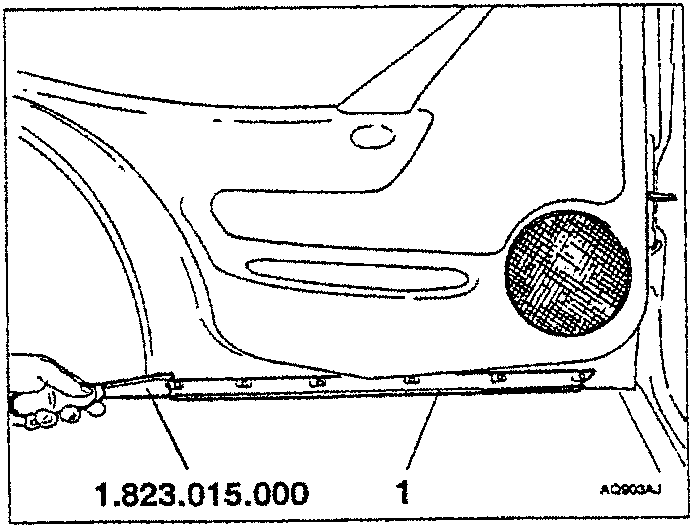

  1. Using tool 1.823.015.000, remove the six plastic buttons and remove the strip.
Diagram showing removal of rear door lower strip with tool 1.823.015.000
  1. 1.823.015.000
