REAR DOOR WINDOW WINDING DEVICE (Electric)

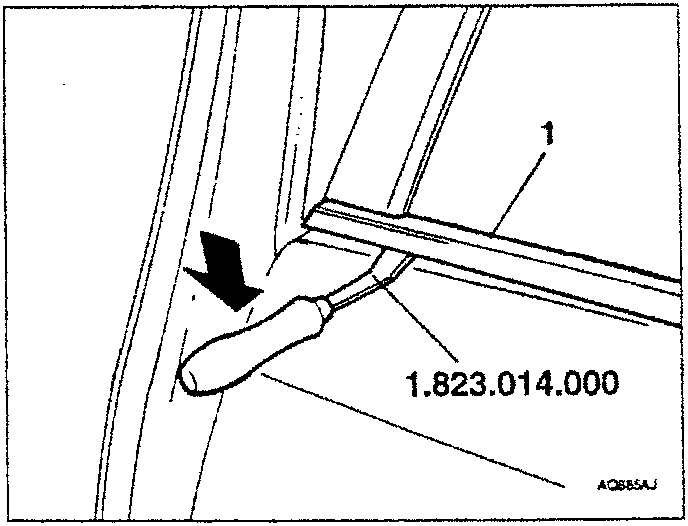

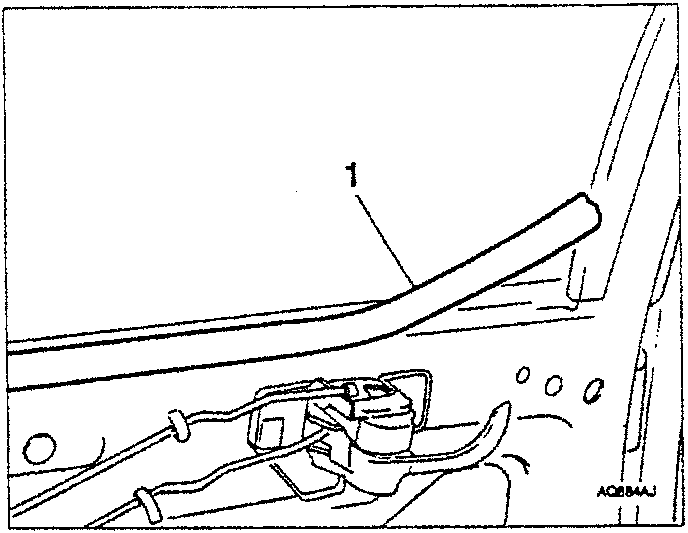

1. Using tool 1.823.014.000 remove the outer glass moulding.

When removing the outer glass moulding take care not to damage the paintwork.

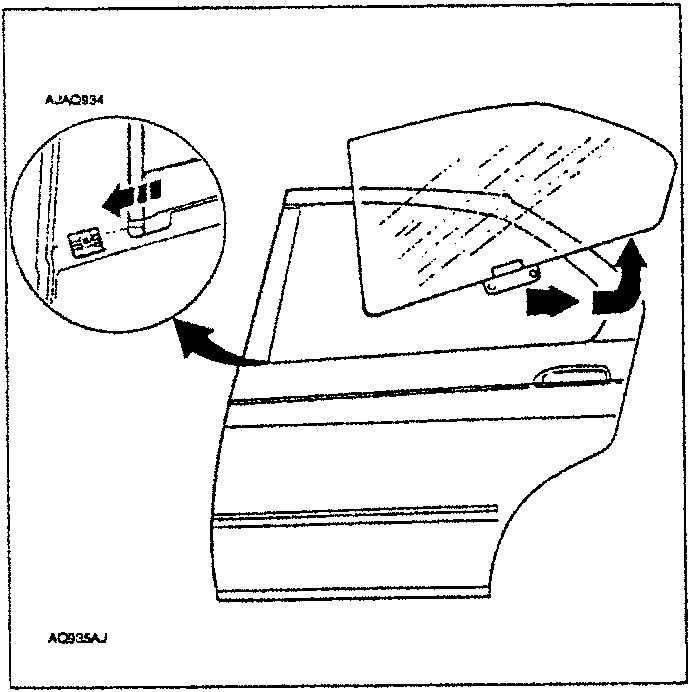

1. Partially lower the window, move it towards the front of the door making use of the space left by the outer moulding and turn it to facilitate its removal from the rear.

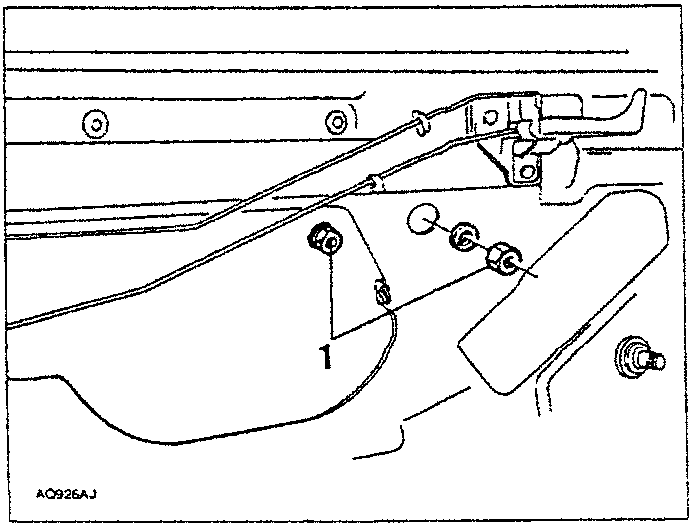

1. Take the window to the "completely raised" position to gain access to the fastening nuts as shown below.

REAR DOOR WINDOW WINDING DEVICE (Electric)

REMOVAL/REFITTING

• Remove the window (see specific paragraph)

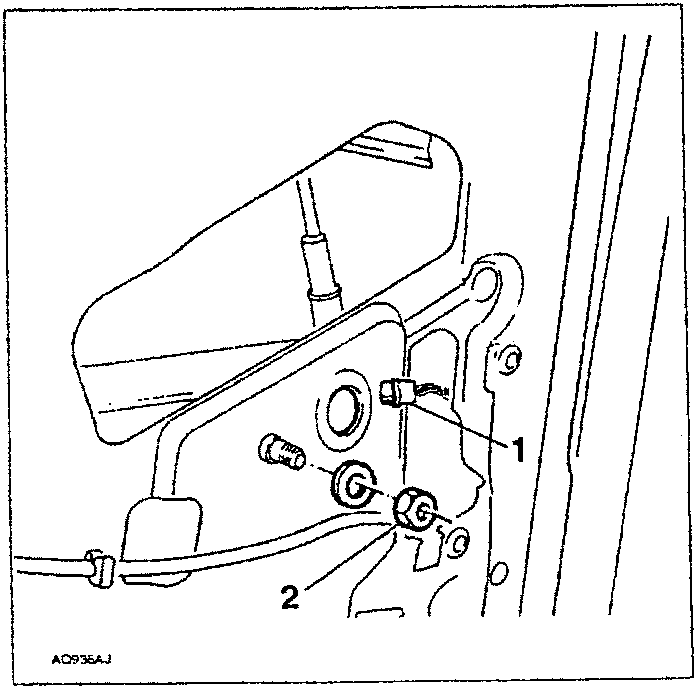

1. Disconnect the electrical connection of the window winding device.
2. Slacken and remove the front nut fastening the window winding device.
