146 bodyworkAdjustment

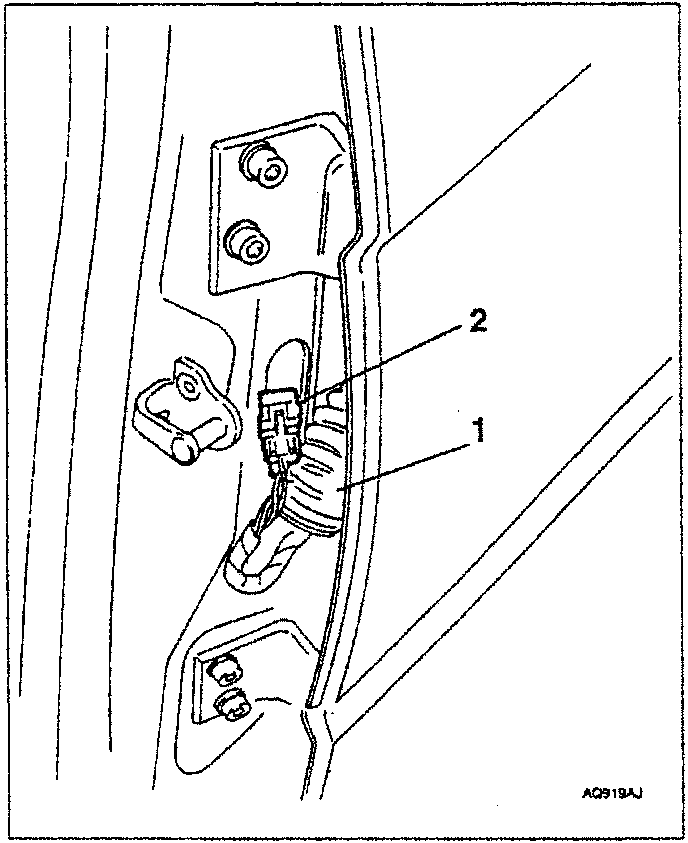

  1. Using tool no. 1.823.014.000 disconnect the cable sleeve from the centre pillar.
  2. Disconnect the electrical connection.
Diagram showing electrical connection and cable sleeve disconnection

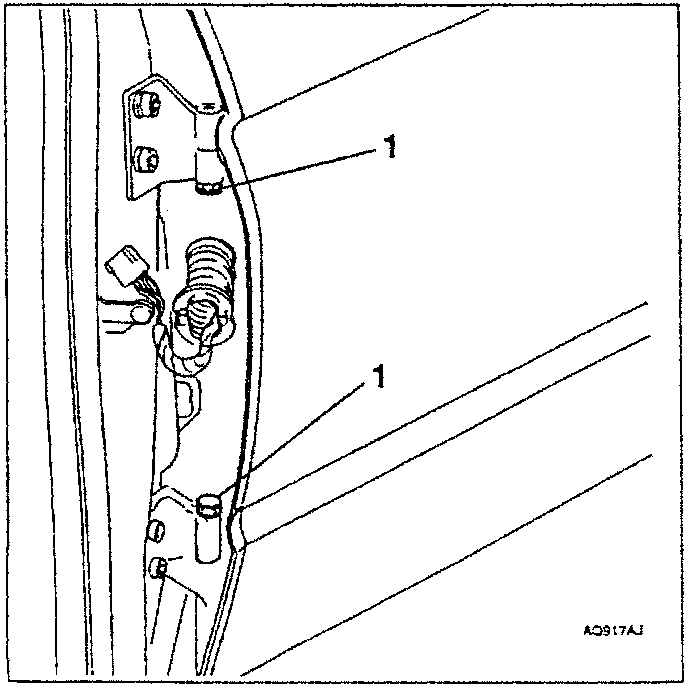

  1. Slacken the two screws fastening the door to the hinges.
  2. Raise the door until the taper pins of the hinges are removed from their housings, then remove the door.
Diagram showing hinge screws and door removal

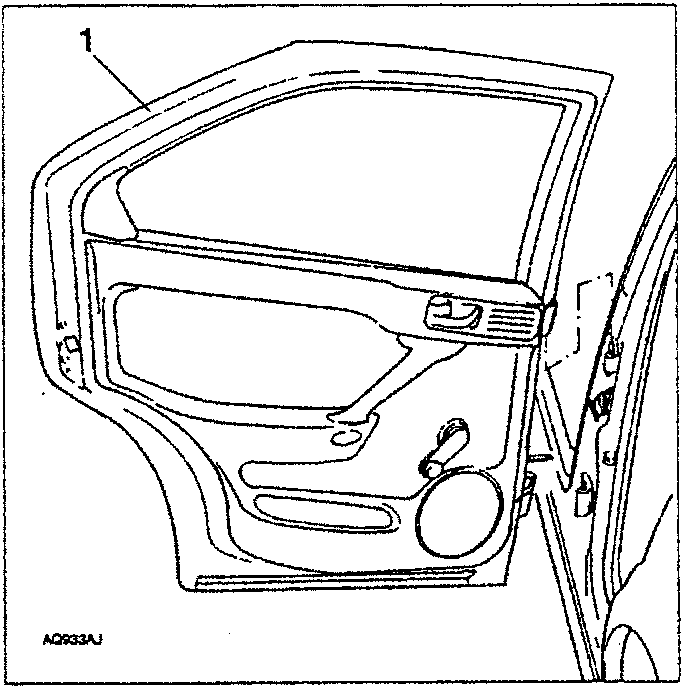

Diagram showing door open position

ADJUSTMENT

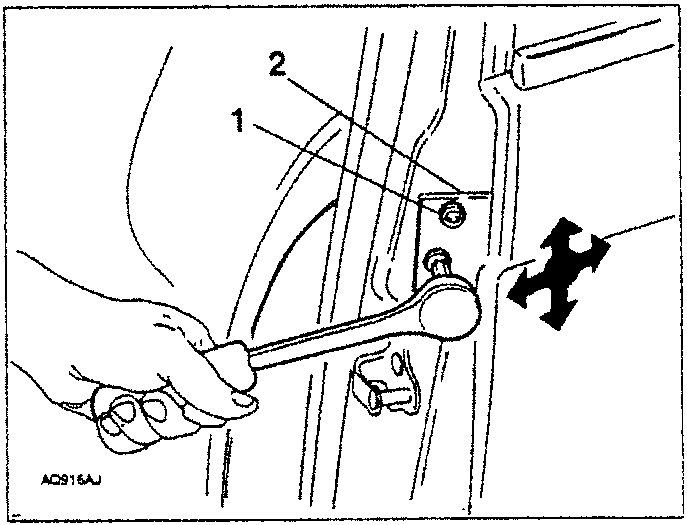

  1. Slacken the screws fastening the hinges to the body and adjust the height and longitudinal alignment.
  2. If necessary place suitable shims under the hinges to adjust the position of the door.
Diagram showing hinge adjustment with wrench

REAR DOOR LOCK STRIKER

REMOVAL/REFITTING

  1. Slacken the two fastening screws and remove the striker.

ADJUSTMENT

  • Slacken the door striker fastening screws and adjust the striker until the door closes correctly, then tighten the screws.
  • If necessary place suitable shims under the striker to adjust door closing.
