146 bodyworkRear door window

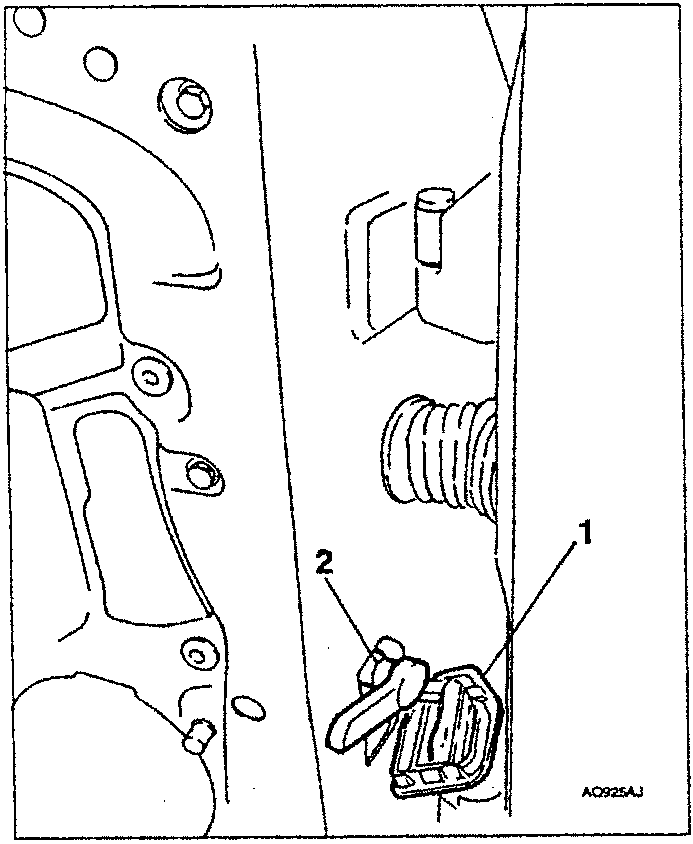

  1. Remove the protective rubber.
  2. Slacken the two check rod fastening screws.
Diagram showing check rod and fastening screws

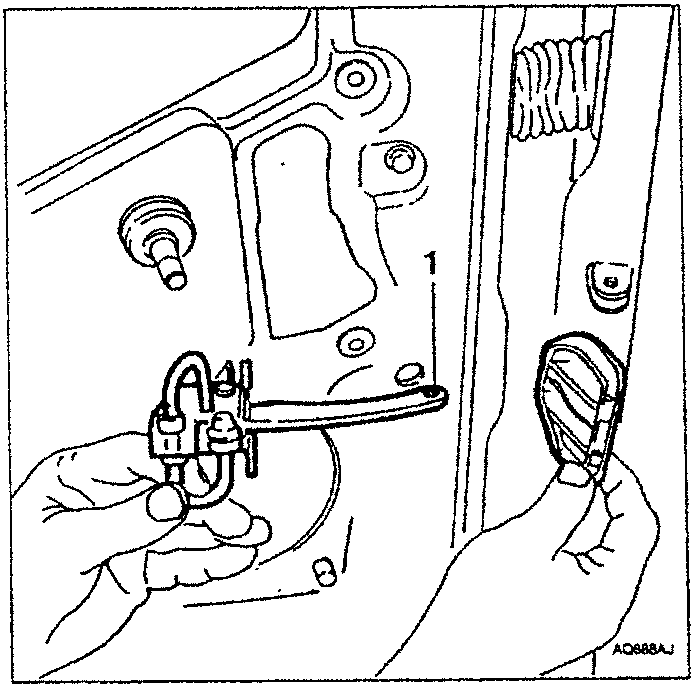

  1. Remove the check rod from the inner side of the door.
Diagram showing hands removing check rod

When refitting, reverse the procedure followed for removal, observing the following:

  • Before refitting the door check rod, treat the area on which it rests with Primer.
  • If the glue of the opaline is no longer able to warrant perfect adhesion, change it.

REAR DOOR WINDOW

REMOVAL/REFITTING

  • Remove the door panel (see specific paragraph)

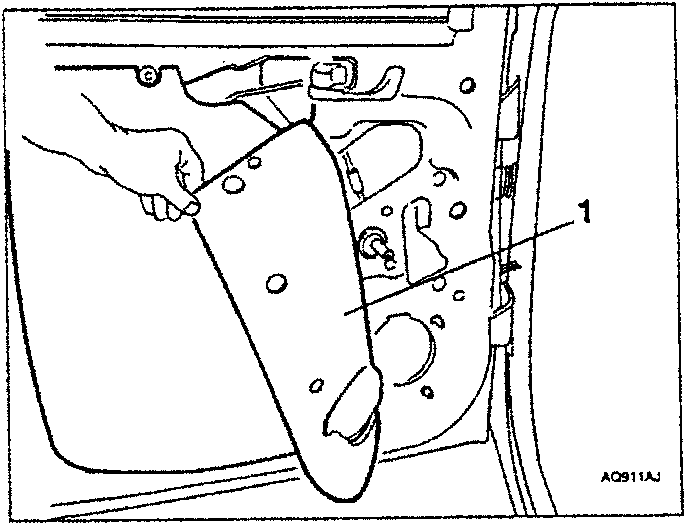

  1. Completely remove the opaline from the door taking care not to damage it.
Diagram showing removal of opaline

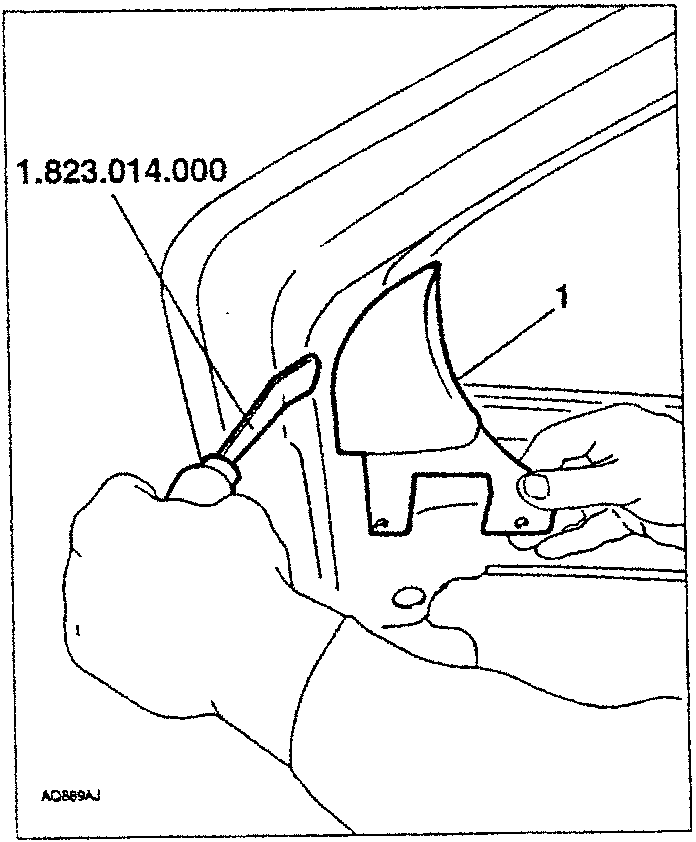

  1. Slacken the two screws and remove the corner frame of the rear door, if necessary with the help of tool 1.823.014.000.
Diagram showing removal of corner frame with tool
  1. Remove the inner glass moulding.
