146 bodyworkRear door inner handle

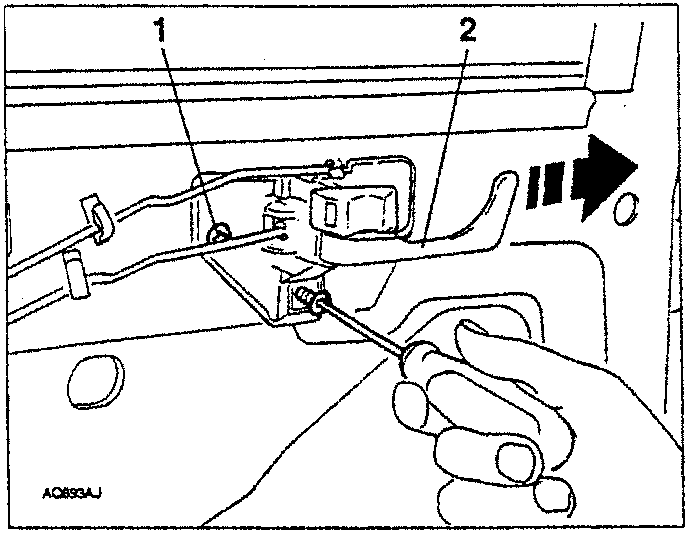

  1. Slacken and remove the remaining 2 screws fastening the inner door opening handle.
  2. Slide the handle towards the front of the car to free the rods.
Diagram showing hand using screwdriver on two screws labeled 1 and 2, with an arrow indicating sliding motion forward

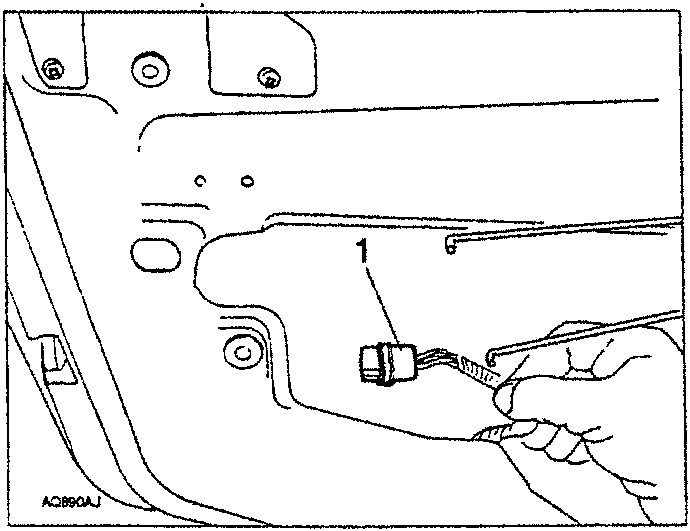

  1. Disconnect the electrical connections from the lock device.
Diagram showing hand disconnecting a multi-pin electrical connector labeled 1

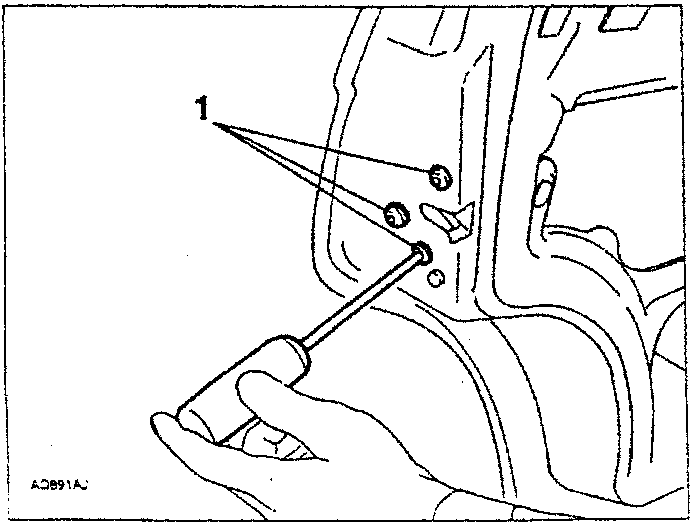

  1. Slacken the three lock fastening screws.
Diagram showing hand using screwdriver on three screws labeled 1, with arrows indicating direction of turning

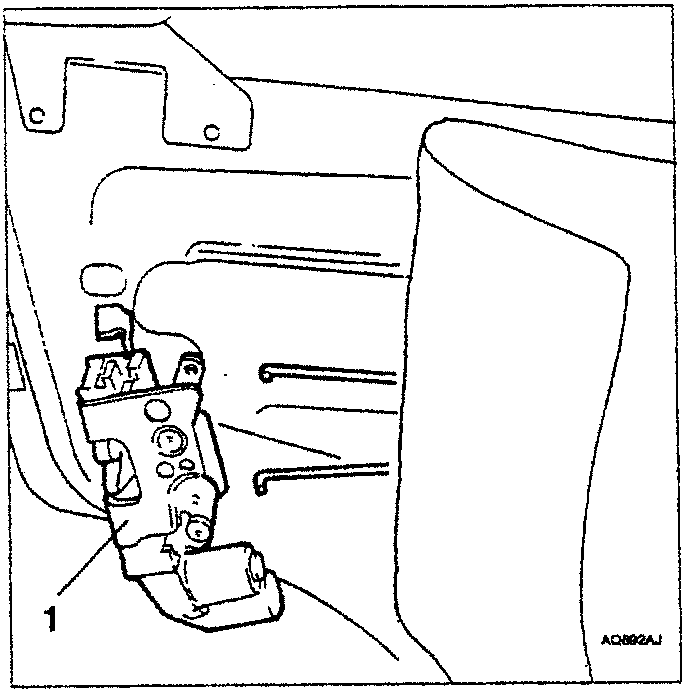

  1. Turn the lock to facilitate freeing, release the outer handle rod and remove the lock from the inner door.
Diagram showing lock mechanism with a handle rod and a hand releasing it

REAR DOOR INNER HANDLE

REMOVAL/REFITTING

  • Remove the door inner panel (see specific paragraph).
  • Partially set aside the opaline taking care not to damage it.

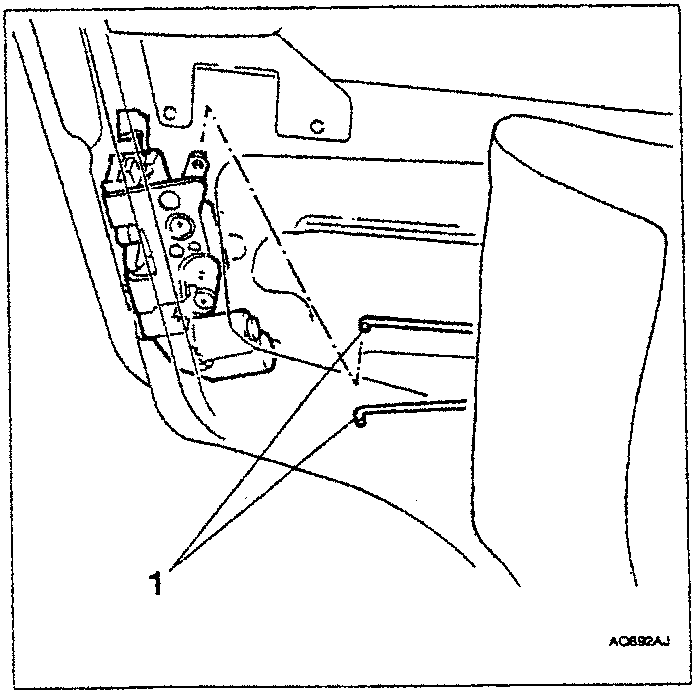

  1. Disconnect the lock opening and locking rods.
Diagram showing lock mechanism with rods disconnected, labeled 1
  1. Slacken and remove the remaining two screws fastening the inner door opening handle.
