Rear door front window guide

REAR DOOR FRONT WINDOW GUIDE

REMOVAL/REFITTING

• Remove the inner door panel (see specific paragraph).
• Partially move aside the opaline taking care not to damage it.
• Raise the glass completely.

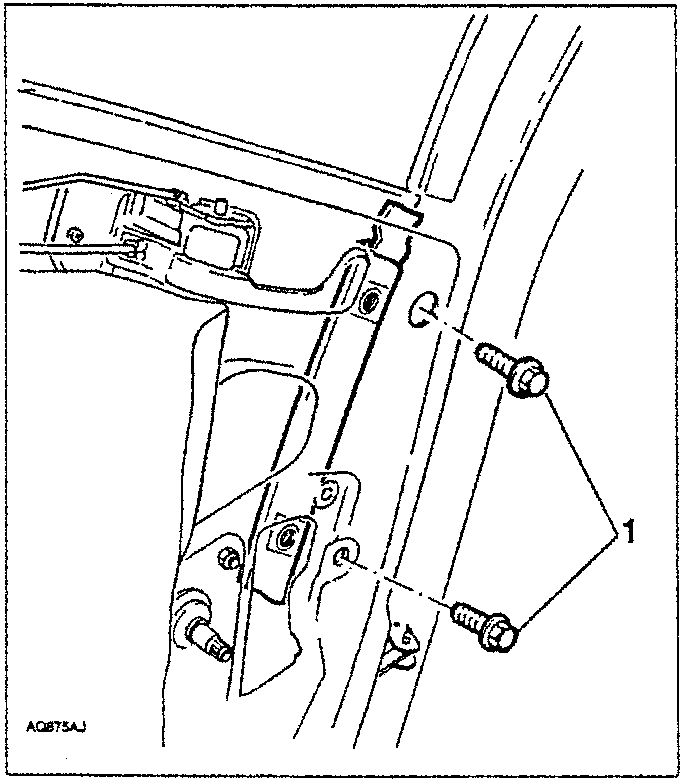

1. Slacken the two front glass guide fastening screws.

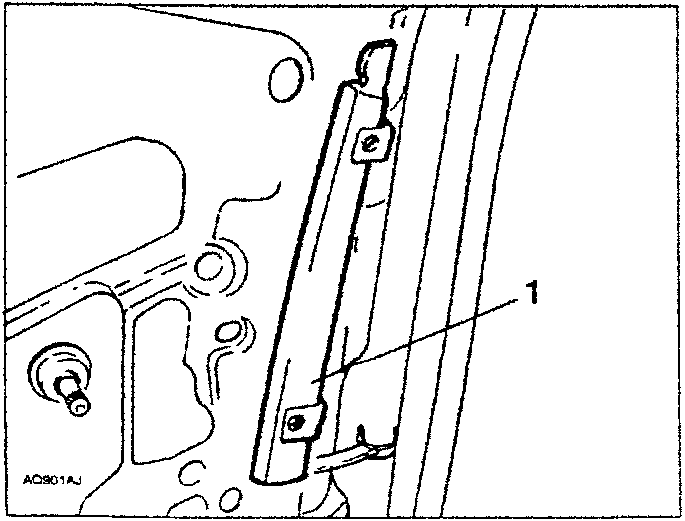

1. Remove the door window front guide. If necessary separate the moulding from the door window front guide.

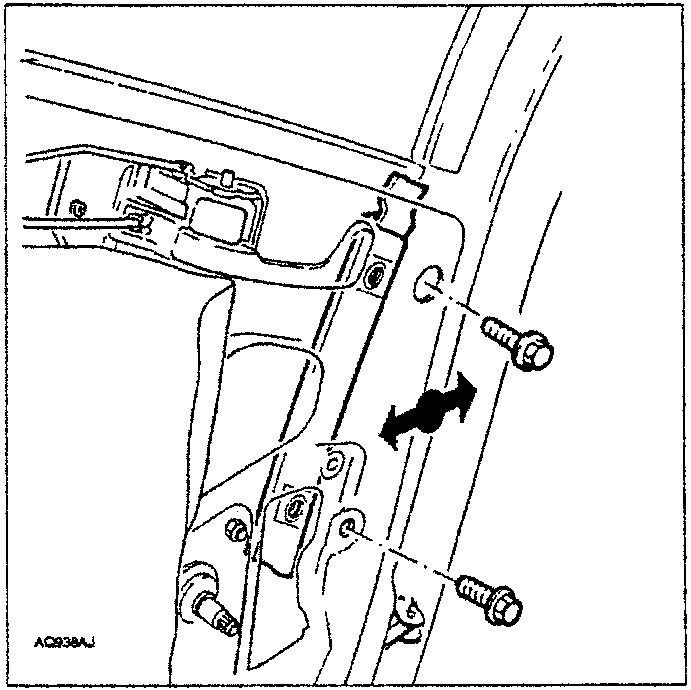

When assembling, lower the window completely and adjust the position of the guide so that it is perfectly in contact with the glass, then lock the fastening screws (see figure).

REAR DOOR LOCK DEVICE

REMOVAL/REFITTING

• Remove the door inner panel (see specific paragraph).
• Partially set aside the opaline taking care not to damage it.

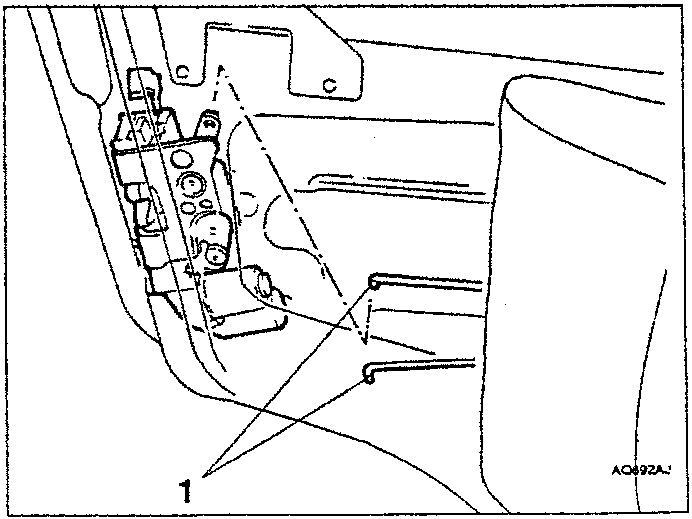

1. Disconnect the lock opening and locking rods.
