Doors › Disassembly
146 bodyworkDisassembly · page 1 of 2

NOTE: only on cars fitted with manually-operated window winder:

  1. Remove the catch clip.
  2. Remove the window winder handle.

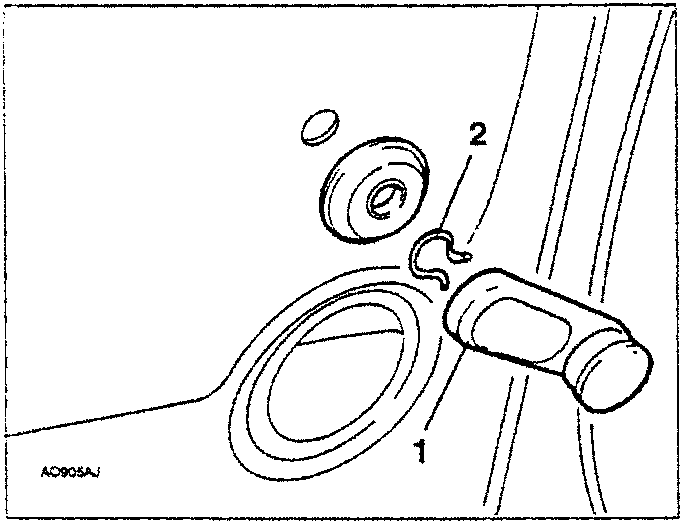

Diagram showing removal of window winder handle and catch clip.
  1. Using tool no. 1.823.015.000 detach the panel from the plastic nails illustrated and remove it.

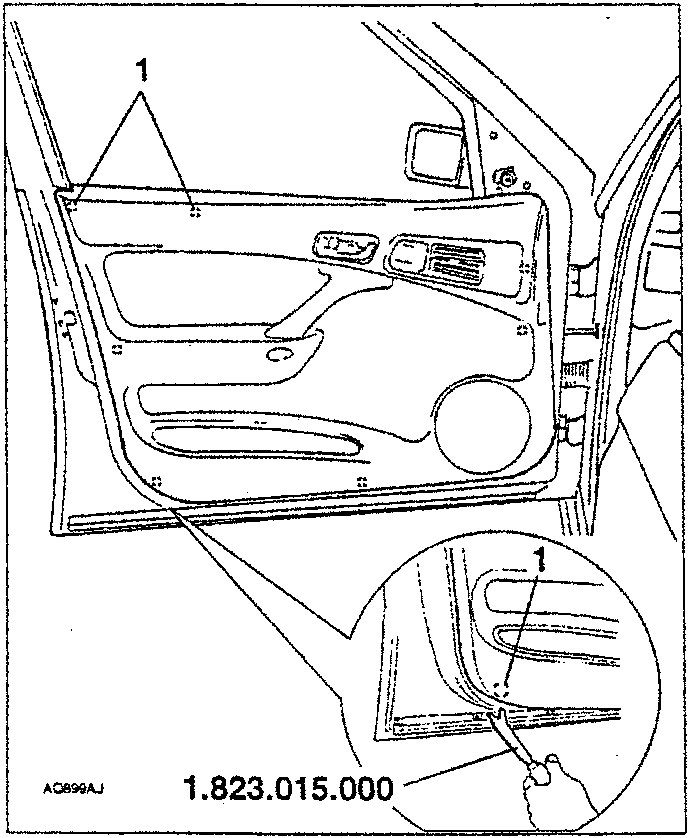

Diagram showing use of tool 1.823.015.000 to detach panel from plastic nails.

DISASSEMBLY

  1. Slacken the four fastening screws.

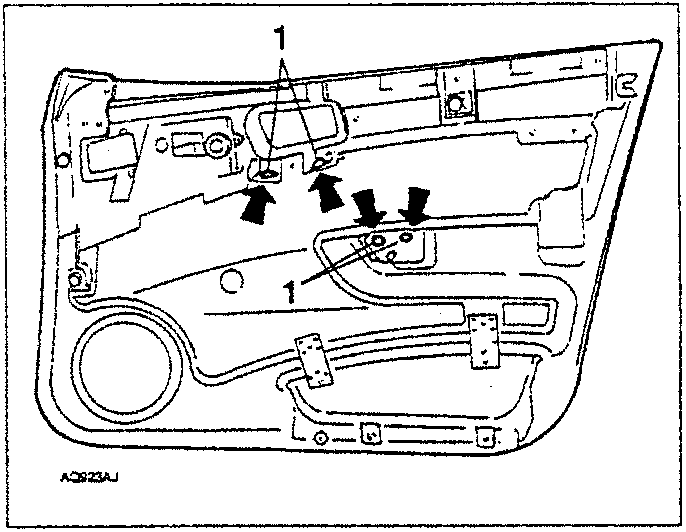

Diagram showing removal of armrest handle by pulling it upwards.
  1. Remove the armrest handle pulling it upwards.

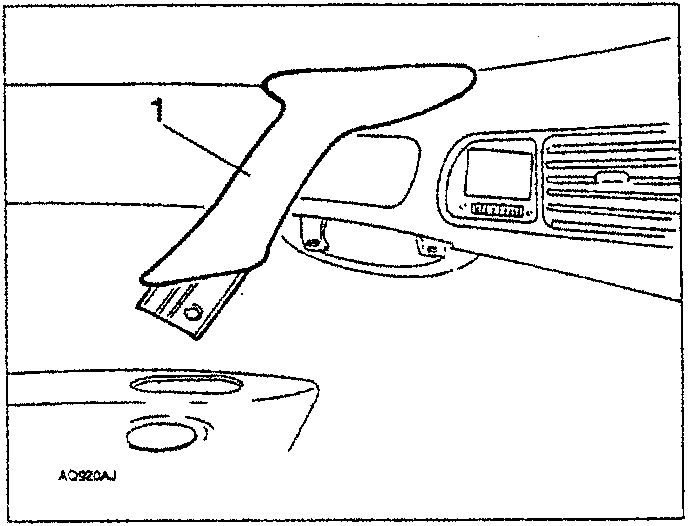

Diagram showing utility compartment with four rear screws to be slackened.
  1. Slacken the four rear screws fastening the utility compartment.

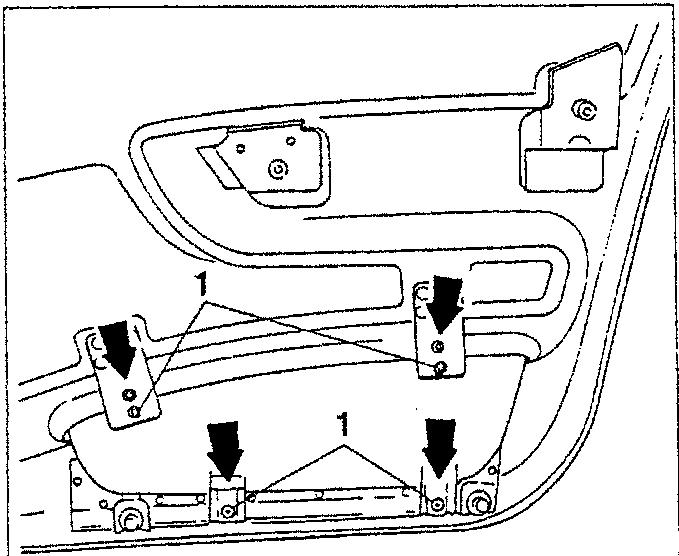

Diagram showing removal of screws from door panel.
