146 bodyworkRear door outer angle plate

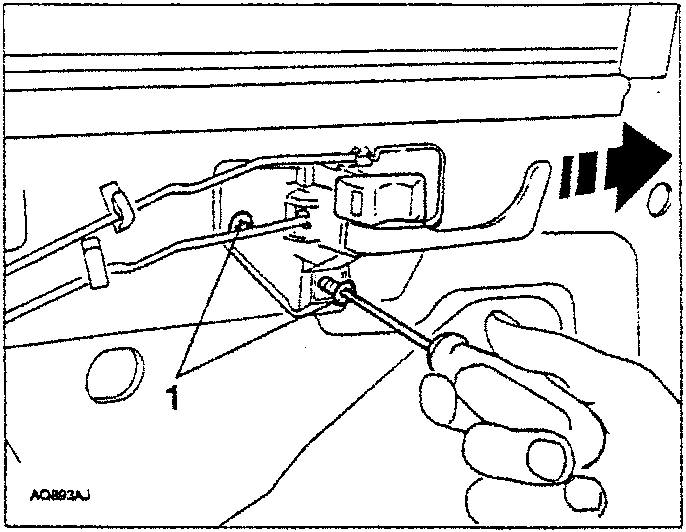

Diagram showing hands using a tool to free rods from fastening clamps and remove inner handle.

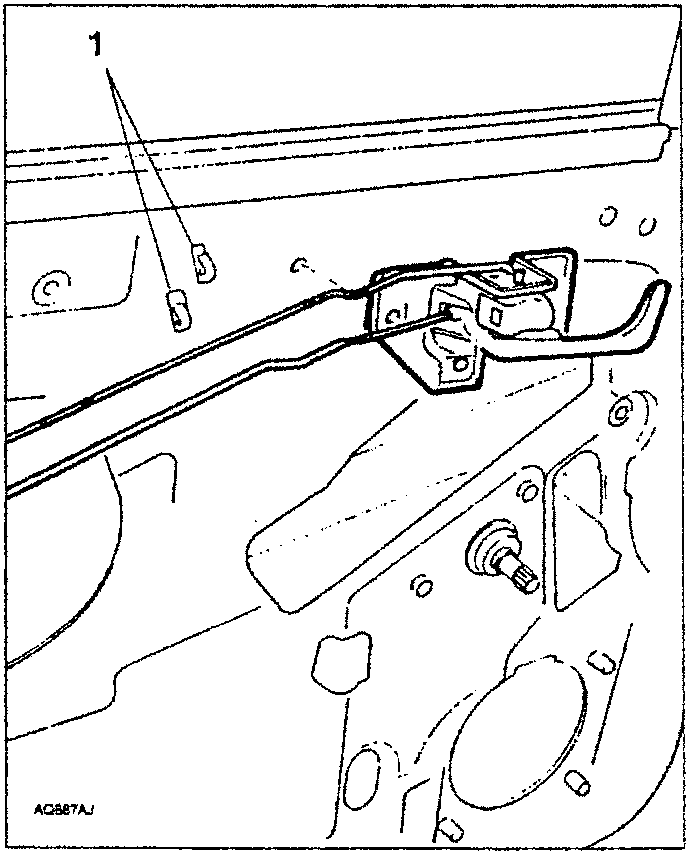

  1. Free the rods from the two fastening clamps and remove the inner handle.

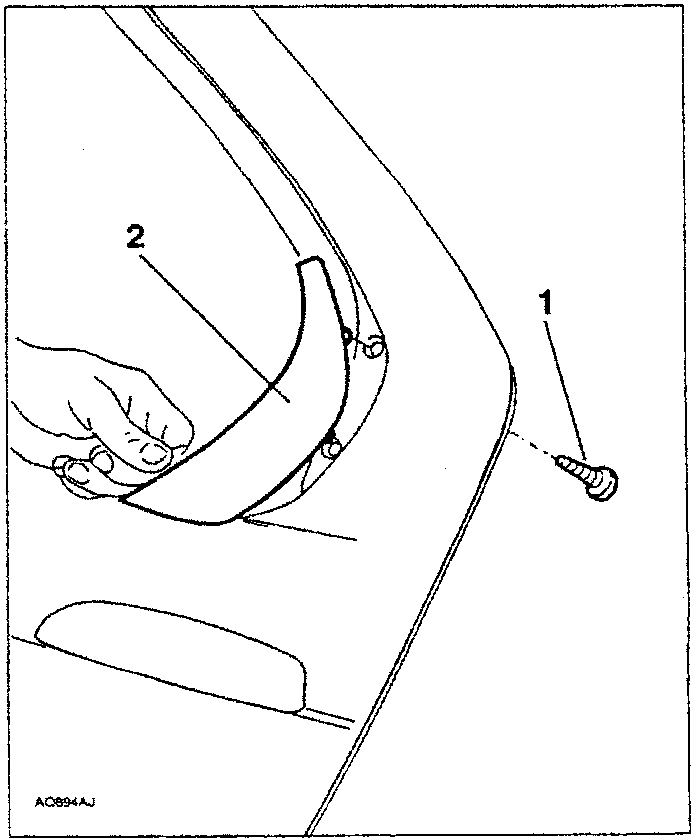

Diagram showing a hand removing a rear door outer angle plate with screws.

REAR DOOR OUTER ANGLE PLATE

REMOVAL/REFITTING

  • Remove the inner door panel (see specific paragraph)
  1. Slacken the two screws and remove the rear door angle plate if necessary with the help of tool no. 1.823.014.000.

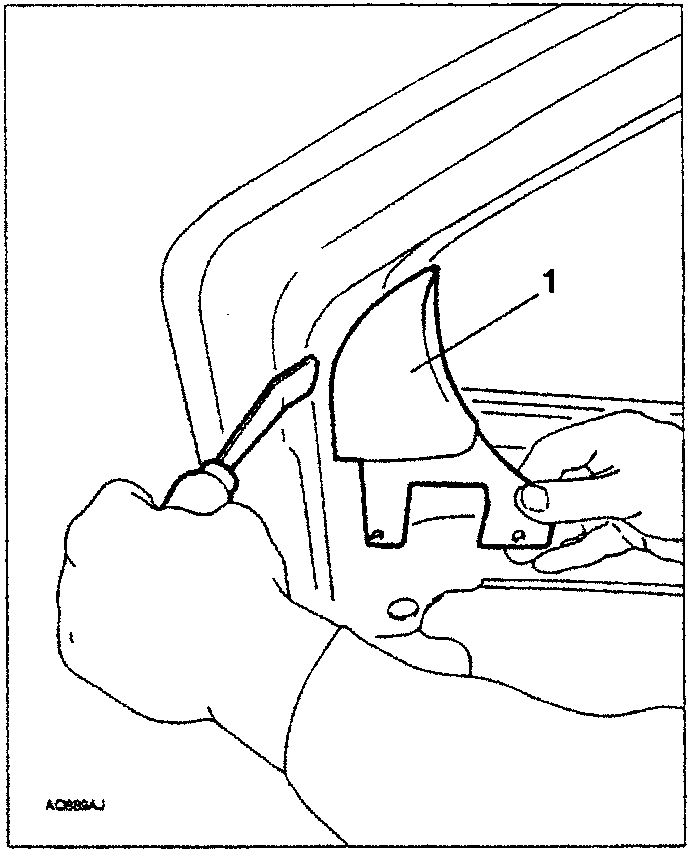

Diagram showing hands using a screwdriver to slacken and remove three screws locking the outer plate, then removing the outer plate.
  1. Slacken and remove the three screws locking the outer plate.
  2. Remove the outer plate.
Diagram showing a hand removing a rear door outer angle plate with screws.
  1. Slacken and remove the two screws and remove the rear door angle plate if necessary with the help of tool no. 1.823.014.000.
