Disassembly

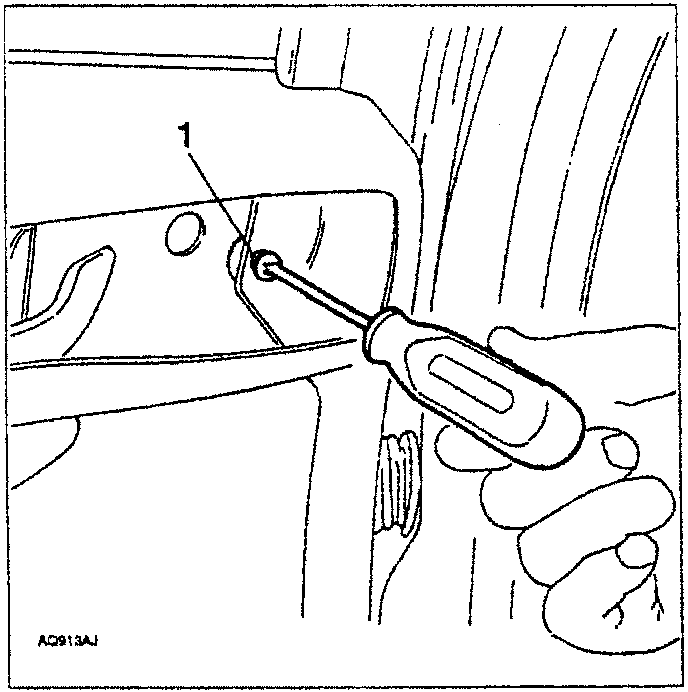

1. Slacken and remove the fastening screw in the door handle plate housing.

NOTA: only on cars fitted with manual window winding device:

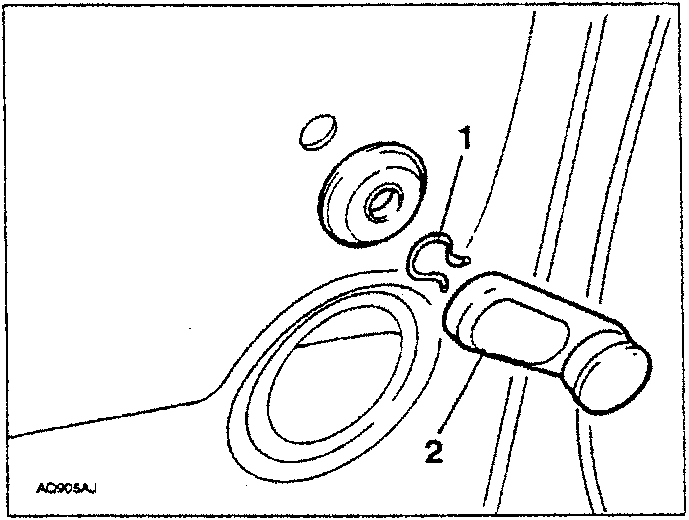

1. Remove the catch clip.
2. Remove the window winder handle.

When refitting:

1. Insert the handle and move the glass to the closed position.
2. Remove the handle.
3. Insert the stay clip on the handle engagement spindle, then definitively insert the handle in its housing, until it catches, aligning it with the armrest.

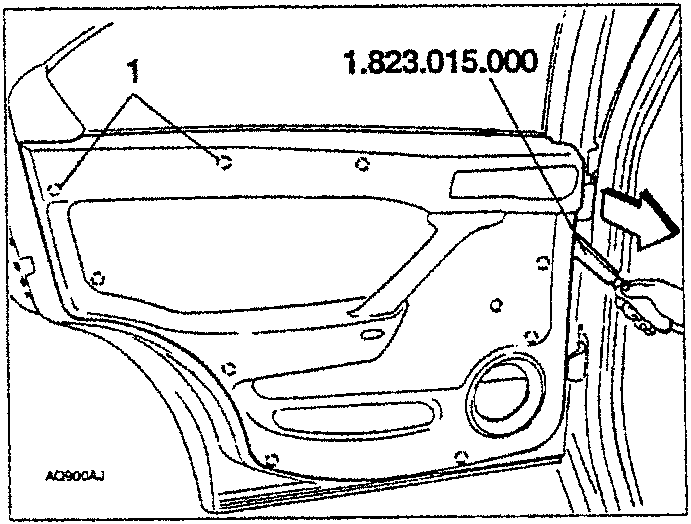

1. Using tool no. 1.823.015.000, detach the panel from the plastic nails illustrated and remove it.

DISASSEMBLY

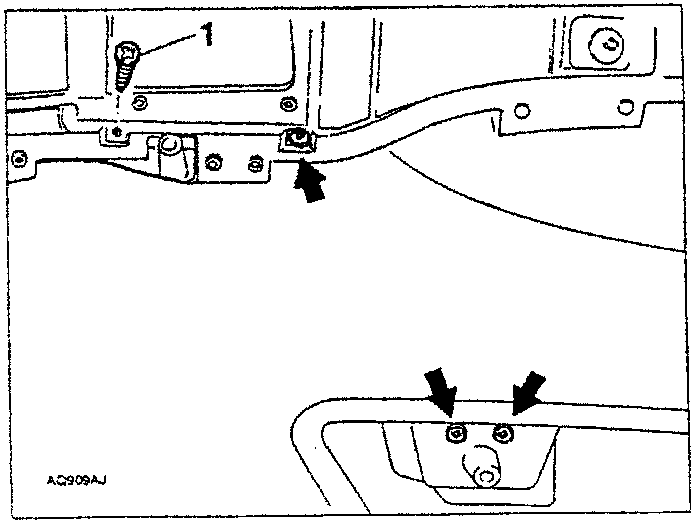

1. Slacken the four rear screws fastening the armrest handle.
