146 bodyworkWING MIRROR (manually - operated) · page 1 of 2

WING MIRROR (manually - operated)

REMOVAL/REFITTING

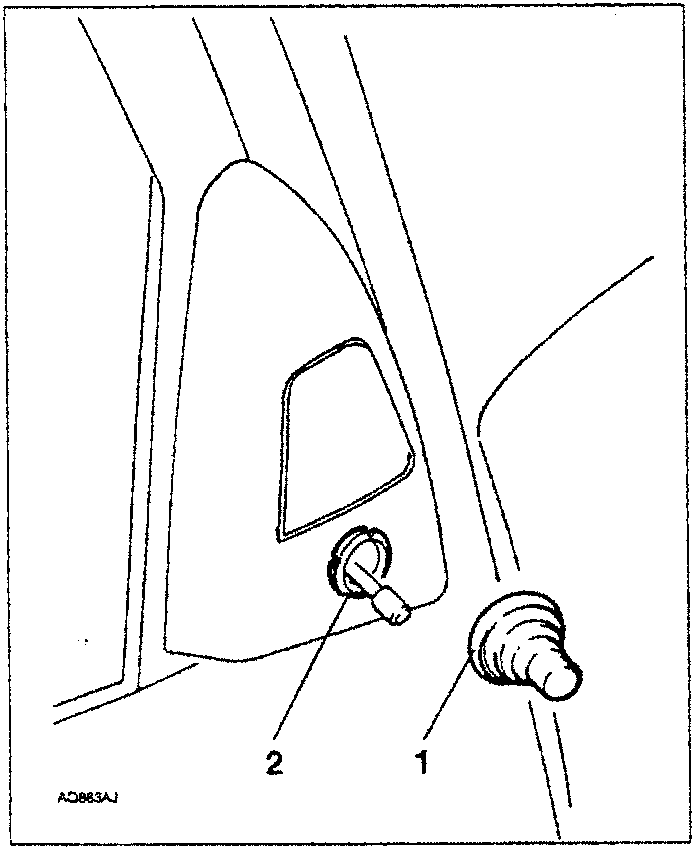

  1. Remove the bellow.
  2. Slacken and remove the plate locknut
Diagram showing two screws labeled 1 and 2 on a door panel

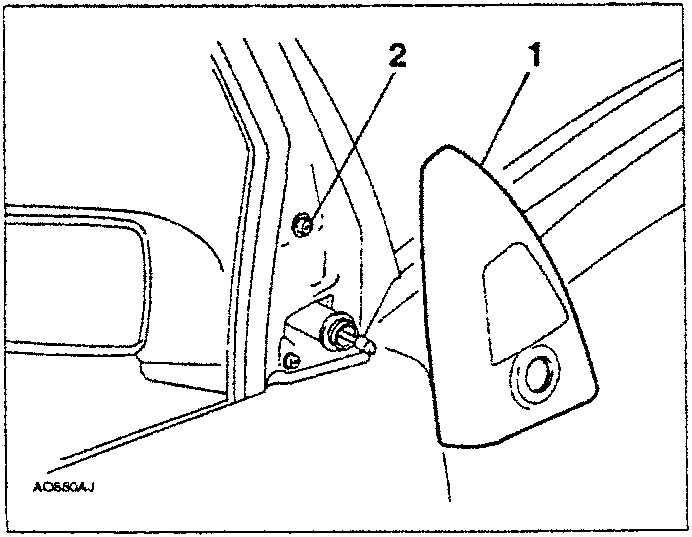

  1. Using knife 1.823.014.000, remove the rearview mirror inner plate.
  2. Slacken the three screws fastening the wing mirror
Diagram showing a wing mirror with two screws labeled 1 and 2

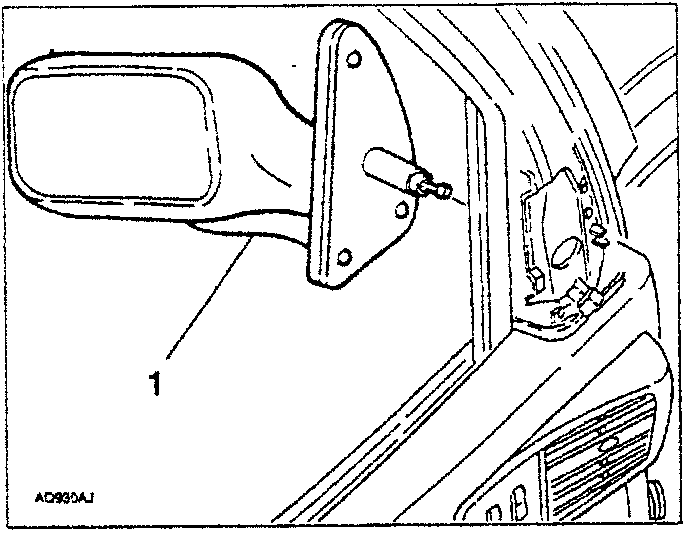

  1. Remove the mirror and seal.

FRONT DOOR PANEL

REMOVAL/REFITTING

  • Disconnect the battery negative terminal (-).
  • Remove the rearview mirror plate (see specific paragraph).

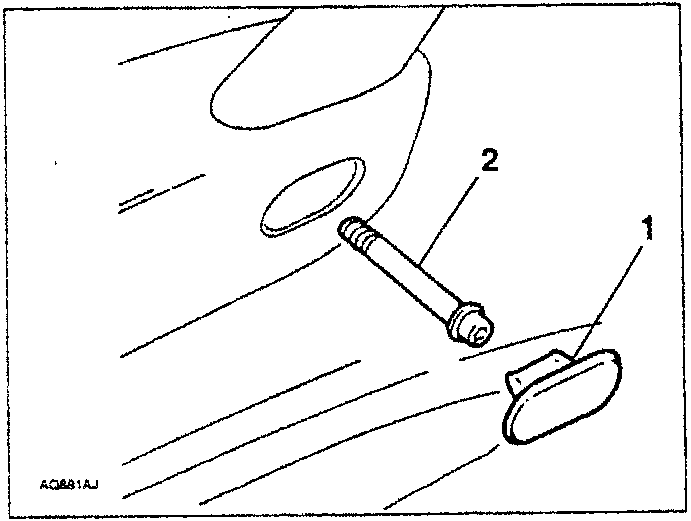

  1. Remove the plastic cap of the armrest grip.
  2. Slacken the fastening screw below.
Car side mirror assembly mounting diagram
Diagram showing a screw labeled 1 and a plastic cap labeled 2

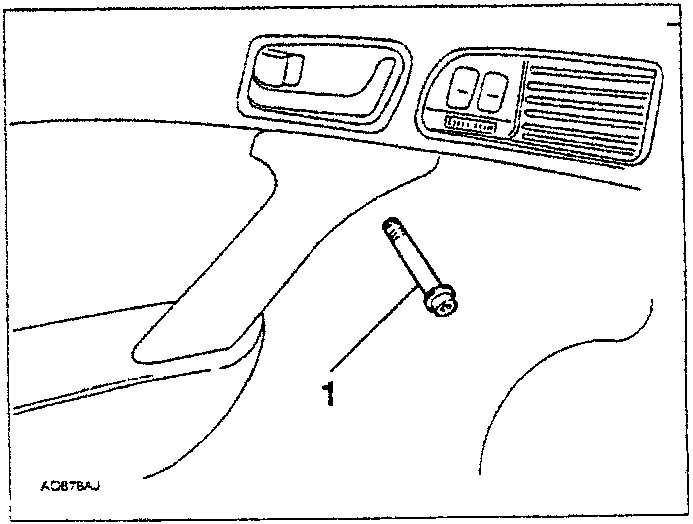

  1. Slacken the upper fastening screw.
Diagram showing a screw labeled 1 on a door panel with controls
