Alfa Romeo 145/146 Engines, 146 Bodywork and Engine Overhaul Manual (1994-2001)04 · 146 bodywork
04 · Body & interior

Rear door check rod

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Doors › Rear door check rod
146 bodyworkRear door check rod

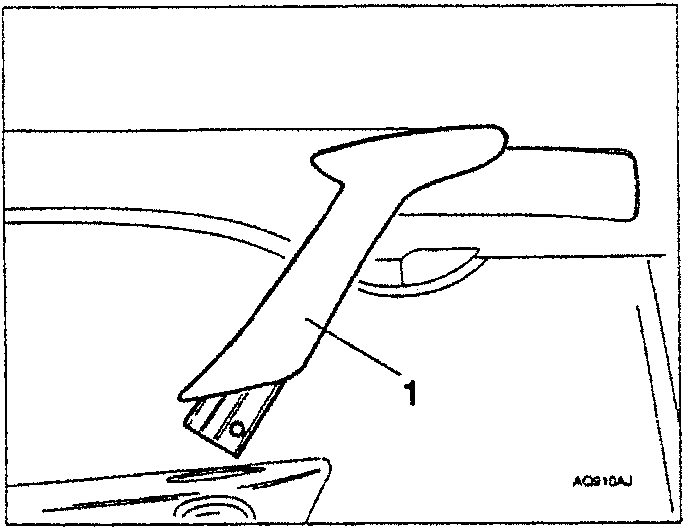

  1. Remove the armrest handle pulling it upwards.
Armrest handle being pulled upwards

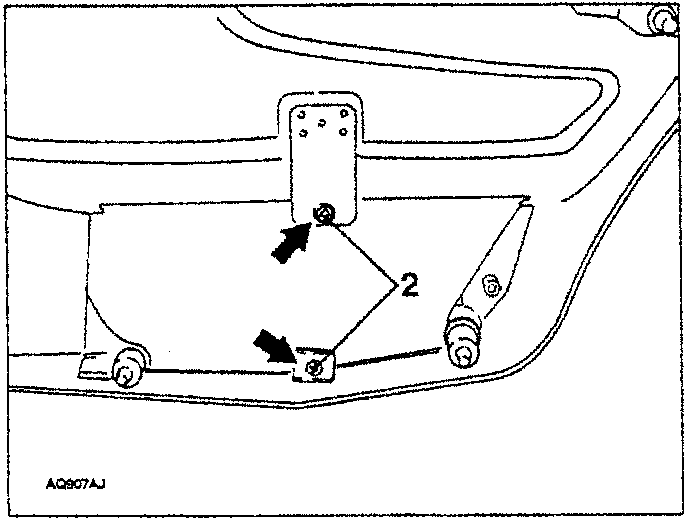

  1. Slacken the two rear screws fastening the utility compartment.
Two screws being slackened on utility compartment

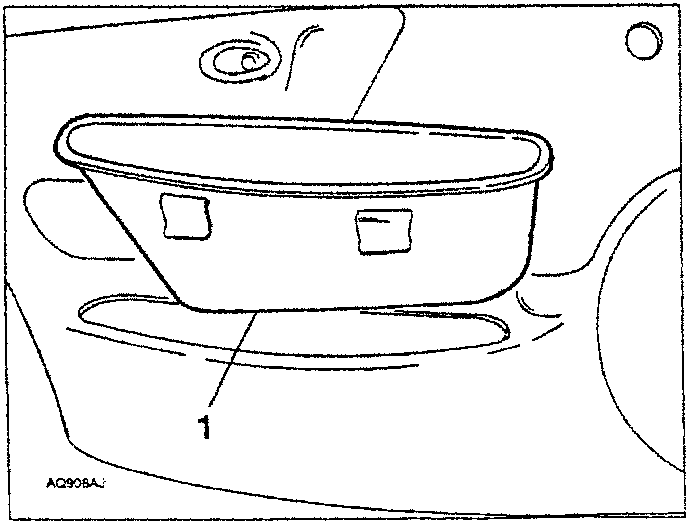

  1. Remove the utility compartment pulling it upwards.
Utility compartment being pulled upwards

REAR DOOR CHECK ROD

REMOVAL/REFITTING

  • Remove the door panel (see specific paragraph)

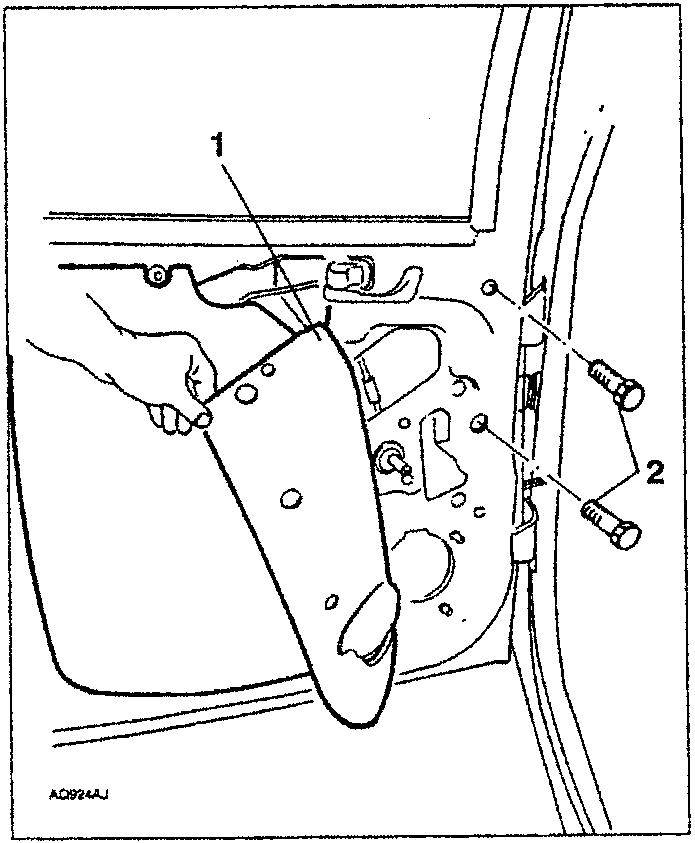

  1. Partially detach the opaline from the door taking care not to damage it.
  2. Slacken and remove the two screws fastening the door window front guide and move it aside as necessary.
Door panel with opaline partially detached and screws removed

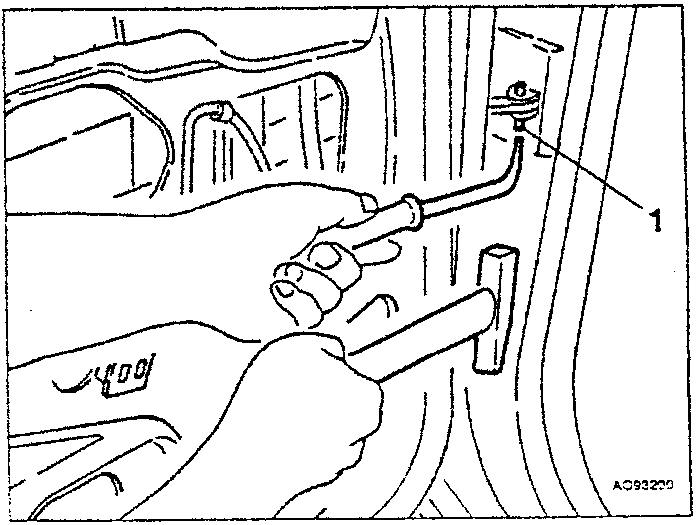

  1. Using a suitable tool, pull and remove the door check rod, half close the door to push it back in, then open the door again.
Door check rod being pulled out with tool
