REAR DOOR WINDOW WINDING DEVICE (Manual)

Make
Alfa Romeo
Model
145/146 Engines, 146 Bodywork and Engine Overhaul Manual
Year
1994–2001
Section
Doors › REAR DOOR WINDOW WINDING DEVICE (Manual)
146 bodyworkREAR DOOR WINDOW WINDING DEVICE (Manual)
  1. Slacken the two rear nuts fastening the device to the glass.
  2. Release the catch clip of the window control cable.

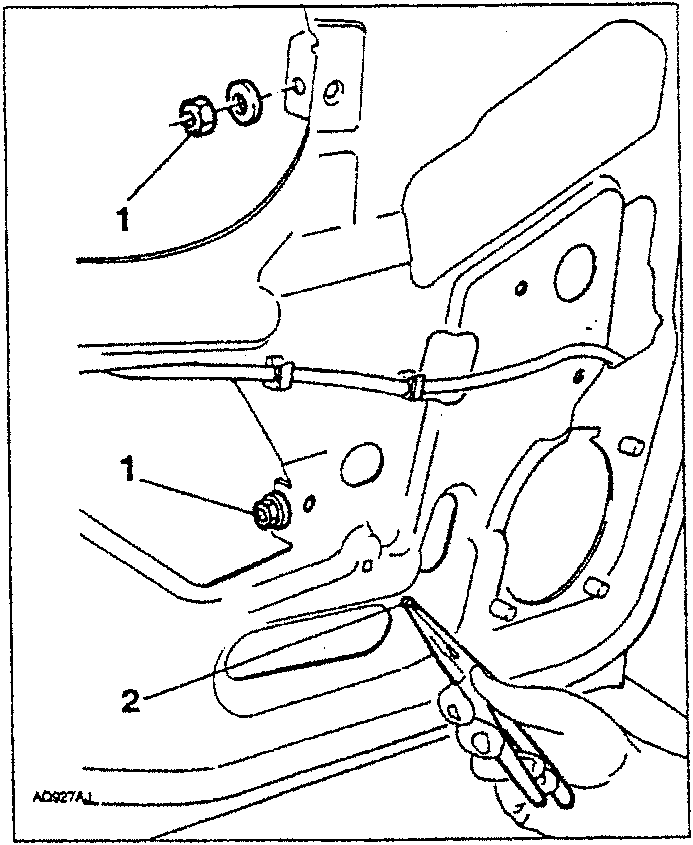

Diagram showing tools removing nuts from window winding device
  1. From inside the door panel, remove the window winding device, pulling from the large hole towards the rear of the door.

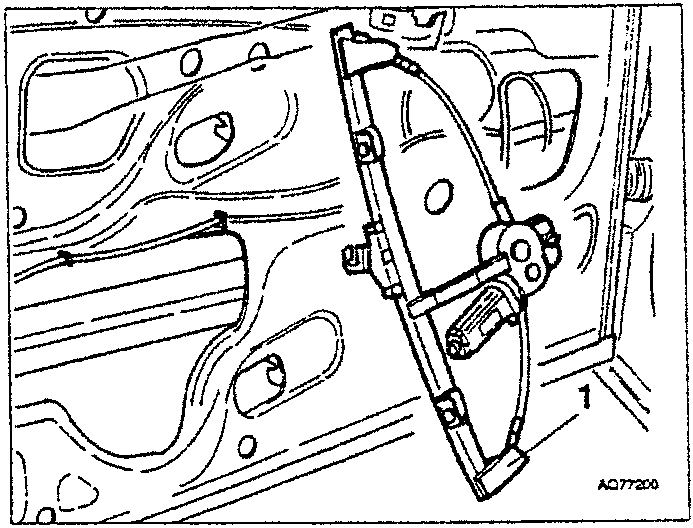

Diagram showing window winding device being pulled out from inside door panel

When refitting the window winding device, reverse the procedure described for removal and adjust the position as illustrated.

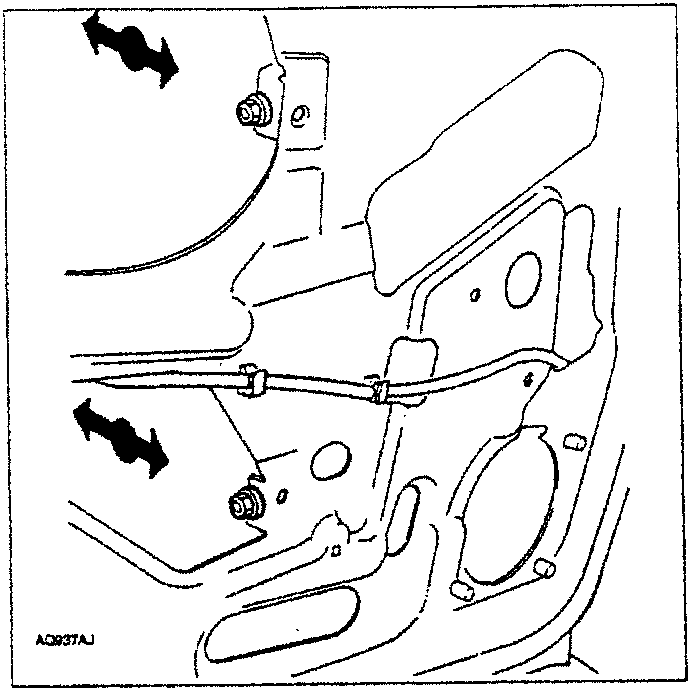

Diagram showing releasing catch clip of window control cable

REAR DOOR WINDOW WINDING DEVICE (Manual)

REMOVAL/REFITTING

  • Remove the window (see specific paragraph).
  1. Slacken and remove the three nuts fastening the window winding device.

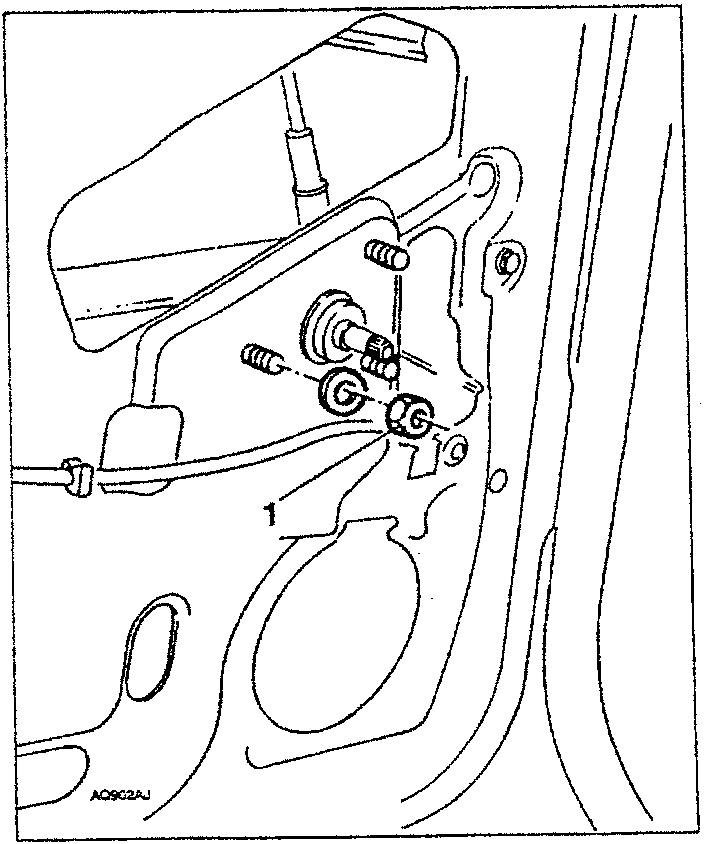

Diagram showing nuts fastening window winding device
  • Continue removal, and subsequent refitting following the procedures described previously for the electric window winding device (see specific paragraph).
