146 bodyworkFRONT DOOR WINDOW WINDER (Manual)

FRONT DOOR WINDOW WINDER (Manual)

REMOVAL/REFITTING

  • Remove the glass (see specific paragraph).

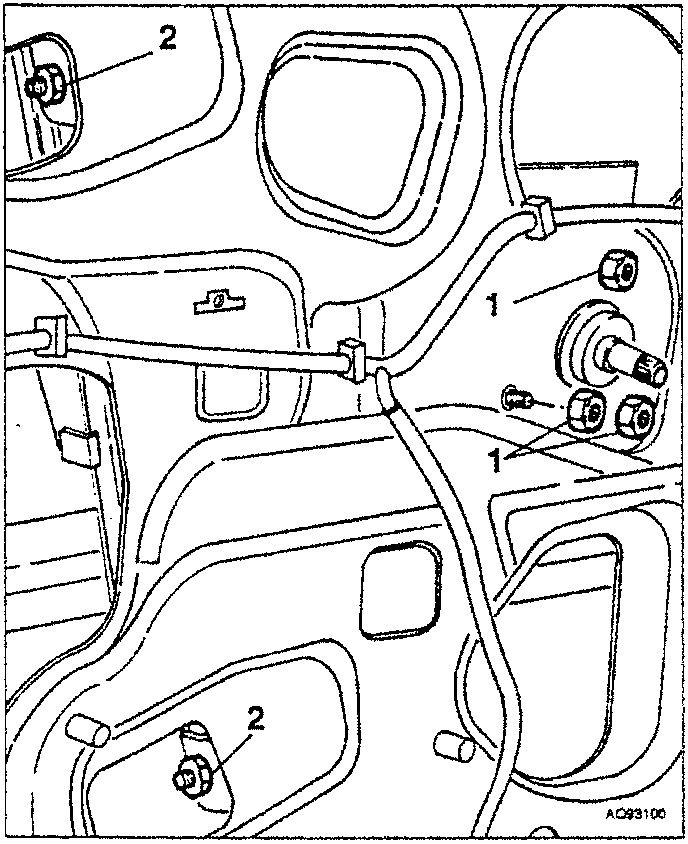

  1. Slacken and remove the three fastening nuts.
  2. Slacken the two rear nuts fastening the window winding device.
Diagram showing nuts 1 and 2 on a door panel with wiring and mechanisms.

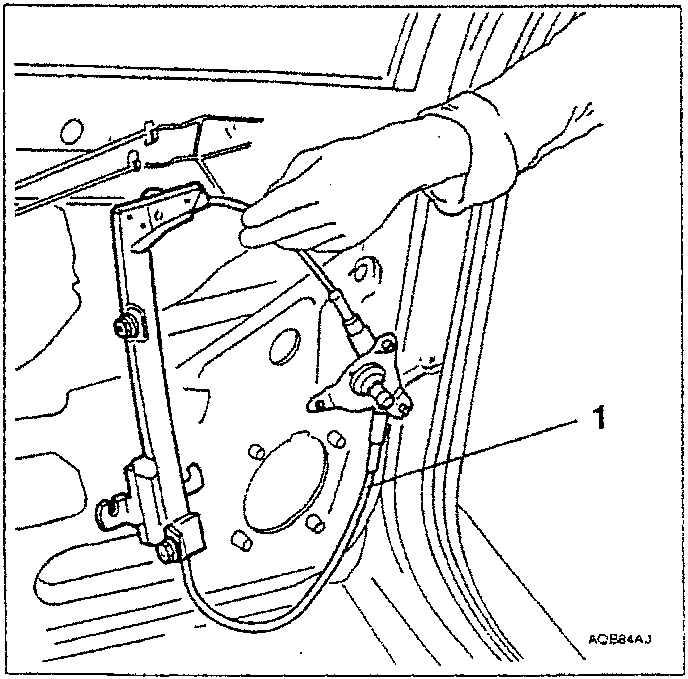

  1. Pull and remove the window winder from inside the door.
Diagram showing a hand pulling out a window winder mechanism labeled 1.

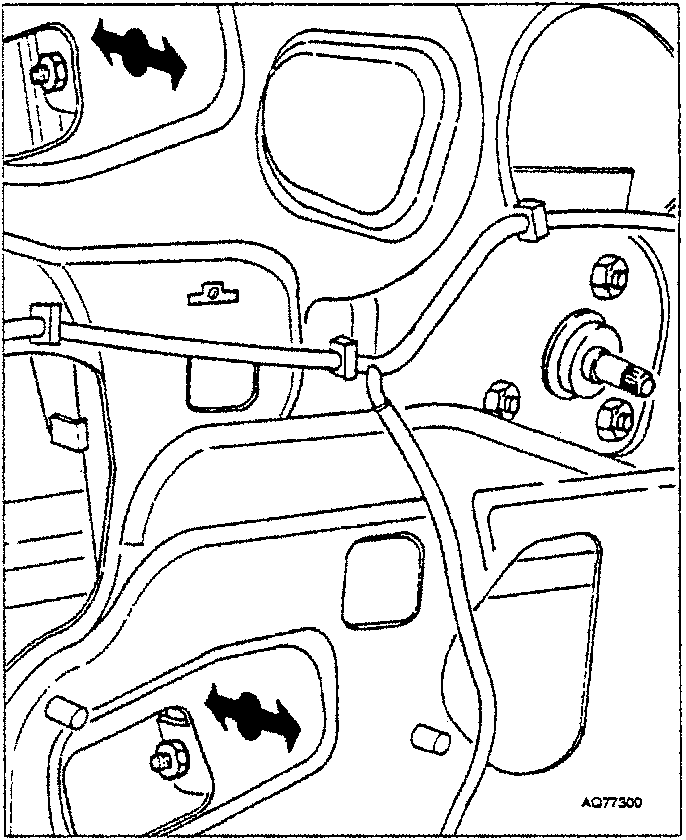

Refit the window winder reversing the sequence followed for removal taking care to adjust its position as shown below.

Diagram showing arrows indicating adjustment of the window winder position.

REAR DOORS

REMOVAL/REFITTING

NOTA: during removal and refitting operations avoid damaging the paintwork.

  • Disconnect the battery negative (-) terminal.

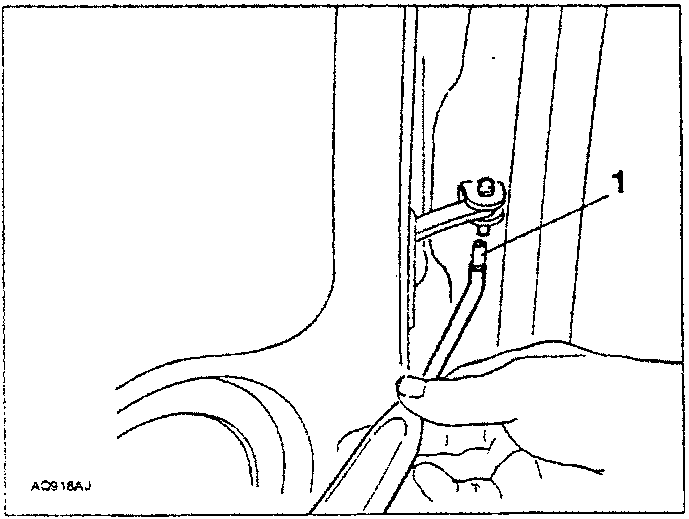

  1. Using a suitable tool, withdraw and remove the door check rod pin, half close the door to make the check rod go in, then open it.
Diagram showing a hand removing a door check rod pin labeled 1.
